DocID024597 Rev 5 411/1830
RM0351 Cyclic redundancy check calculation unit (CRC)
415
15.3 CRC functional description
15.3.1 CRC block diagram

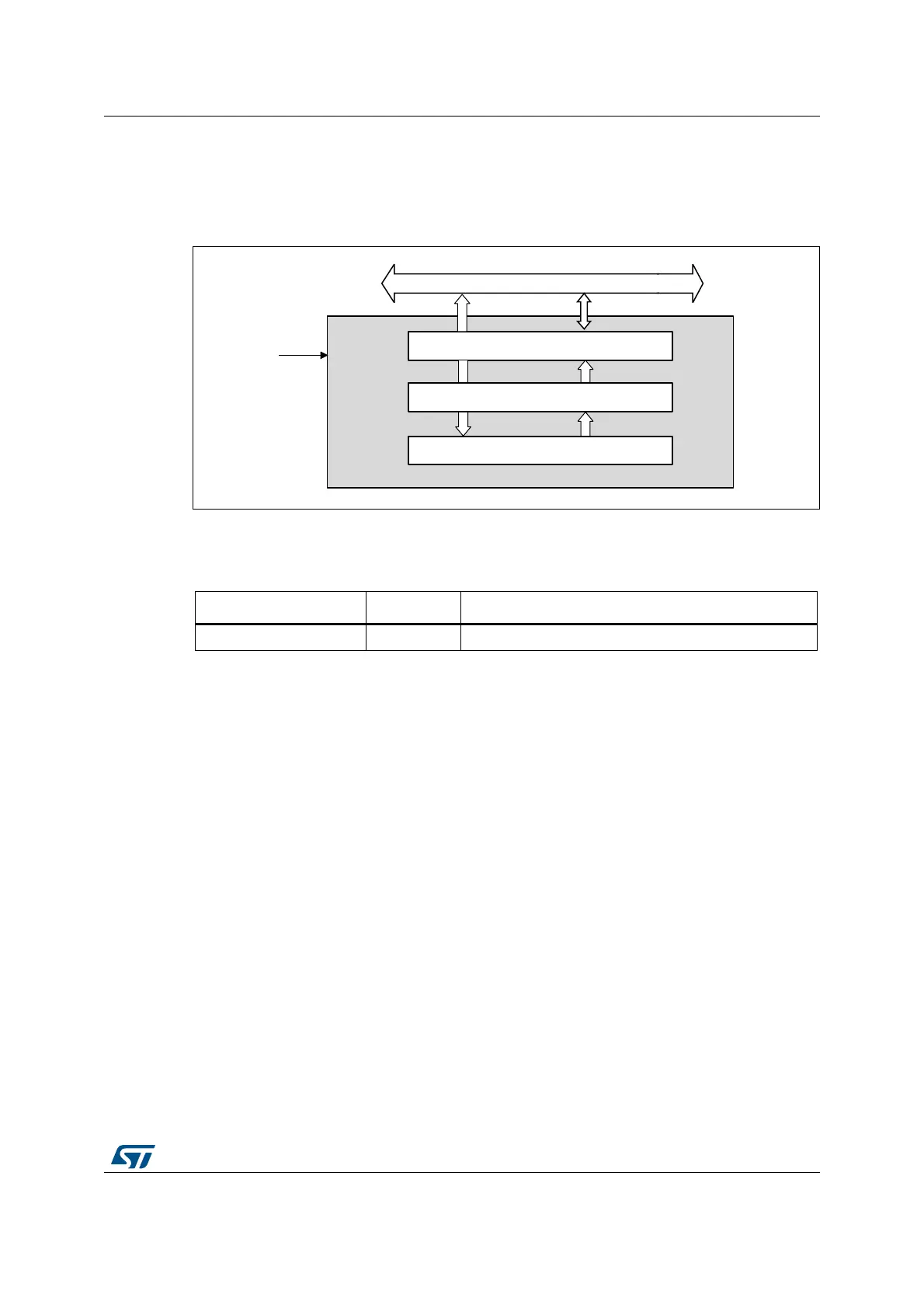

Figure 35. CRC calculation unit block diagram
15.3.2 CRC internal signals
15.3.3 CRC operation
The CRC calculation unit has a single 32-bit read/write data register (CRC_DR). It is used to
input new data (write access), and holds the result of the previous CRC calculation (read
access).
Each write operation to the data register creates a combination of the previous CRC value
(stored in CRC_DR) and the new one. CRC computation is done on the whole 32-bit data
word or byte by byte depending on the format of the data being written.
The CRC_DR register can be accessed by word, right-aligned half-word and right-aligned
byte. For the other registers only 32-bit access is allowed.
The duration of the computation depends on data width:
• 4 AHB clock cycles for 32-bit
• 2 AHB clock cycles for 16-bit
• 1 AHB clock cycles for 8-bit
An input buffer allows to immediately write a second data without waiting for any wait states
due to the previous CRC calculation.
The data size can be dynamically adjusted to minimize the number of write accesses for a
given number of bytes. For instance, a CRC for 5 bytes can be computed with a word write
followed by a byte write.
D^ϭϵϴϴϮsϮ
'DWDUHJLVWHURXWSXW
ELWUHDGDFFHVV
'DWDUHJLVWHULQSXW
ELWZULWHDFFHVV
ELW$+%EXV
FUFBKFON
&5&FRPSXWDWLRQ
Table 60. CRC internal input/output signals
Signal name Signal type Description
crc_hclk Digital input AHB clock
