Flexible static memory controller (FSMC) RM0351
440/1830 DocID024597 Rev 5
Muxed mode - multiplexed asynchronous access to NOR Flash memory

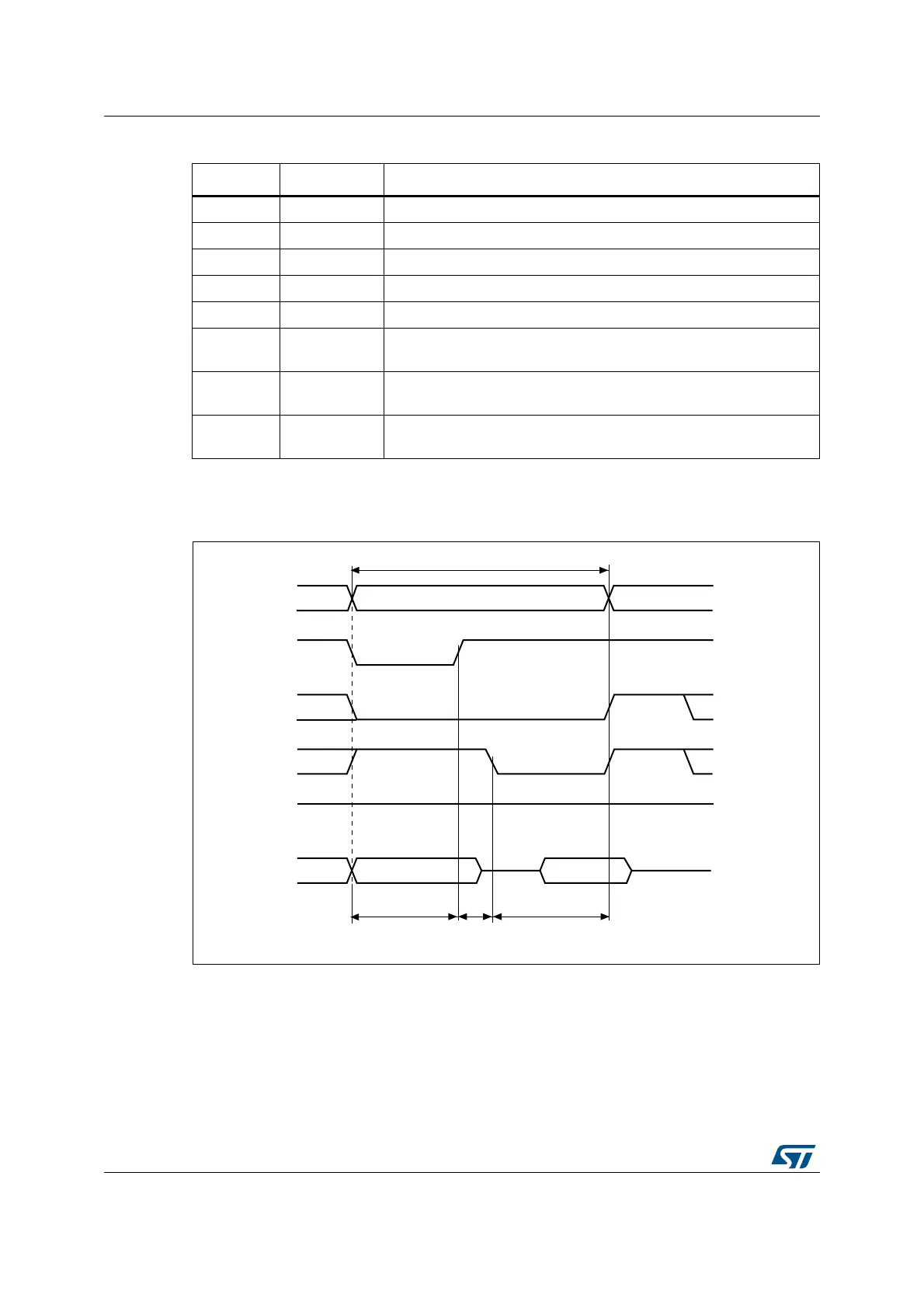

Figure 49. Muxed read access waveforms
Table 85. FMC_BWTRx bit fields
Bit number Bit name Value to set
31:30 Reserved 0x0
29:28 ACCMOD 0x3
27:24 DATLAT Don’t care
23:20 CLKDIV Don’t care
19:16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK).
15:8 DATAST
Duration of the second access phase (DATAST + 1 HCLK cycles) for
write accesses.
7:4 ADDHLD
Duration of the middle phase of the write access (ADDHLD HCLK
cycles)
3:0 ADDSET
Duration of the first access phase (ADDSET HCLK cycles) for write
accesses. Minimum value for ADDSET is 1.
!;=
./%
!$$3%4 $!4!34
-EMORYTRANSACTION
.%X
!$;=
(#,+CYCLES (#,+CYCLES
.7%
.!$6
DATADRIVEN
BYMEMORY
AI
(IGH
!$$(,$
(#,+CYCLES
,OWERADDRESS
