Universal synchronous asynchronous receiver transmitter (USART) RM0351
1316/1830 DocID024597 Rev 5

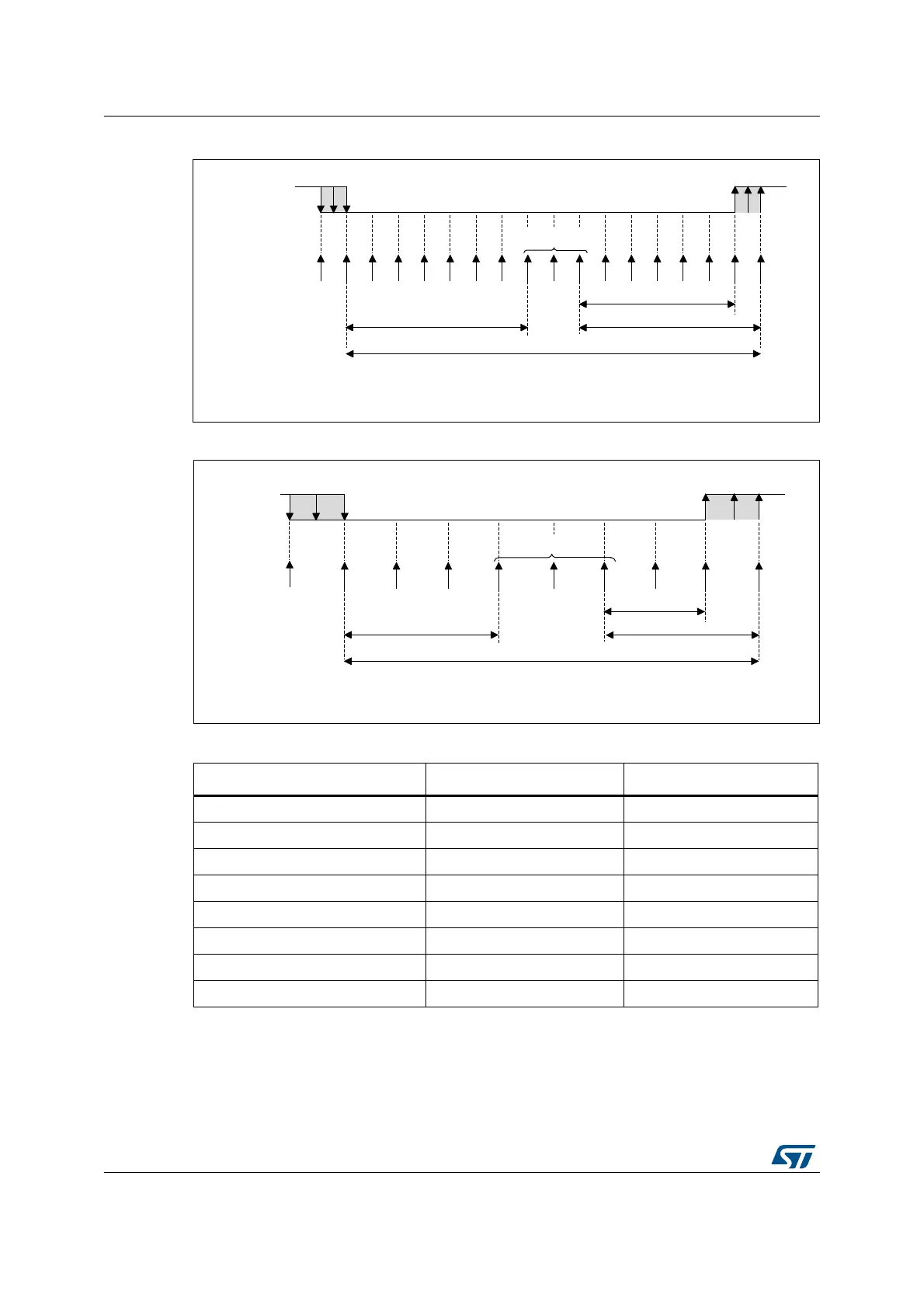

Figure 411. Data sampling when oversampling by 16
Figure 412. Data sampling when oversampling by 8
Table 233. Noise detection from sampled data
Sampled value NE status Received bit value
000 0 0
001 1 0
010 1 0
011 1 1
100 1 0
101 1 1
110 1 1
111 0 1
06Y9
               
VDPSOHGYDOXHV


2QHELWWLPH
6DPSOHFORFN
5;OLQH
06Y9
      
VDPSOHGYDOXHV



2QHELWWLPH
6DPSOH
FORFN[
5;OLQH

