Inter-integrated circuit (I2C) interface RM0351
1236/1830 DocID024597 Rev 5
Data and addresses are transferred as 8-bit bytes, MSB first. The first byte(s) following the
START condition contain the address (one in 7-bit mode, two in 10-bit mode). The address
is always transmitted in Master mode.
A 9th clock pulse follows the 8 clock cycles of a byte transfer, during which the receiver must
send an acknowledge bit to the transmitter. Refer to the following figure.

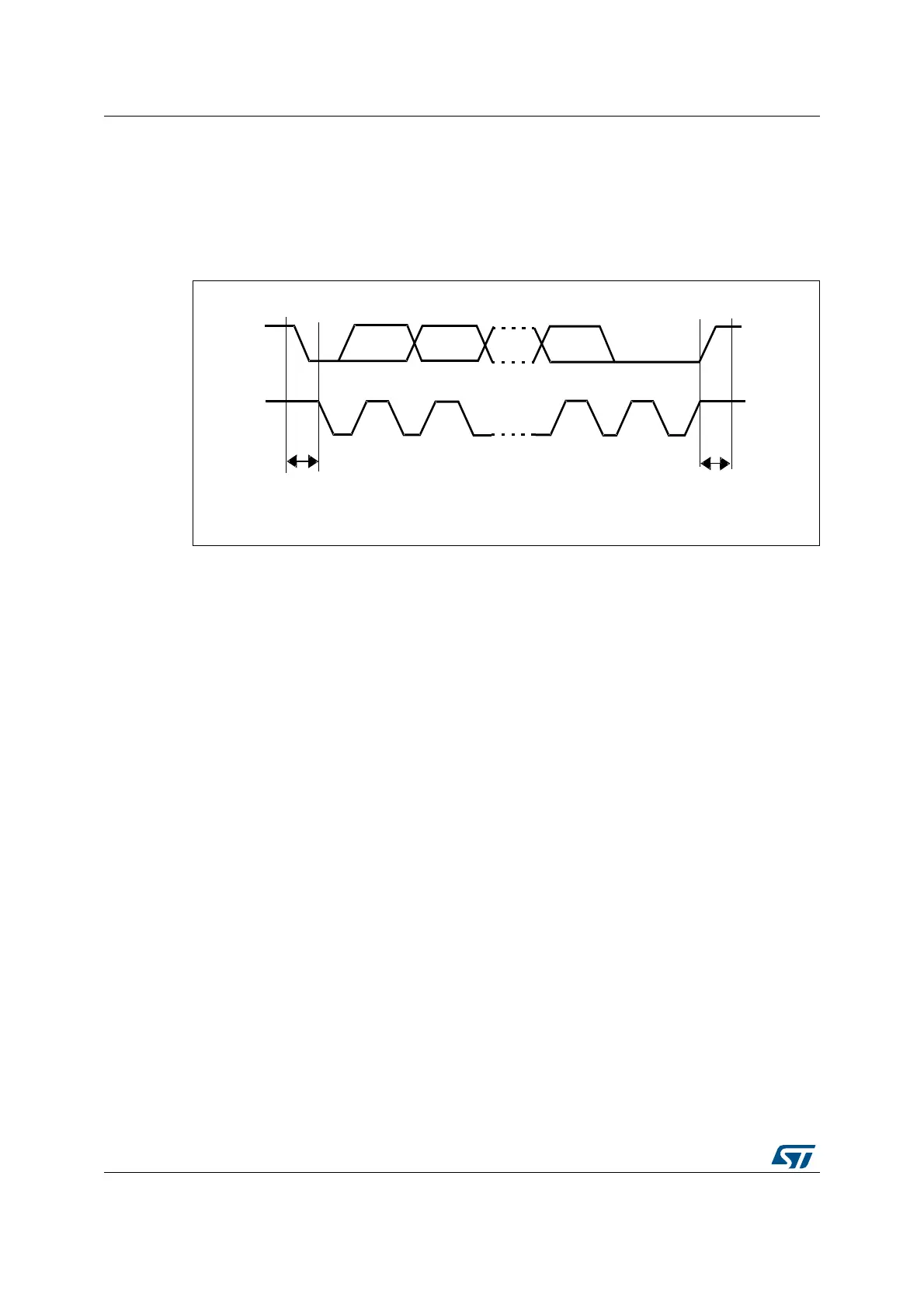

Figure 376. I
2
C bus protocol
Acknowledge can be enabled or disabled by software. The I2C interface addresses can be
selected by software.
069
6'$
6&/
6WDUW
FRQGLWLRQ
6WRS
FRQGLWLRQ
06% $&.
 
