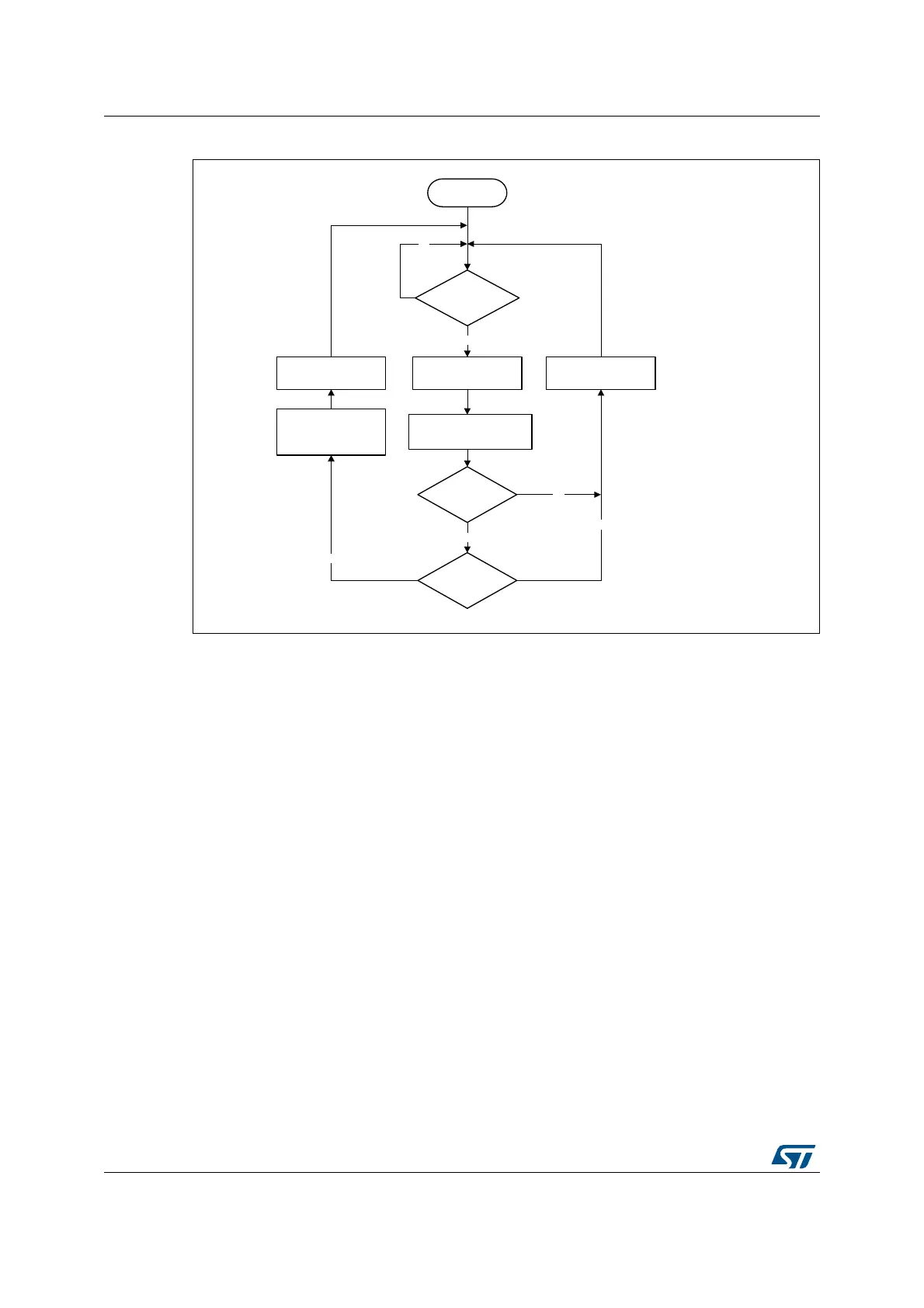

Figure 527. Receive FIFO read task
• Bulk and control OUT/SETUP transactions
A typical bulk or control OUT/SETUP pipelined transaction-level operation is shown in
Figure 528. See channel 1 (ch_1). Two bulk OUT packets are transmitted. A control
SETUP transaction operates in the same way but has only one packet. The
assumptions are:
– The application is attempting to send two maximum-packet-size packets (transfer
size = 1, 024 bytes).
– The non-periodic transmit FIFO can hold two packets (128 bytes for FS).
– The non-periodic request queue depth = 4.
• Normal bulk and control OUT/SETUP operations
The sequence of operations in (channel 1) is as follows:
1. Initialize channel 1
2. Write the first packet for channel 1
3. Along with the last Word write, the core writes an entry to the non-periodic request
queue
4. As soon as the non-periodic queue becomes non-empty, the core attempts to send an
OUT token in the current frame
5. Write the second (last) packet for channel 1
6. The core generates the XFRC interrupt as soon as the last transaction is completed
successfully
7. In response to the XFRC interrupt, de-allocate the channel for other transfers
8. Handling non-ACK responses
DL
5;)/9/
,QWHUUXSW"
5HDGWKHUHFHLYHG
SDFNHWIURPWKH
5HFHLYH),)2
5HDG
27*B*5;6763
3.7676
E"
<H V
<H V
8QPDVN5;)/9/
LQWHUUXSW
%&17!"
1R
0DVN5;)/9/
LQWHUUXSW
<H V
8QPDVN5;)/9/
LQWHUUXSW
1R
1R
6WDUW
