DocID024597 Rev 5 487/1830
RM0351 Quad-SPI interface (QUADSPI)
500

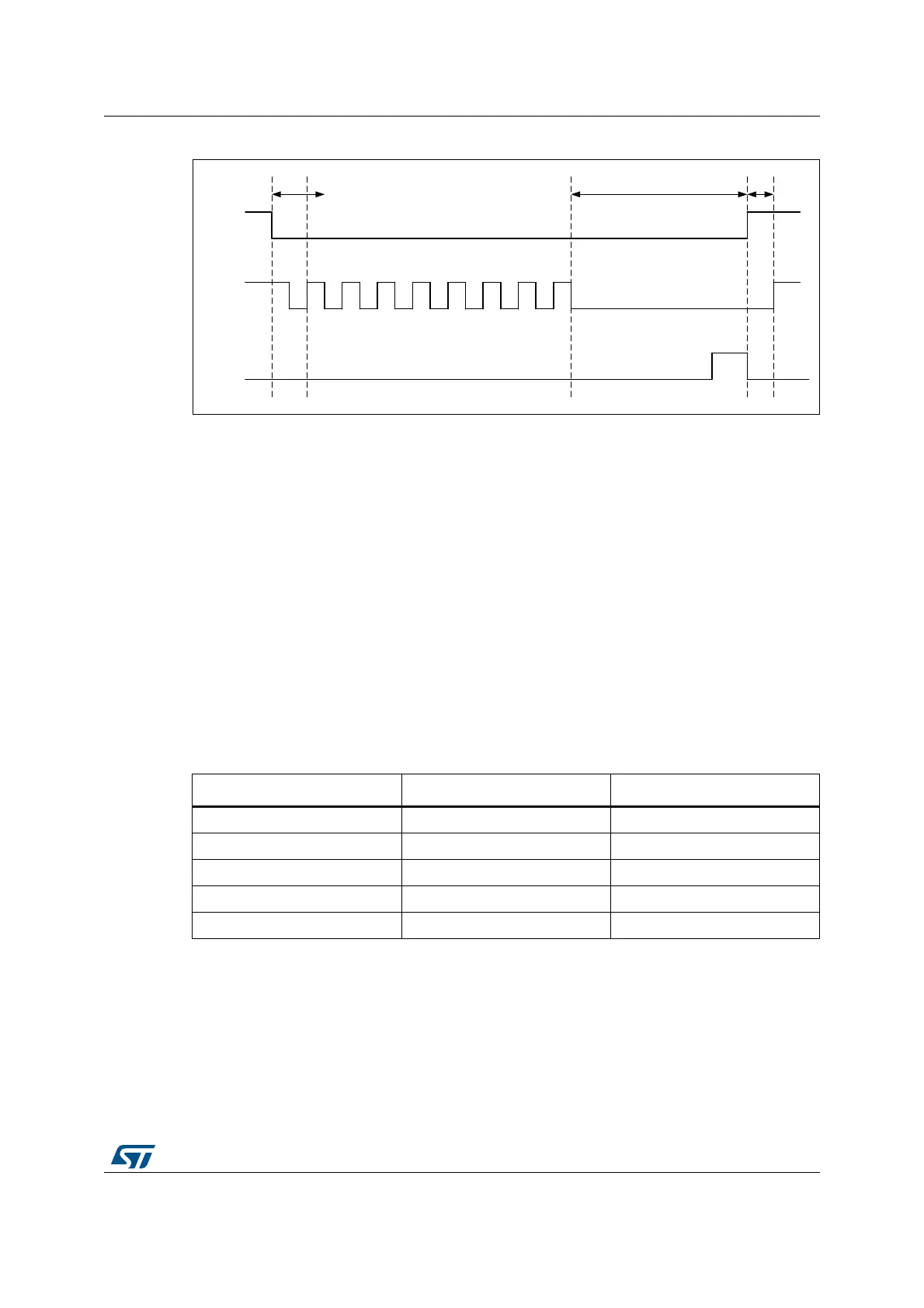

Figure 65. nCS when CKMODE = 1 with an abort (T = CLK period)
When not in dual-flash mode (DFM = 0), only FLASH 1 is accessed and thus the BK2_nCS
stays high. In dual-flash mode, BK2_nCS behaves exactly the same as BK1_nCS. Thus, if
there is a FLASH 2 and if the application always stays in dual-flash mode, then FLASH 2
may use BK1_nCS and the pin outputting BK2_nCS can be used for other functions.
17.5 QUADSPI interrupts
An interrupt can be produced on the following events:
• Timeout
• Status match
• FIFO threshold
• Transfer complete
• Transfer error
Separate interrupt enable bits are available for flexibility.
069
Q&6
6&/.
&ORFNVWDOOHG7 7
$ERUW
Table 100. QUADSPI interrupt requests
Interrupt event Event flag Enable control bit
Timeout TOF TOIE
Status match SMF SMIE
FIFO threshold FTF FTIE
Transfer complete TCF TCIE
Transfer error TEF TEIE
