TROUBLESHOOTING
Sysmex SF-3000 Operator's Manual -- Revised September 1995 8-65
2 . Sheath Injector Motor
This program performs test operation of the Sheath Injector Piston Motor and positions
the motor in the correct initial position. Run this test if a "Sheath Motor Function Error"
occurs and analysis cannot be performed. If the test corrects the error, analysis will be
possible after the system enters the Ready mode.
(1) Bring the Test screen by pressing [Mainte.] and then [Test] keypads (Refer to
Section 3.1 in this chapter).
(2) Press the [Sheath Motor] keypad from the Test screen. The message "Press Start
Switch" will appear.
(3) Press the Start Switch. Sheath motor operation will begin. The Sheath Injector
Piston moves as displayed in the figure below.
During test operation, the message "Executing Sheath Motor test. Please wait." is
displayed.
Upper End
Lower End
(Initial Position)
①
➁

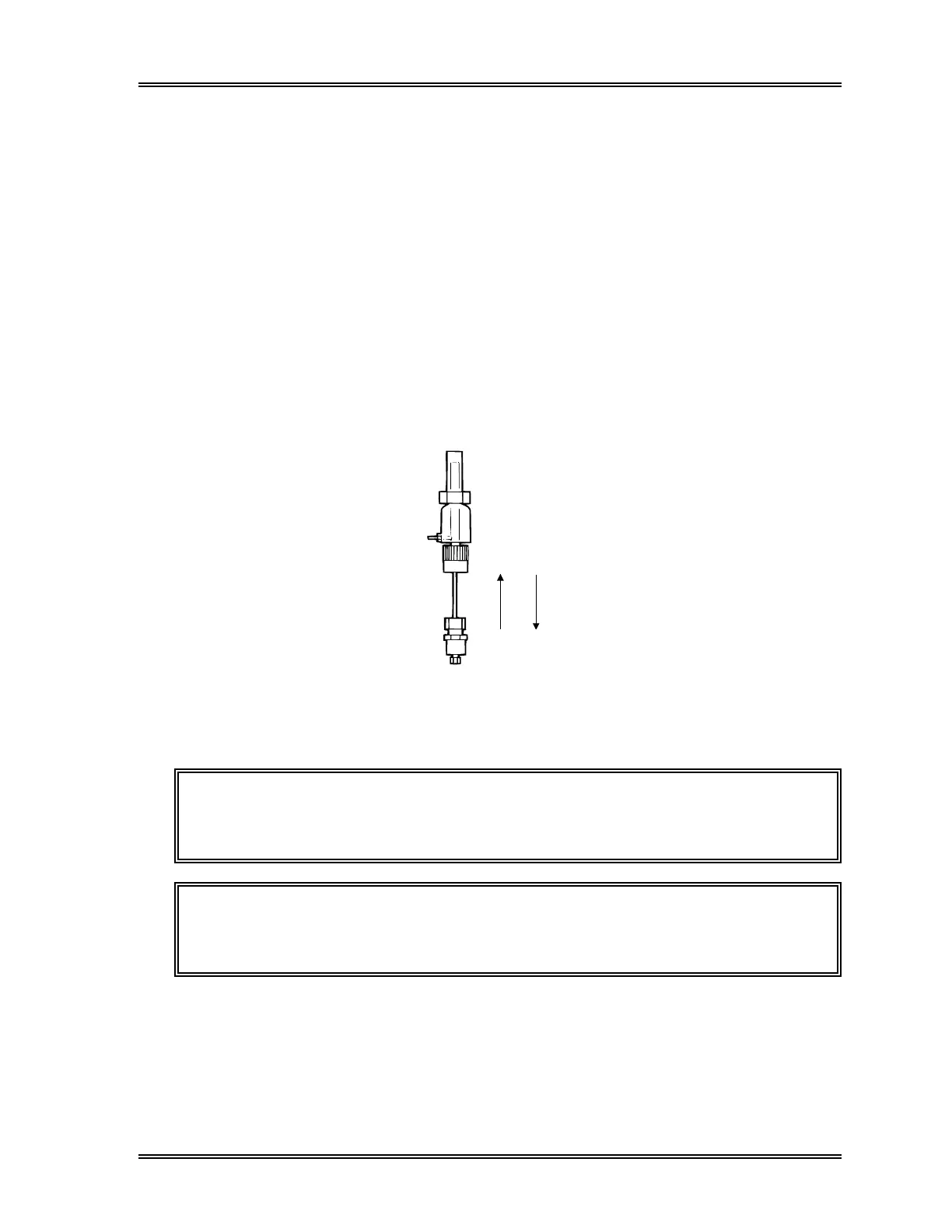

Figure 8-10: Sheath Injector Piston Operation
NOTE: Only when it is required by Sysmex service representative, open the
Main Unit left side cover and observe the operation of Sheath Injector
Piston with his/her assistance.
CAUTION: DO NOT open the left side cover without instruction and assistance of
Sysmex service representative to observe Sheath Injector Piston
operation.
