ADJUSTMENT
Sysmex SF-3000 Operator's Manual -- Revised September 1995 9-11
(6) If the bar-code reading failed, adjust the position of the ID Reader.
Loosen the fixing screws A and B shown in Figure 9-13, and move the ID Reader
screw B side while fixing the screw A position.
Fixing Screw B
Fixing Screw A

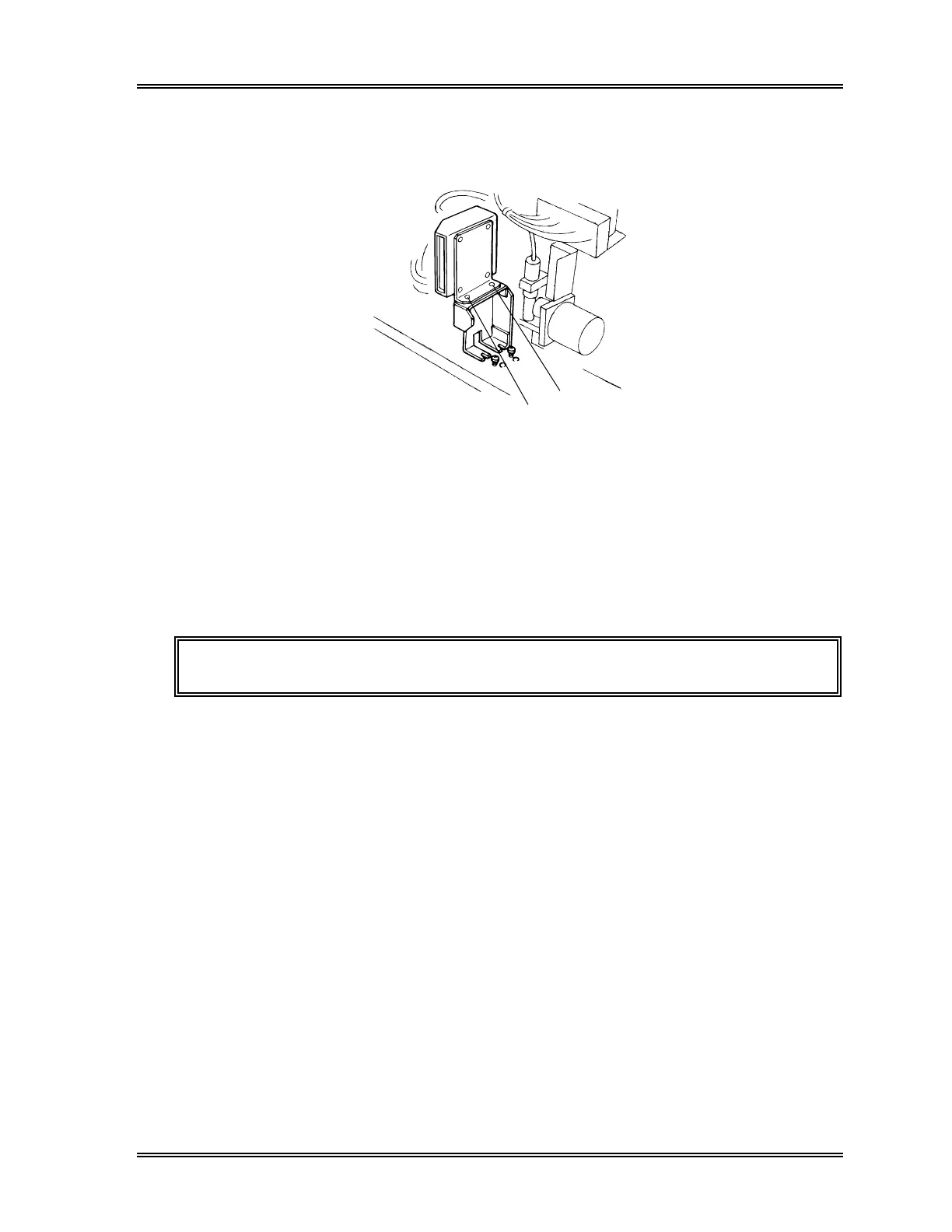

Figure 9-13: Adjusting the Bar-Code Reader Position
(7) Repeat the ID read test program to verify the bar-codes are read correctly.
(8) When the adjustment is complete, pull out the Sampler Unit by approx. 10 cm, and
refit the Front Panel-B Assy.
(9) Refit the Sampler Unit.
CAUTION: When refit the Sampler Unit, take care not to pinch the tubing.
