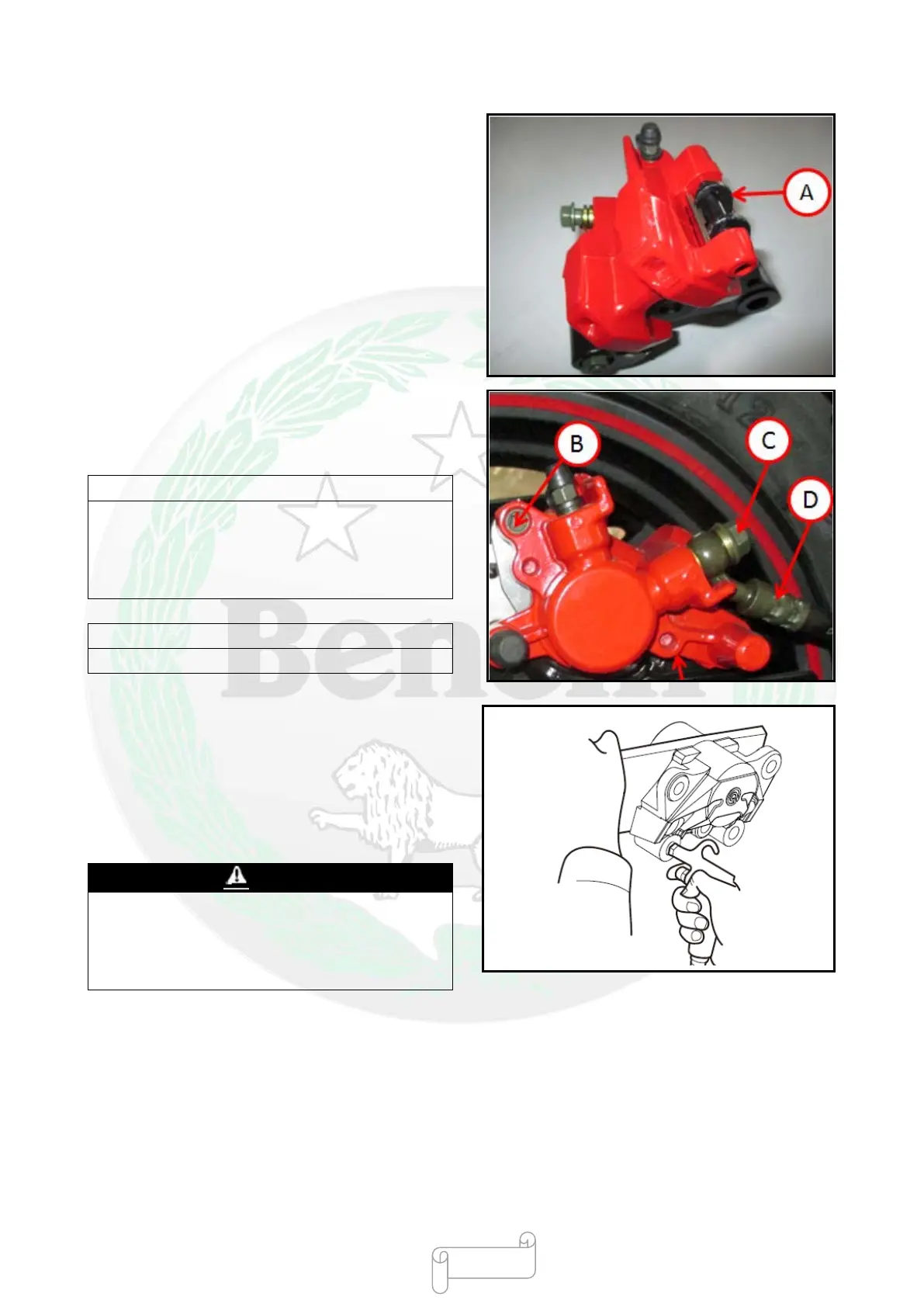

Disassembling Rear Calipers
●Remove the rear wheel (see “Disassembling Rear
Wheel” in “Wheel / Tire” chapter)
● Separate calipers [A] and the brake disc.
●Loosen the hollow bolt [C] at the bottom of the brake
hose.
●Remove the calipers mounting bolt [B], and remove
the rear brake pad.
Note
Do not remove the calipers mounting bolts. To
remove calipers, simply remove the calipers
mounting bolt, because brake fluid may leak after
removing calipers mounting bolt.
●Remove hollow bolt and brake hose at calipers [D]
Note
If brake fluid spills out, please rinse immediately!
●Remove the piston on the calipers according to the
following method.
●The method for removing the piston on the calipers it
the same as that for removing the front calipers.
●Hold the piston on the calipers with a piece of wood
and blow the compressed air into the brake hose joint to
squeeze the piston of calipers.
Warning
In order to avoid serious injury, do not put your
finger or palm in front of the piston! Otherwise,
the piston will crush the hand or finger when the
compressed air is injected into the calipers.
- 114 -
