Benelli TNT125 Service Manual

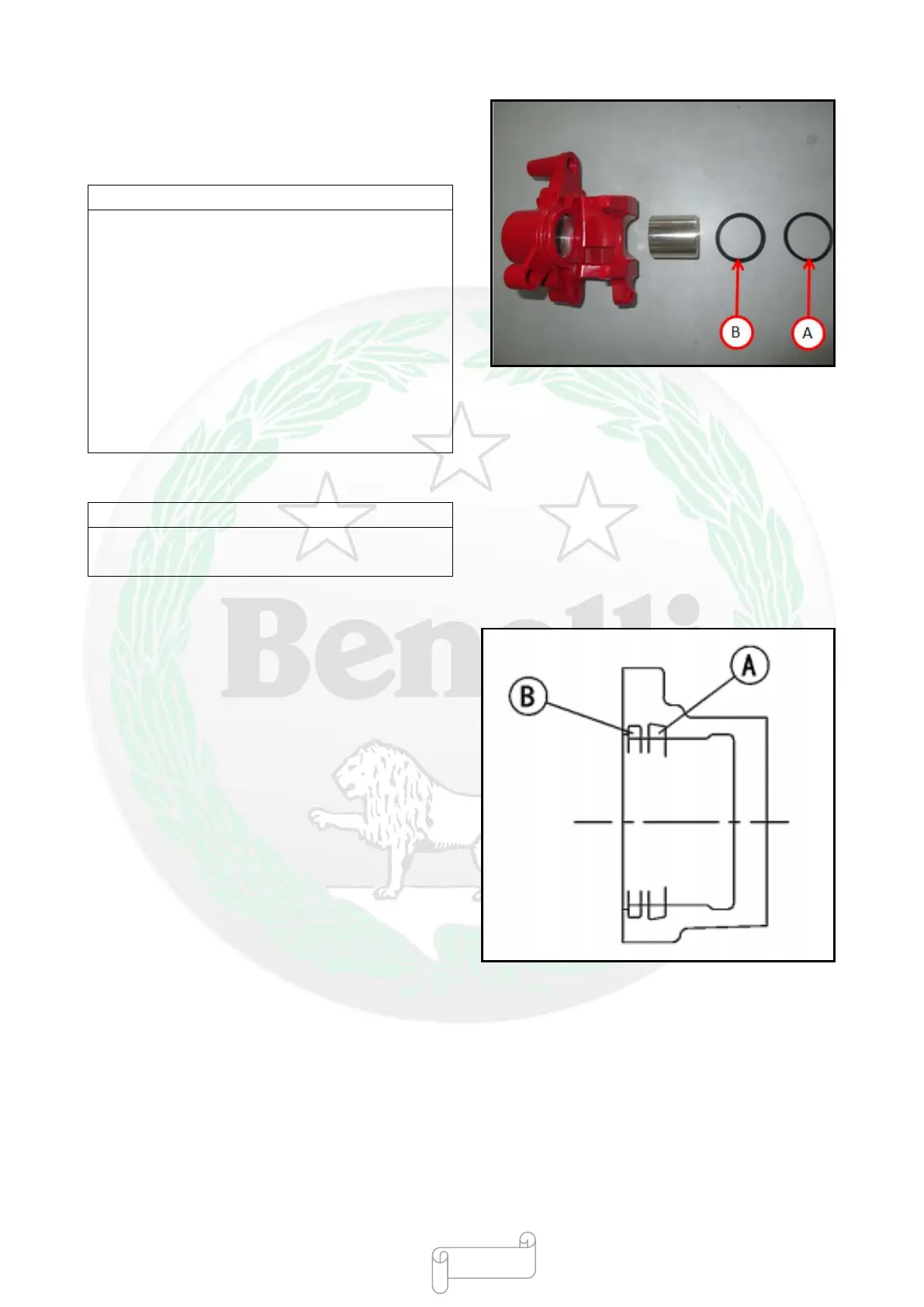

●Disassemble:
Dust seal [A],
Oil seal [B],
Rem
ark
○If there is no compressed air, remove the piston
from the two calipers according to the following
method (the brake hose is connected with the
calipers).
○Prepare a container to hold the brake fluid.
○Re
move the brake pad spring and brake pad (see
“Disassembling Rear Brake Pad” in the “Brake”
chapter).
○Press the brake pedal and remove the calipers
piston.
Assembling Rear Calipers
●Clean the calipers parts (except for the brake pad).
Note
The parts must be cleaned by using the disc brake
fluid, isopropyl alcohol or ethanol!
●Install the bleed valve and rubber cover.
Locking torque of bleed valve : 7.8 N·m
●Apply the brake fluid to the inner wall of brake
cylinder.
●Replace with a new oil seal [A].
○Apply the silicone grease to the oil seal, and then
install it into the brake cylinder with hands.
●Replace with a new dust seal [B].
- 115 -
