Benelli TNT125 Service Manual

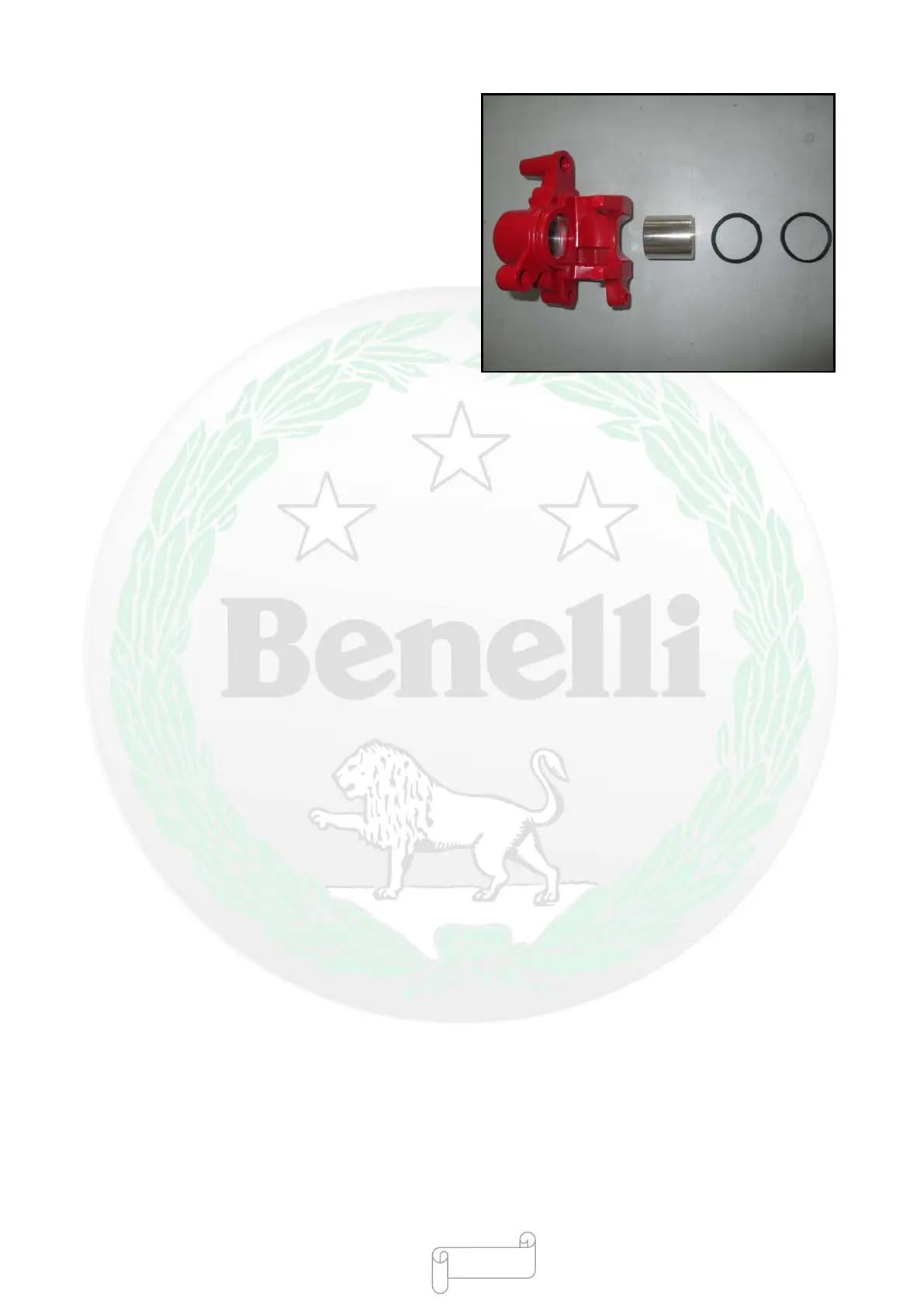

●Apply the brake fluid to the outside of piston and
press it into the brake cylinder with hands.
●Apply some thre
ad fastening glue to the threads of
rear calipers assembling bolts and then tighten the
bolts.
Locking torque of rear calipers assembling bolt: 37
N·m
●Install the brake pad (see “Installing Rear Brake Pad”
in the “Brake” chapter).
●Wipe up the brake fluid which is splashed onto the
calipers with a wet cloth.
- 116 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
