Benelli TNT125 Service Manual

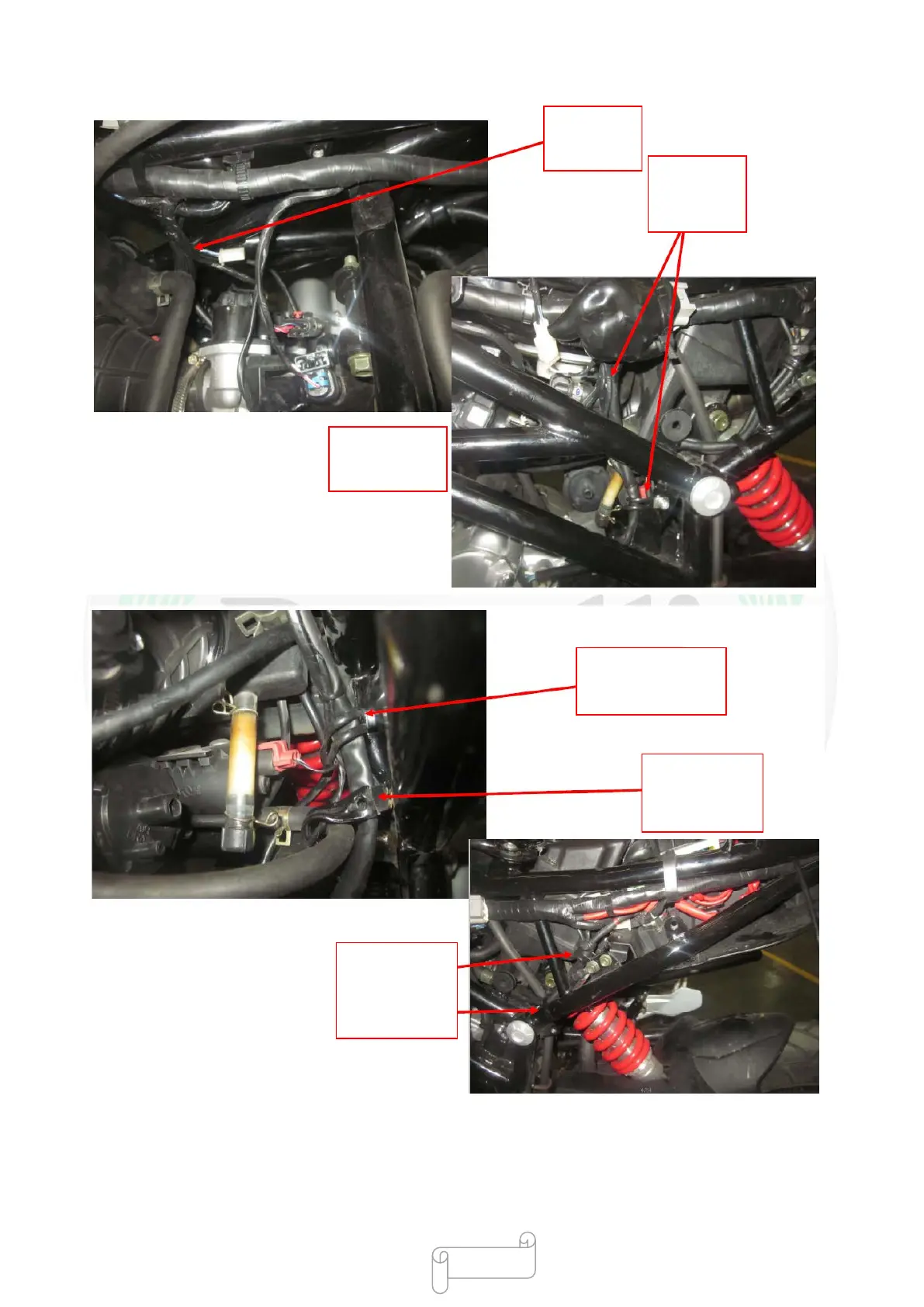

Tie the main cable
branch and sensor
wire using a fine
fastener
Make magneto
wire and gear
display wire go
along the inside of
frame
Tie the magneto and
gear display wire and
canister solenoid valve
using a fi
ne fastener
Clamp magneto wire and
gear display wire, bond strap
wire and canister solenoid
valve wire using iron clamp
Clamp the canister
solenoid valve pipe,
gear display wire and
magneto wire at the
frame
Make the bond strap
wire go backward along
the inside of frame, and
tie it with relay wire,
negative wire of battery
on the frame
- 469 -
