Step 2

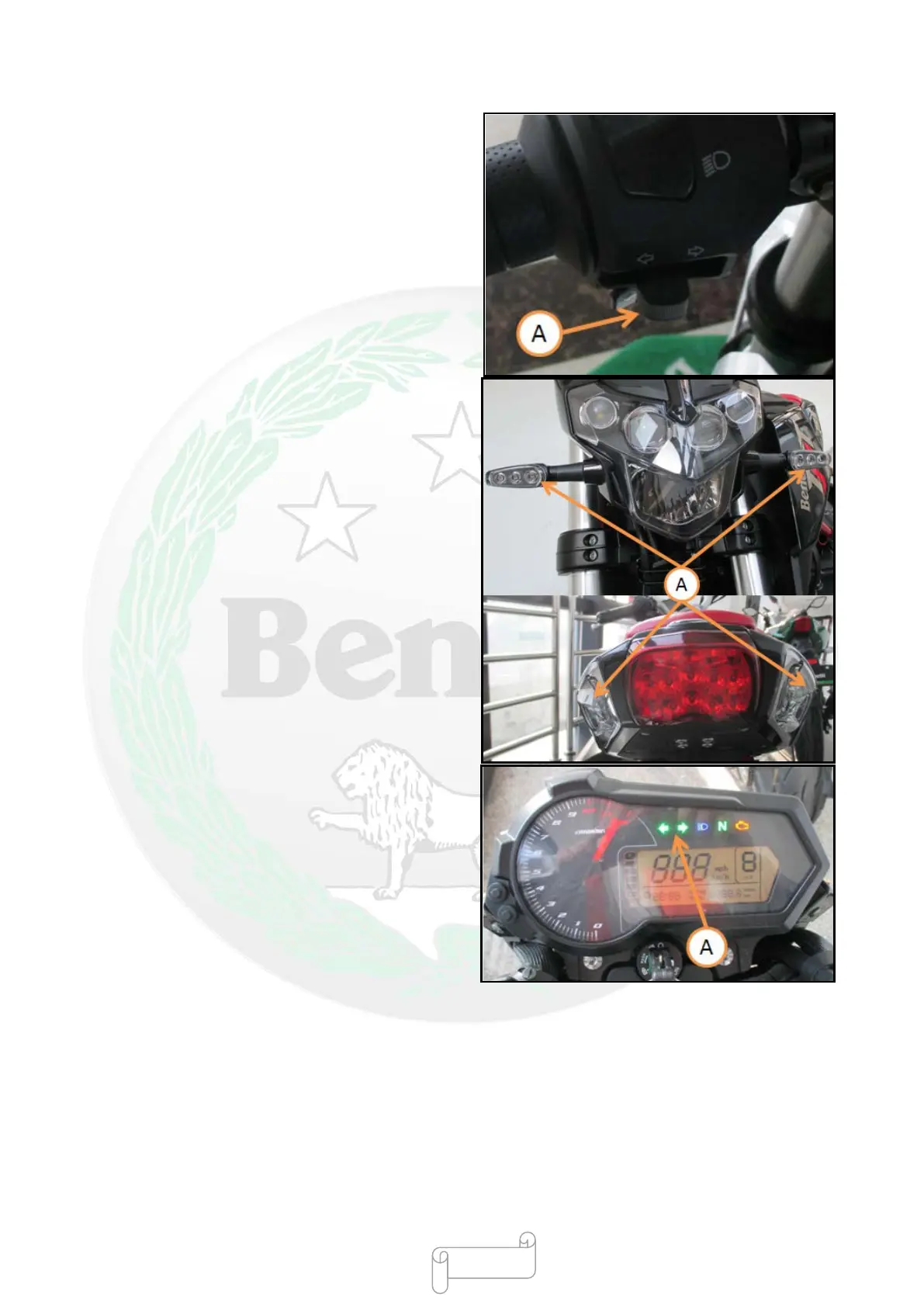

●Open the electric door lock.
●Turn on the turn signal switch [A] (left or right).
●Left turn signal or right turn signal (LED) (position of
corresponding switch) (front and rear) will flash.
●Left/right turn signal light indicator (LED) [A] in the
dashboard will flash.
★
If the left turn signal or right turn signal is not on,
check or replace the following parts:
Turn signal (LED) (see “Replacing Turn Signal” in the
“Electrical System” chapter);
Header parts of turn signal light indicator (LED) (see
“Checking Header Parts” in the “Electrical System”
chapter);
Turn signal switch (see “Checking Switch” in the
“Electrical System” chapter);
Wire harness (see “Checking Circuit” in the “Electrical
- 84 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
