1 THE DIMENSION OF THE RADIUS MUST
BE AT LEAST 4 X A.
11
THE BLEND CONTOUR
BLADE EDGE
A
LEADING EDGE
TRAILING EDGE
MINIMUM BLENDED RADIUS
THE INITIAL CONTOUR
MUST BE THE SAME AS
THE BLENDED TRAILING EDGE
THICKNESS MUST NOT BE LESS
THAN
THE INITIAL THICKNESS
THE DOTTED LINES SHOW THE
INITIAL CONTOUR OF THE BLADE
24998 S00061422911_V1

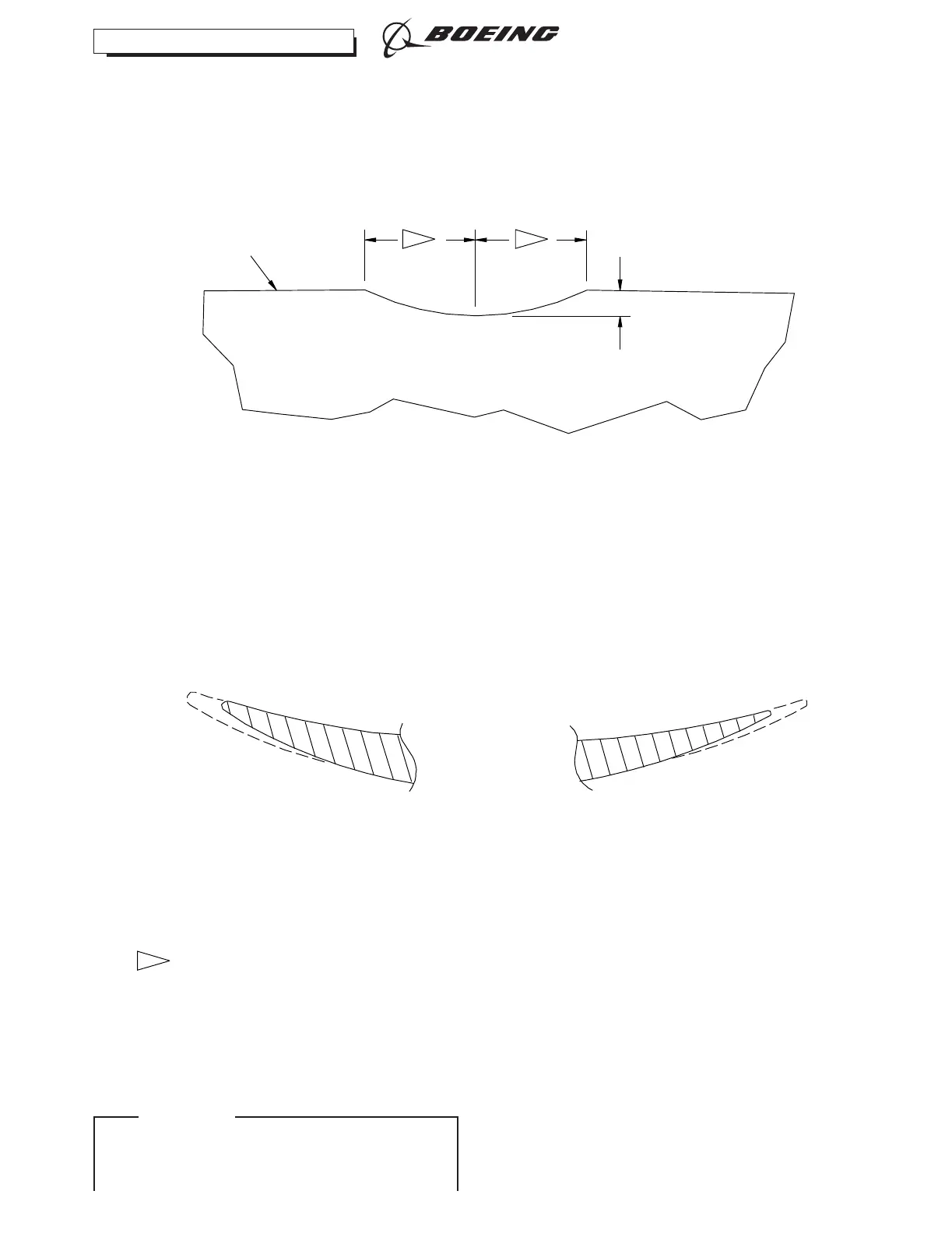

Limits for Blended Leading and Trailing Edges
Figure 802/72-31-02-990-807-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-31-02
NoC
Page 805
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
