Boeing 767 - Page 265

B
SEE
AIRFOIL
FILLET
A
B
OUTER OUTLET GUIDE VANE AND FAIRING INSPECTION AREAS
LEADING EDGE
VANE
TRAILING
EDGE
INSERTS
FAIRING
SEE
A
FAN FRAME AND
CASE ASSEMBLY
SEE
C
FILET EDGE
FILET EDGE
FILET EDGE
25579 S00061422938_V1

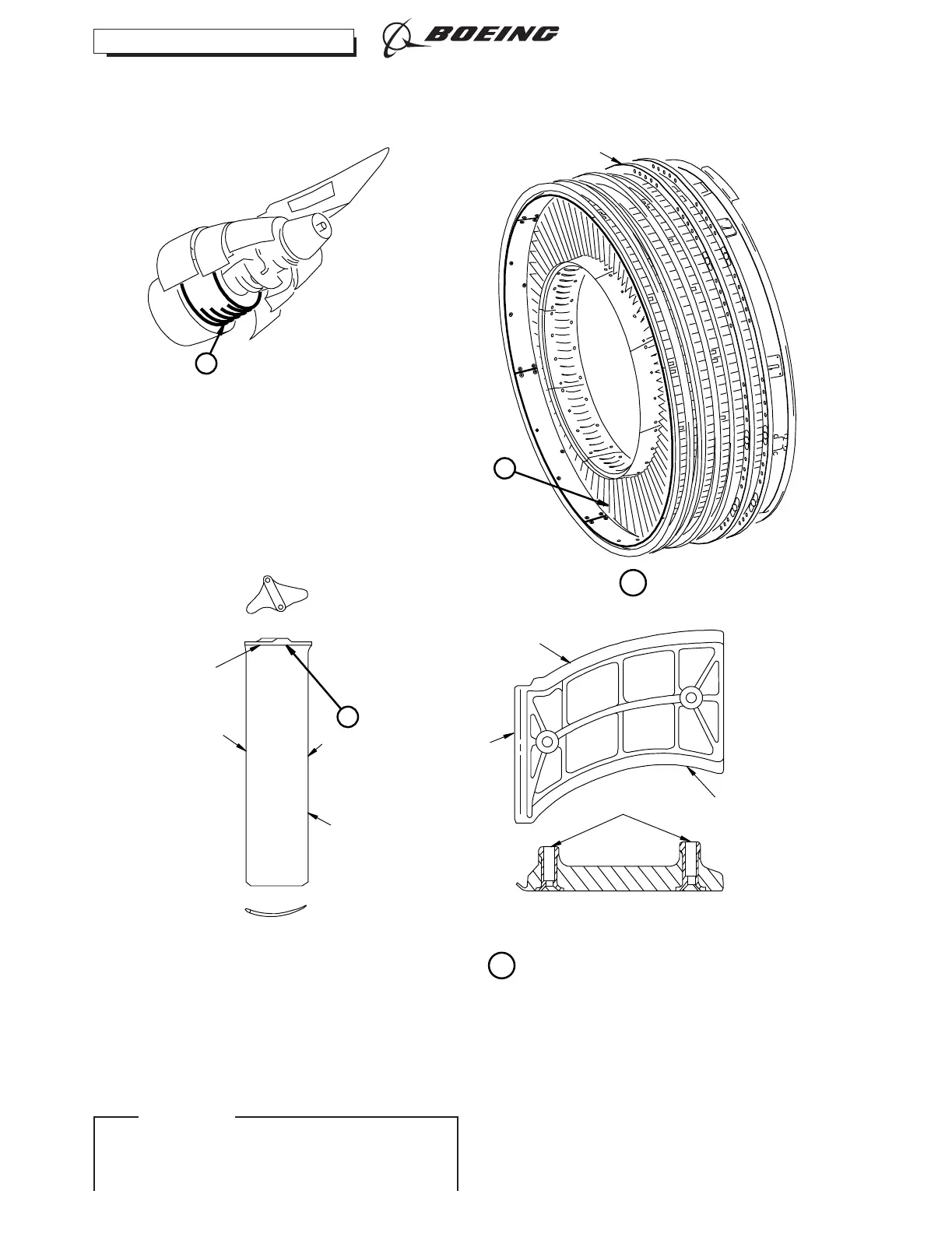

Outer OGV and Fairing Installation and Inspection
Figure 201/72-33-03-990-801-G00 (Sheet 1 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-33-03
NoC
Page 203
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
