Boeing 767 - Page 417

PORTS
AFT FLANGE
PRESSURE
BALANCE
SEAL
OUTER
LINER
INNER
LINER
FORWARD
FLANGE
NOZZLE
SEGMENTS
NOZZLE SEGMENTS
PRESSURE
BALANCE SEAL
OUTER LINER
INNER LINER
FORWARD FLANGE
PORTS
AFT FLANGE
CAST CASE
FABRICATED CASE
94790 S00061423132_V1

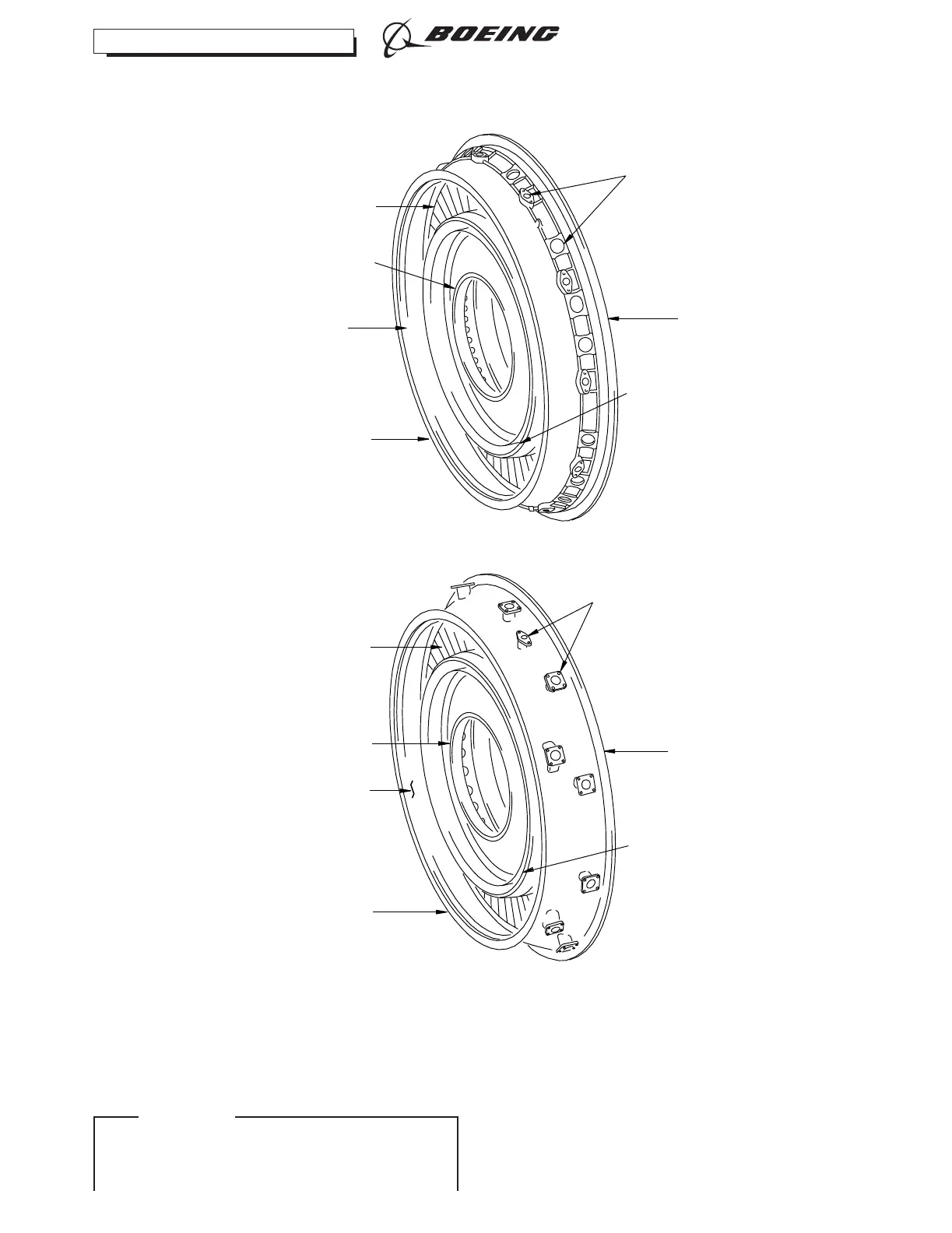

First Stage LPT Nozzle Assembly
Figure 1/72-50-00-990-801-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-50-00
NoC
Page 2
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
