Boeing 767 - Page 426

SEE
TANGENTIAL CRACK
ON FEEDER TUBE TEE
RADIAL CRACK
ON FEEDER TUBE
SEE C
RADIAL CRACK
ON MANIFOLD
B
C
TANGENTIAL
CRACK
RADIAL
CRACK
TANGENTIAL CRACK
RADIAL CRACK
(OUTBOARD END
OF ELBOW)
AIR PAD
CASE
C
AIR PAD
CASE
OF ELBOW)
(INBOARD END
159109 S00061423141_V1

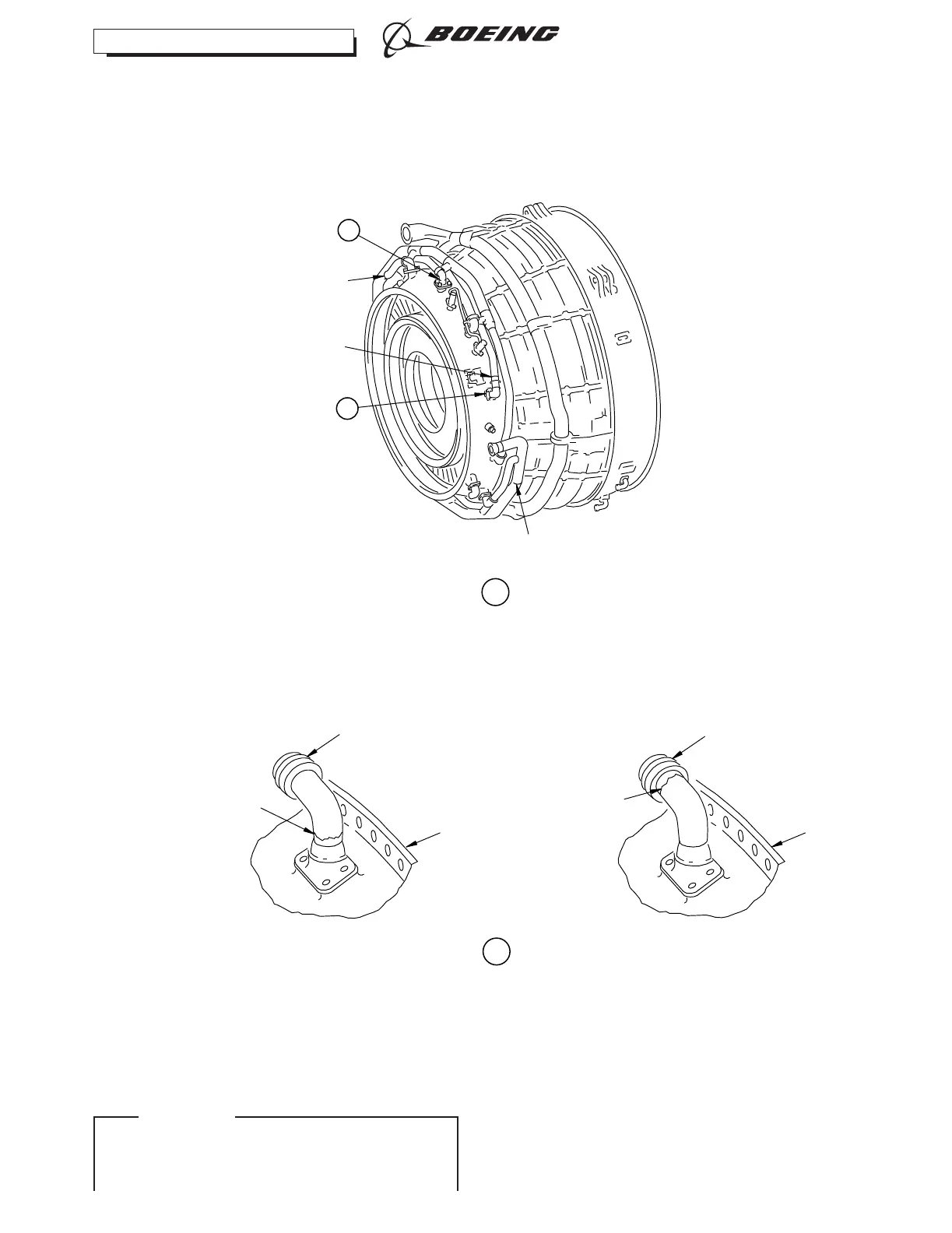

First Stage LPT Nozzle Inspection
Figure 601/72-51-01-990-801-G00 (Sheet 2 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-51-01
NoC
Page 604
D633T1B7 Dec 22/2016
