Boeing 767 - Page 448

SEE
A
SHROUD
INSULATOR
HORIZONTAL
FLANGE
SHROUD
SHROUD
NOZZLE
INTERSTAGE
SEALS
HONEYCOMB
SHROUD
SHROUD
NOZZLE
NOZZLE
FLANGE
REAR
FLANGE
COOLING
MANIFOLD
STATOR
CASING
A
4th-STAGE
3rd-STAGE
4th-STAGE
2nd-STAGE
3rd-STAGE
2nd-STAGE
FRONT
26183 S00061423165_V1

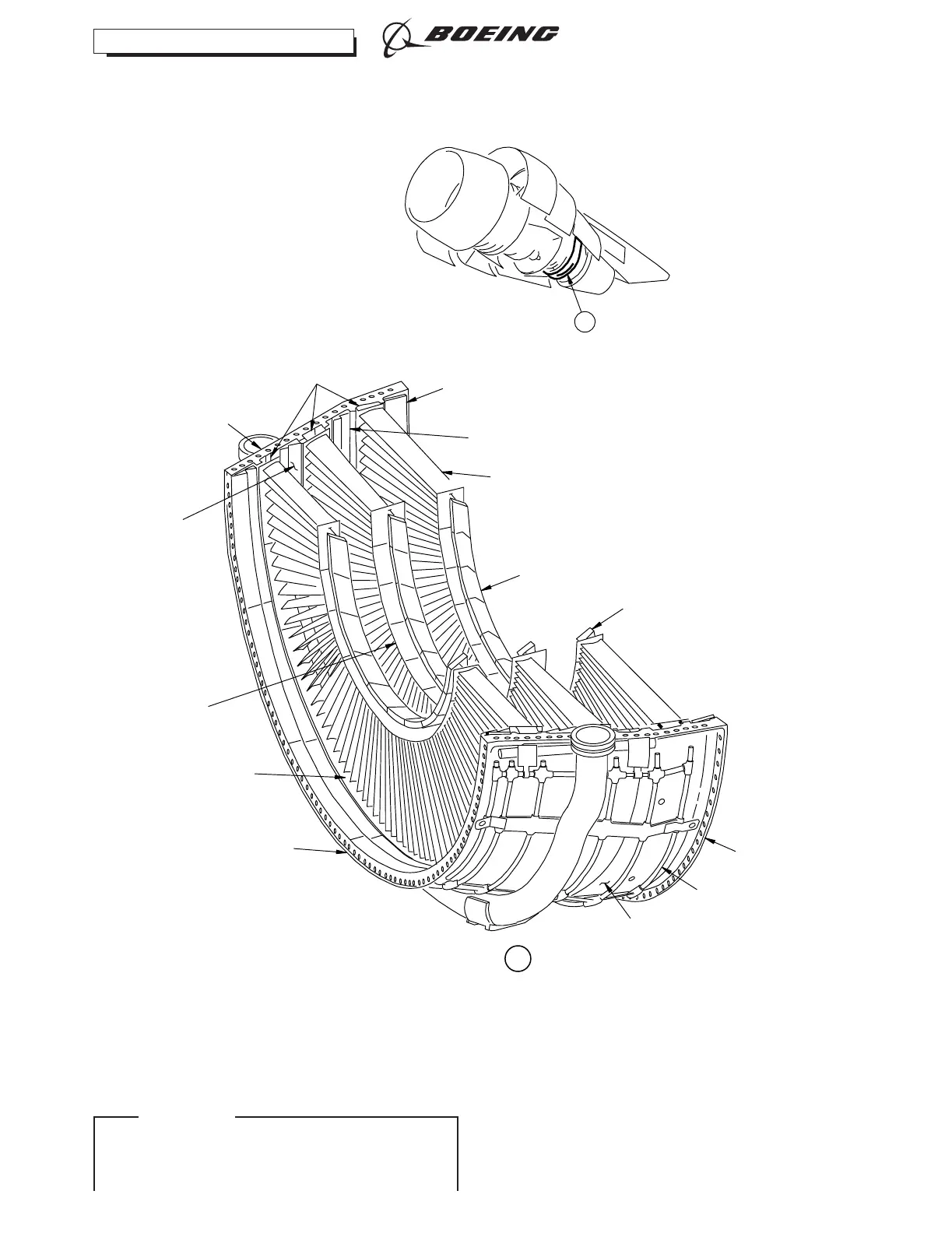

Low Pressure Turbine Stator Inspection
Figure 601/72-52-01-990-810-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-52-01
Config 1
Page 605
D633T1B7 Dec 22/2016
