Boeing 767 - Page 486

NO. 7 ADAPTER
(FUEL CONTROL)
NO. 5 ADAPTER
(LUBE AND SCAVENGE PUMP)
IDG HEAT EXCHANGER
TUBE BRACKET
NO. 3 ADAPTER
(HYDRAULIC PUMP)
(CONTROL ALTERNATOR)
LUBE PUMP SPLINE
LUBE TUBE BRACKET
SERVO FUEL HEATER
TUBE BRACKET
NO. 4 ADAPTER
(IDG)
NO. 6 ADAPTER
(STARTER)
NO. 8 ADAPTER
(FUEL PUMP)
SCAVENGE DISCHARGE
TUBE BRACKET
NO. 9 ADAPTER
AFT FACE
CF8-6284-00-B
FORWARD FACE
74761 S00061423223_V1

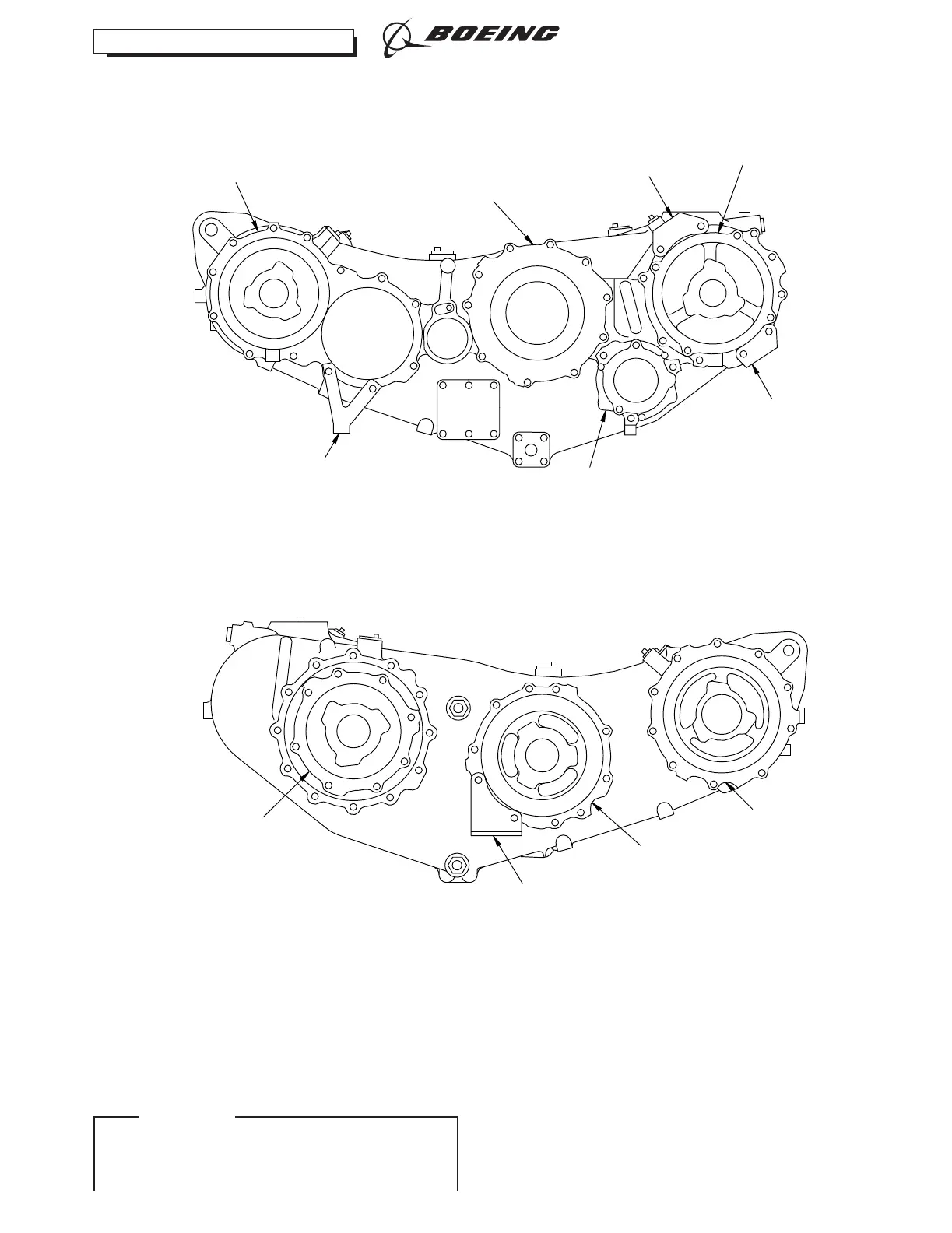

Accessory Gearbox Adapter and Bracket Locations
Figure 401/72-61-03-990-801-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-61-03
NoC
Page 404
D633T1B7 Dec 22/2016
