Boeing 767 - Page 488

AFT FACE
FORWARD FACE
[1]
[3]
NO.
9
ADAPTER
NO. 3
ADAPTER NO. 5
ADAPTER
NO. 7
ADAPTER
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[2]
[3]
[2]
[3]
[2]
[3]
[2]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[2]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
[1]
[3]
NO.
4
ADAPTER
NO. 6
ADAPTER
[1]
[3]
NO.
4
ADAPTER
[1] DOUBLE HEX HEAD BOLT
[2] SHOULDER STUD
[3] FLAT WASHER
CF8-6285-00-B
LEGEND: ______
77458 S00061423225_V1

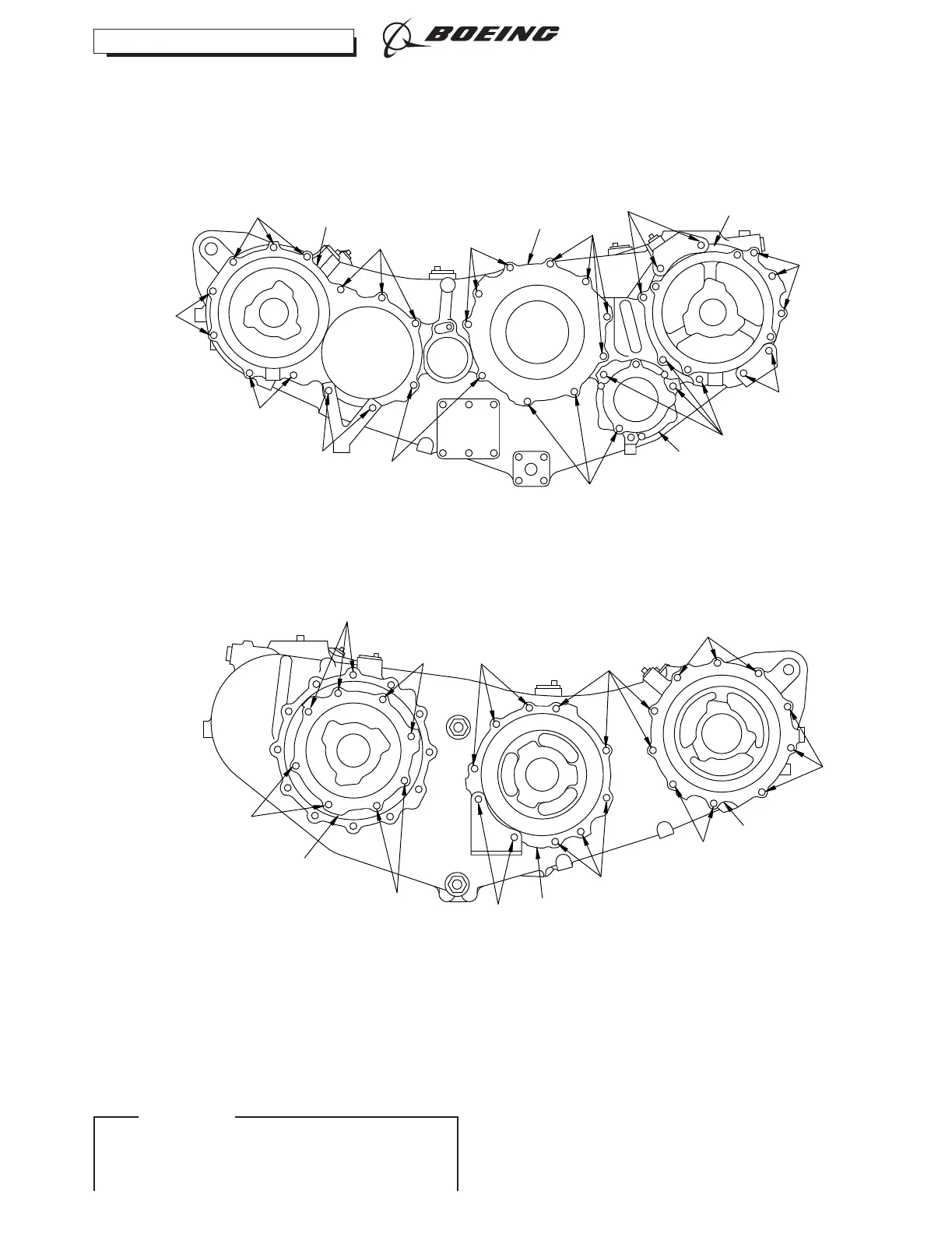

Adapter Mounting Hardware on the Accessory Gearbox
Figure 403/72-61-03-990-803-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-61-03
NoC
Page 406
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
