DIMENSION B
DIMENSION A
DIMENSION A
DIMENSION B
NOTE: ____
AREA A
AREA B
LOCATION C
1. MATERIAL MISSING FROM THE BLADE TIP CORNER WITH A SEPARATION
LINE RUNNING FROM THE BLADE TIP TO THE LEADING OR TRAILING EDGE.
2. MISSING CORNER MAY BE ANY SHAPE WITHIN AREA A WHERE DIMENSION A IS
EQUAL TO 1/4 THE BLADE CORD LENGTH.
3. MISSING CORNER MAY EXTEND INTO AREA B PROVIDED THE SEPARATION LINE
IS A SMOOTH CURVE (NO NOTCHES OR CUSPS) EXCEPT AT THE LEADING OR
TRAILING EDGE, LOCATION C, WHERE A TENSILE CUSP IS PERMITTED.
W82760 S00061422708_V1

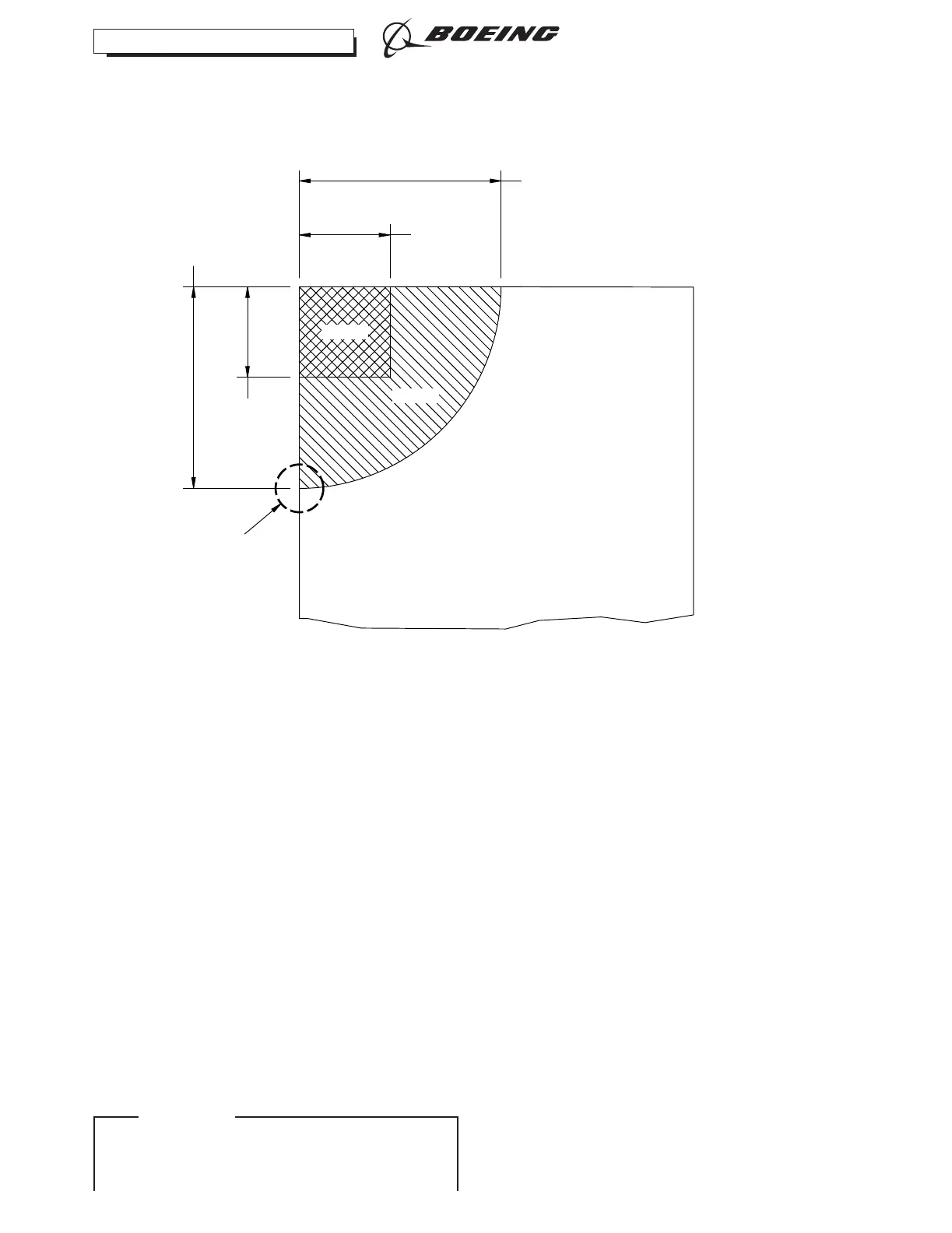

HPC Blade Tip Corner
Figure 604/72-00-00-990-808-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-00-00
NoC
Page 628
D633T1B7 Aug 22/2017
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
