HEIDENHAIN MANUALPLUS 620 Technical Manual

January 2012 3.24 Touch Probe Systems 263
Adapter for
connection of
a TT touch probe to
X113
Only up to variant -02 of PLB 62xx:
The items supplied with the PLB 62xx include a cable adapter with the
ID 667 674-01.
If you want to connect a TT touch probe to X113 of the PLB 62xx, you need
the cable adapter. It makes the Start and Ready signals of the TT touch probes
available on the correct pins of X113.

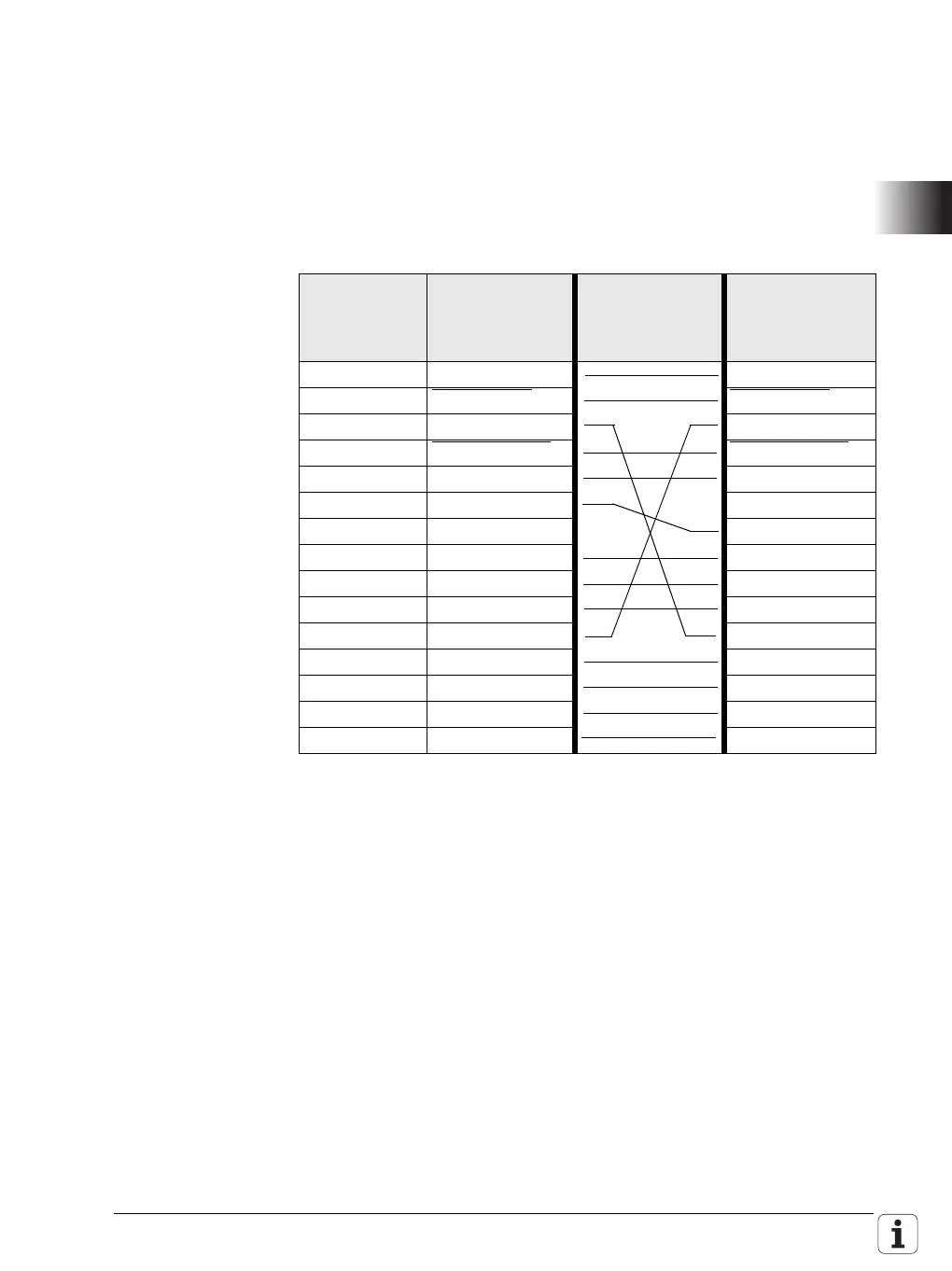

Pin layout of adapter with ID 667 674-01:
(D-sub, 15-pin, 3-row)
Female Assignment of
X113
(TT) up to
variant -02
Adapter
ID 667 674-01
TT adapter cable
ID 633 616-xx
1 Trigger signal Trigger signal
2 Trigger signal
a Trigger signala
3 TS ready Do not assign
4 Battery warning
Battery warning
5 + 5 V NC (±5 %) + 5 V NC (±5 %)
6 Start Do not assign
7 0 V NC TT start
8 0 V NC 0 V NC
9 0 V NC 0 V NC
10 + 24 V NC + 24 V NC
11 TT ready TT ready
12 Do not assign Do not assign
13 Do not assign Do not assign
14 Do not assign Do not assign
15 Do not assign Do not assign
