Icom IC-7100

20

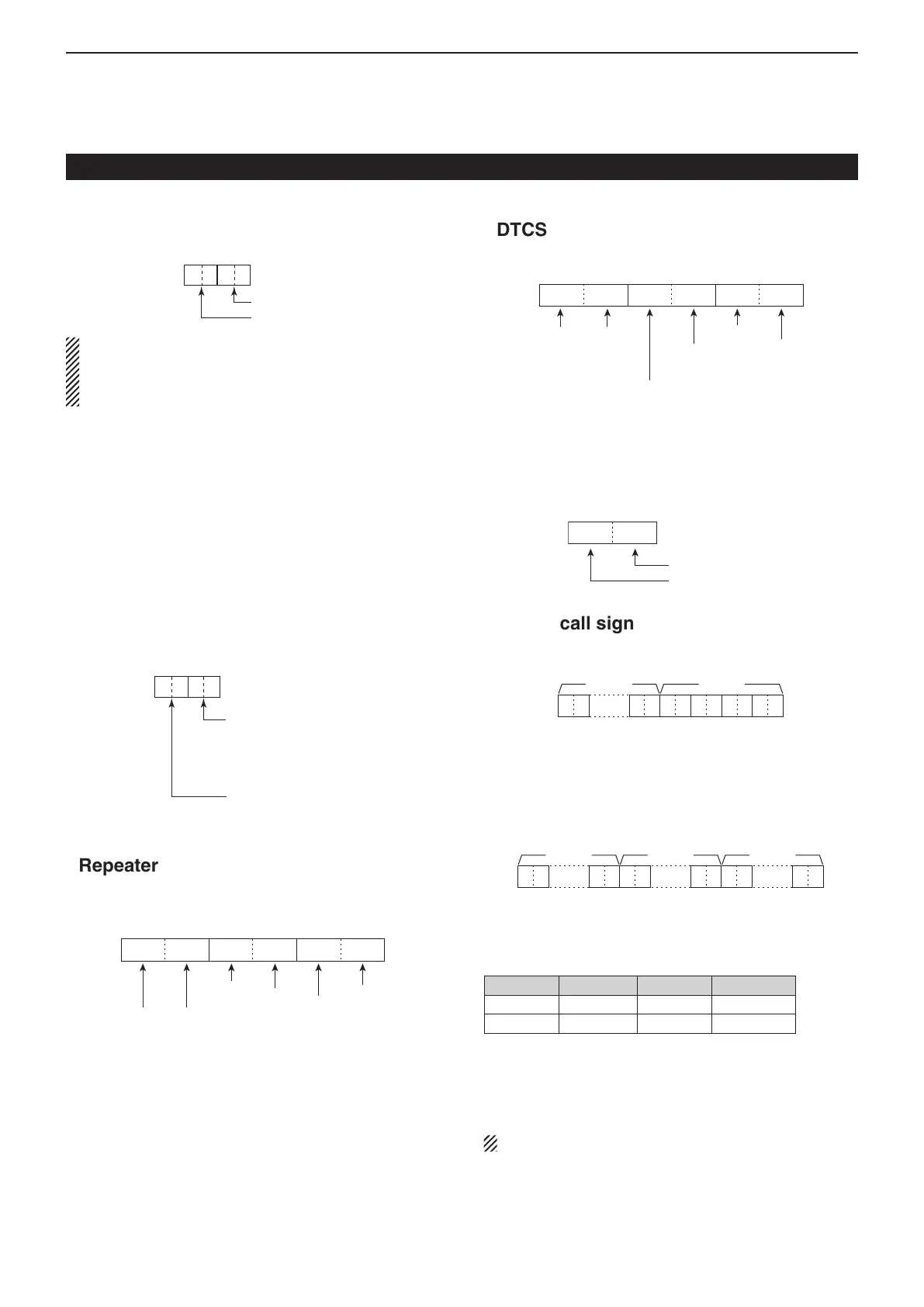

CONTROL COMMAND
20-14
• GPS-A Symbol setting
Command : 1A 05 0206, 0207, 0208, 0209
XXXX
Second digit
First digit
⁄, \, 0 to 9, A to Z can be used for the rst digit char-
acter.
See ‘Character code setting’ for the second digit
character. (p. 20-12)
• Comment setting
Command: 1A 05 0211
Set a comment of up to 43 characters.
See ‘Character code setting.’ (p. 20-12)
• GPS message setting
Command: 1A 05 0200
Set a GPS message of up to 20 characters.
See ‘Character code setting.’ (p. 20-12)
• Data mode with lter width setting
Command: 1A 06
XXXX
qw
00: Data mode OFF
01: FIL1
02: FIL2
03: FIL3
00: Data mode OFF
01: Data mode ON
• Repeater tone/tone squelch frequency
setting
Command: 1B 00, 1B 01
q* ew
00
XXXX
0 (fixed) 0 (fixed) 100 Hz digit 10 Hz digit 1 Hz digit 0.1 Hz digit
*Not necessary when setting a frequency.
• DTCS code and polarity setting
Command: 1B 02
qew
XX
0XXX
Transmit polarity: 0: Normal 1: Reverse Receive polarity: 0: Normal 1: Reverse 0 (fixed) First digit: 0–7 Second digit: 0–7 Third digit: 0–7
• Digital code squelch setting
Command: 1B 07
XX
q
Second digit: 0–9
First digit: 0–9
• DV MY call sign setting
Command: 1F 00
Set your own call sign and note of up to 12 characters.
XX XXX XXXXXXX
o–!2q–i
……
q–i Your own call sign setting
o–!2 Note setting
• DV TX call signs setting
Command: 1F 01
Set “UR,” “R1” and “R2” call signs of 8 characters (fixed).
XX
……
XX XXX X XXXX
……
!7–@4o–!6q–i
……
q–i UR (Destination) call sign setting
o–!6 R1 (Access repeater) call sign setting
!7–@4 R2 (Gateway/Link repeater) call sign setting
• Character’s code of the call sign
Character ASCII code Character ASCII code
0–9 30–39 A–Z 41–5A
Space 20 ⁄ 2F
• DV TX message setting
Command: 1F 02
Set the transmit message of up to 20 characters.
See ‘Character code setting.’ (p. 20-12)
“FF” stops sending or reading messages.
Data content description (Continued) D
