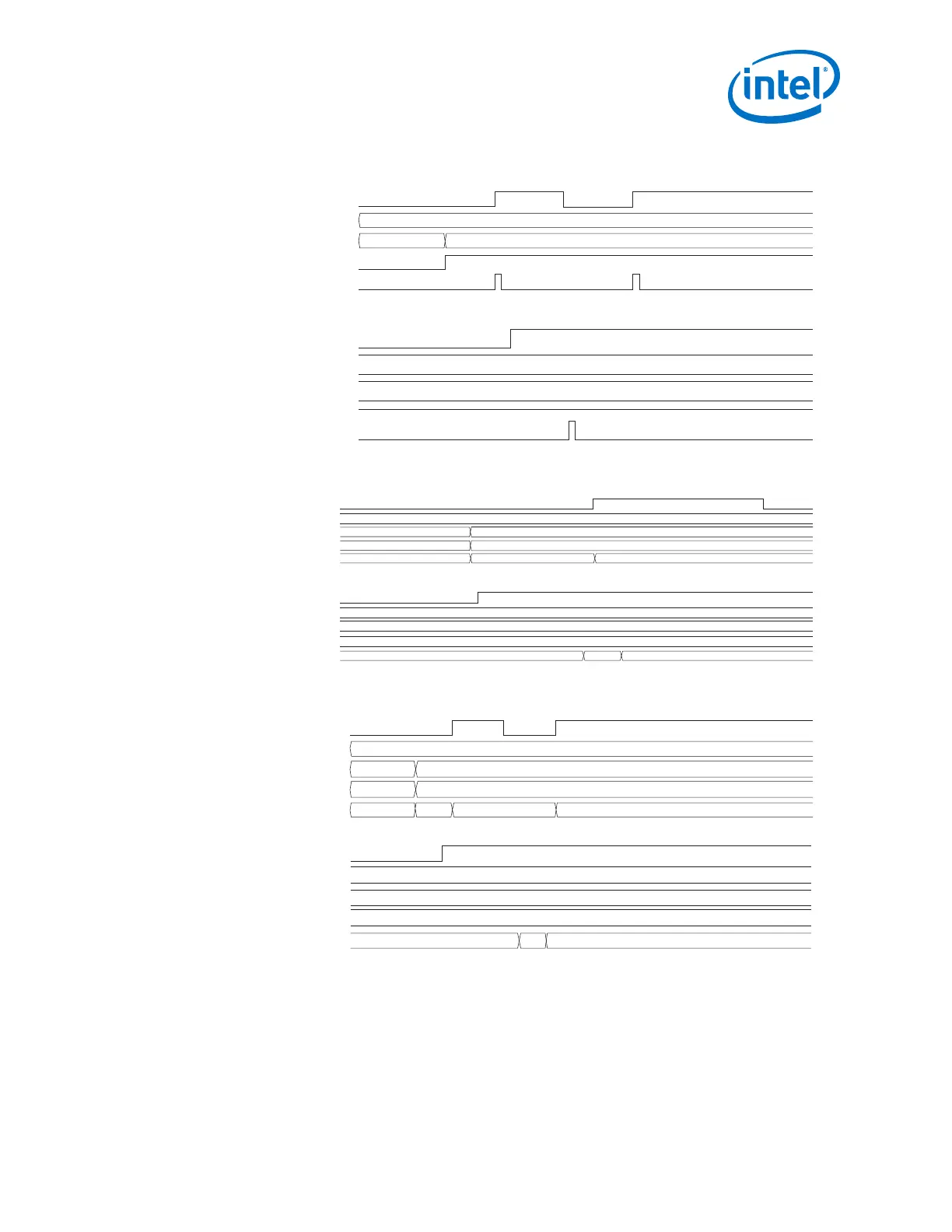

Figure 133. Manual Mode when the PCS-PMA Interface Width is 10 Bits
tx_parallel_data = 10'h3BC and the word aligner pattern = 10'h3BC
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
3bc000
3bc
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
3bc
3bc
Figure 134. Manual Mode when the PCS-PMA Interface Width is 16 Bits
tx_parallel_data = 16'hF3BC and the word aligner pattern = 16'hF3BC
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
f3bc
0000
00
00
01
11 11
f3bc
f3bc
00
01
11
f3bc
11
Figure 135. Manual Mode when the PCS-PMA Interface Width is 20 Bits
tx_parallel_data = 20'hFC3BC and the word aligner pattern = 20'hFC3BC
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
rx_std_wa_patternalign
tx_parallel_data
rx_parallel_data
rx_patterndetect
rx_syncstatus
fc3bc
0000
00 01
1100 11 11
fc3bc
fc3bc
00
01
11
fc3bc
11
2.9.2.2. Word Aligner Synchronous State Machine Mode
To use this mode:
• Select the Enable TX 8B/10B encoder option.
• Select the Enable RX 8B/10B decoder option.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
303
