Intel Arria 10 User Manual

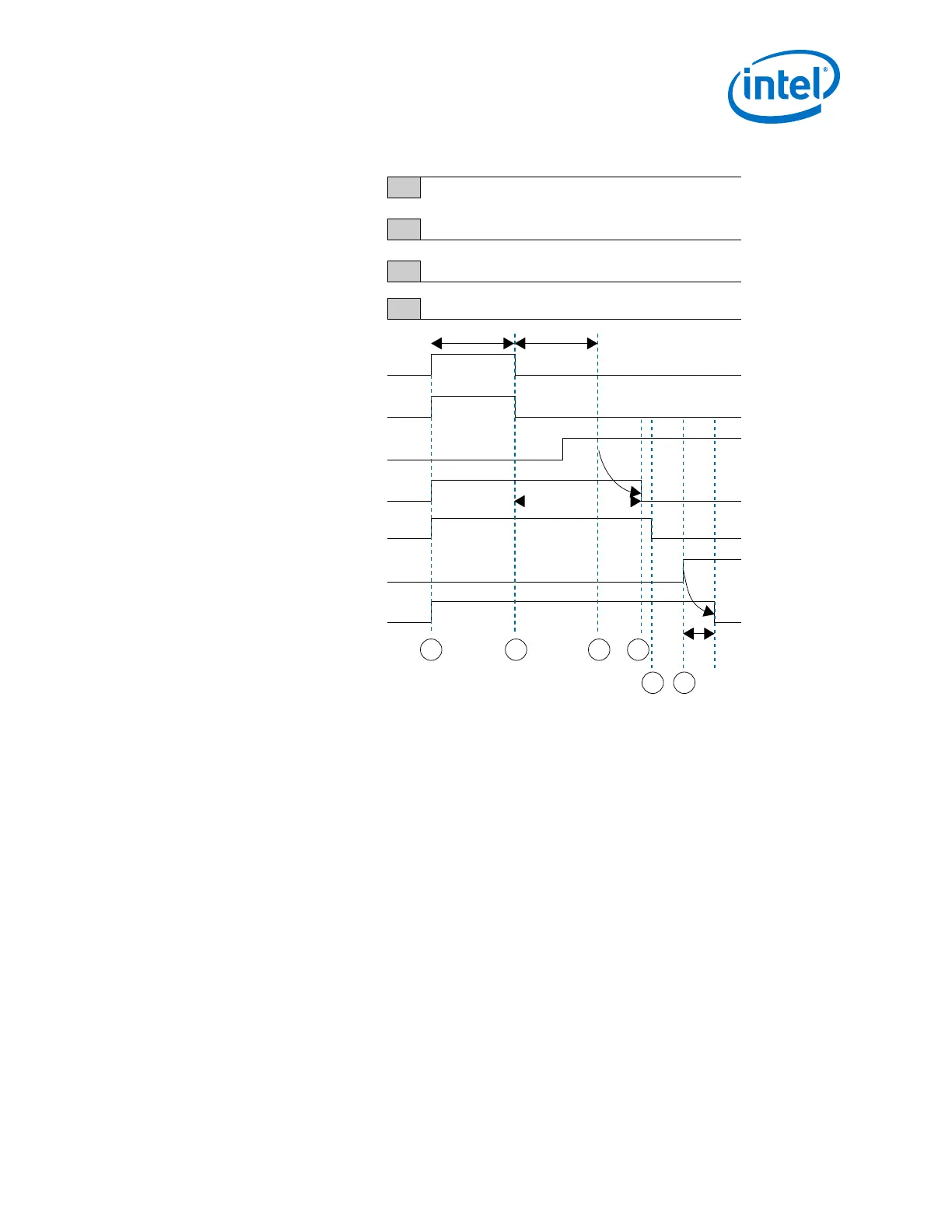

Figure 205. Resetting the Transceiver Channel During Device Operation
Device Power Up
pll_cal_busy
tx_analogreset
pll_locked
tx_digitalreset
1 3
tx_cal_busy
rx_cal_busy
pll_powerdown
5 6
4
rx_is_lockedtodata
rx_digitalreset
rx_analogreset
t
req
= 70 μs
t
req
t
req
2
t
LTD
min 4 μs
rx_digitalreset
t
min 70 μs
4.3.1.1.4. Dynamic Reconfiguration of Channel Using the Default Model
TX Channel
The numbers in this list correspond to the numbers in the following figure.
1.
Assert tx_analogreset, pll_powerdown, and tx_digitalreset, while
pll_cal_busy and tx_cal_busy are low.
2. Perform dynamic reconfiguration after minimum 70 μs of asserting
tx_analogreset.
3.
Deassert pll_powerdown after performing a dynamic reconfiguration.
Deassert tx_analogreset. This step can be done at the same time or after you
deassert pll_powerdown.
4.
The pll_locked signal goes high after the TX PLL acquires lock. Wait for
minimum 70 μs after deasserting tx_analogreset to monitor the pll_locked
signal.
5.
Deassert tx_digitalreset after pll_locked goes high. The
tx_digitalreset signal must stay asserted for a minimum t
tx_digitalreset
duration after tx_analogreset is deasserted.
4. Resetting Transceiver Channels
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
425

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
