Intel Arria 10 User Manual

a. Perform dynamic reconfiguration.
b.
Deassert pll_powerdown after t
pll_powerdown
.
c.
Deassert tx_analogreset. This step can be done at the same time or after
you deassert pll_powerdown.
3.
Wait for tx_analogreset_ack to go low, to ensure successful deassertion of
tx_analogreset. tx_analogreset_ack goes low when TRS has successfully
completed the reset request for deassertion.
4.
The pll_locked signal goes high after the TX PLL acquires lock. Wait for
tx_analogreset_ack to go low before monitoring the pll_locked signal.
5.
Deassert tx_digitalreset a minimum t
tx_digitalreset
time after pll_locked
goes high.

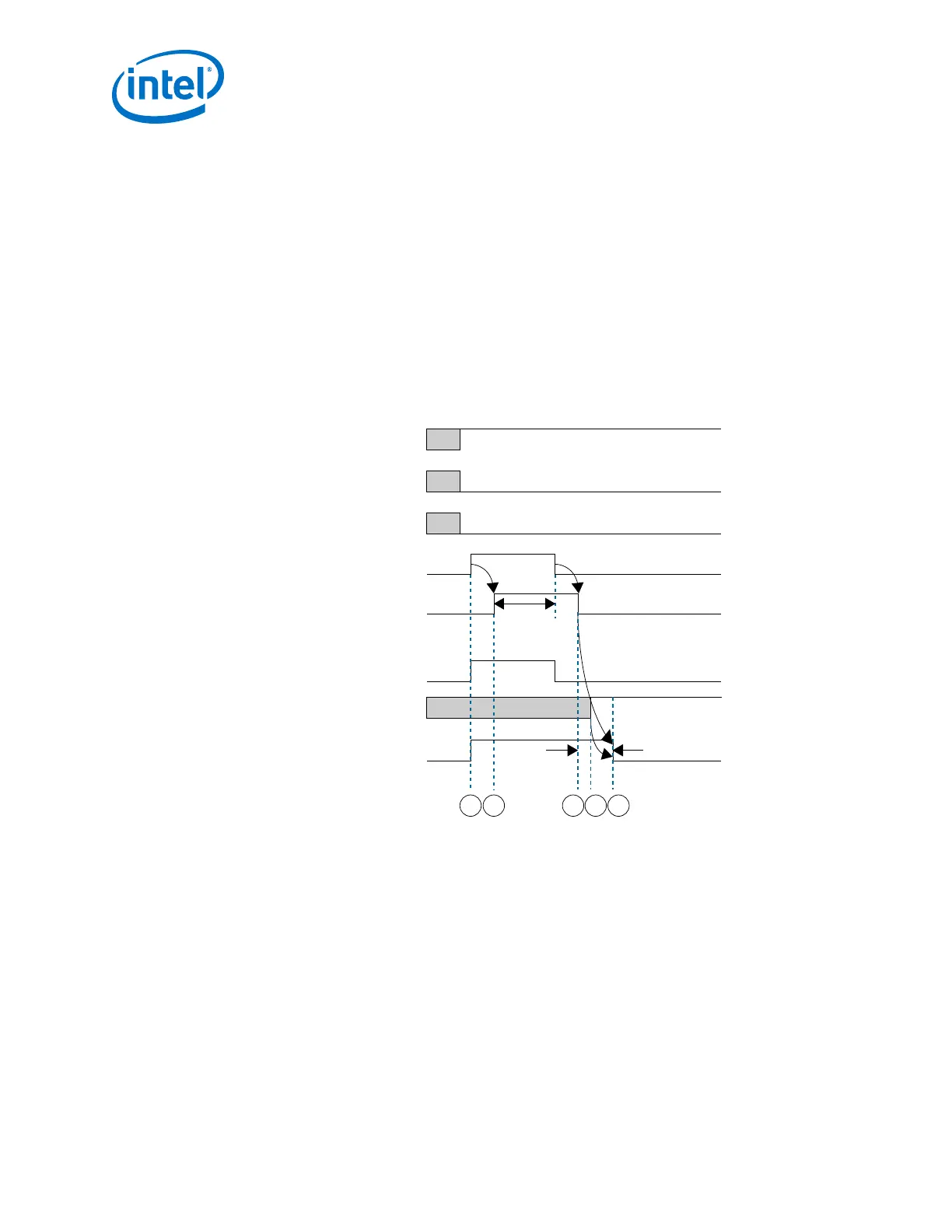

Figure 212. Dynamic Reconfiguration of Transmitter Channel During Device Operation
Device Power Up
pll_cal_busy
tx_cal_busy
tx_analogreset
pll_powerdown
pll_locked
tx_analogreset_ack
1 2 3 54
tx_digitalreset
t
tx_digitalreset
Legal
Reconfiguration
Window
Area in gray is don’t care zone.
Note:
(1)
4.3.2.1.4. Dynamic Reconfiguration of Receiver Channel Using the Acknowledgment Model
The numbers in this list correspond to the numbers in the "Dynamic Reconfiguration of
Receiver Channel During Device Operation" figure below.
1.
Assert rx_analogreset and rx_digitalreset while rx_cal_busy is low.
4. Resetting Transceiver Channels
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
430

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
