Intel Arria 10 User Manual

The PRBS checker has the following control and status signals available to the FPGA
fabric:
•
rx_prbs_done—Indicates the PRBS sequence has completed one full cycle. It
stays high until you reset it with rx_prbs_err_clr.
•
rx_prbs_err—Goes high if an error occurs. This signal is pulse-extended to
allow you to capture it in the RX FPGA CLK domain.
•
rx_prbs_err_clr—Used to reset the rx_prbs_err signal.
Enable the PRBS checker control and status ports through the Native PHY IP
Parameter Editor in the Quartus Prime software.
5.2.2.7. Pseudo Random Pattern Verifier
The Pseudo Random Pattern (PRP) verifier is available for 10GBASE-R and 10GBASE-R
1588 protocol modes. The PRP verifier block operates in conjunction with the
descrambler. The PRP verifier monitors the output of the descrambler when block
synchronization is achieved.
The rx_prbs_err error signal is shared between the PRBS checker and the PRP
verifier.
The PRP verifier:
• Searches for a test pattern (two local faults, or all 0s) or its inverse
• Tracks the number of mismatches with a 16-bit error counter

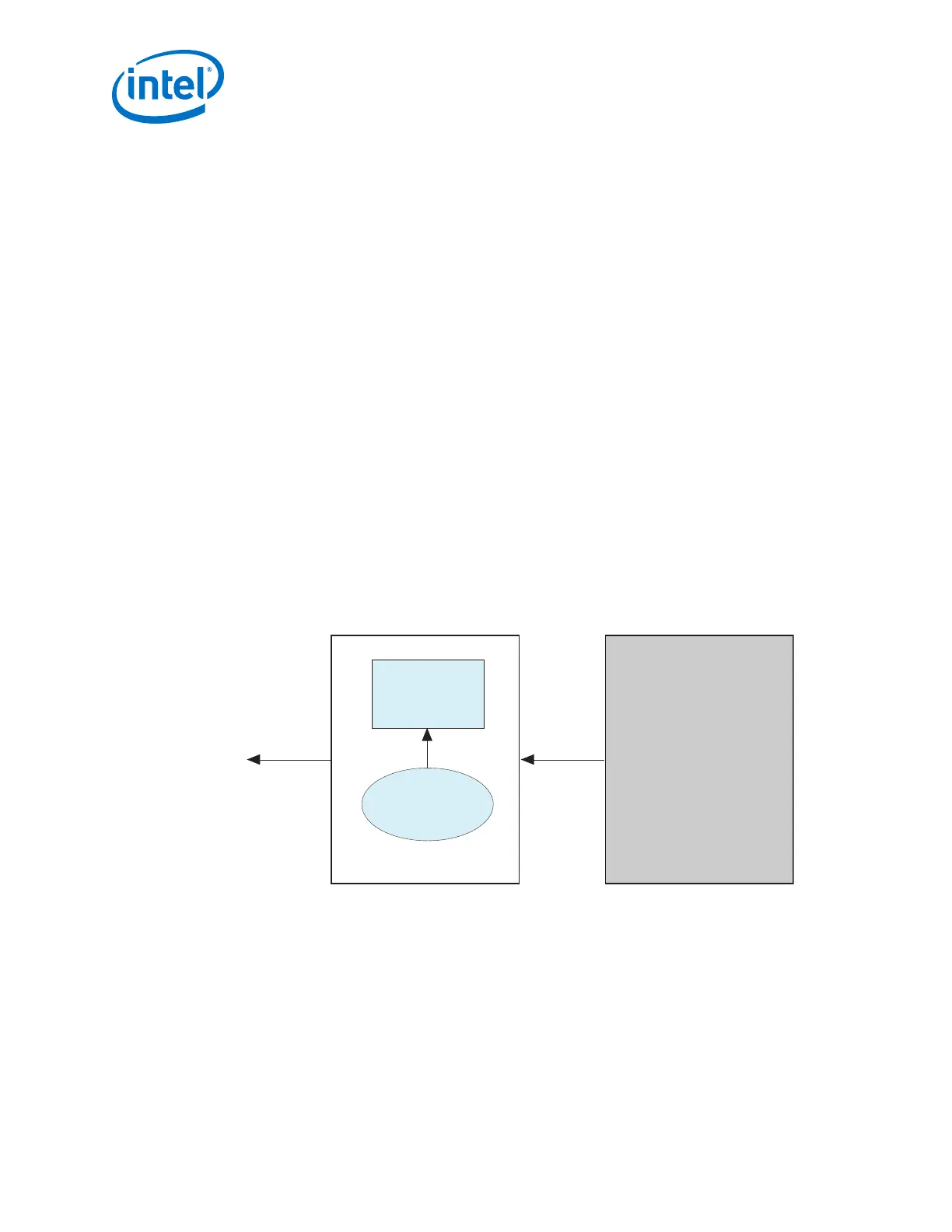

Figure 247. PRP Verifier
Error
Counter
Test Pattern
Detect
Pseudo Random
Verifier
error_count
Descrambler
Refer to the Reconfiguration Interface and Dynamic Reconfiguration chapter for
configuration details.
Related Information
Reconfiguration Interface and Dynamic Reconfiguration on page 502
5. Arria 10 Transceiver PHY Architecture
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
474

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
