Keysight M8000 Series of BER Test Solutions User Guide 123
Quick Tour with M8070A User Interface 3
Save Instrument State
To save an instrument state, do the following:

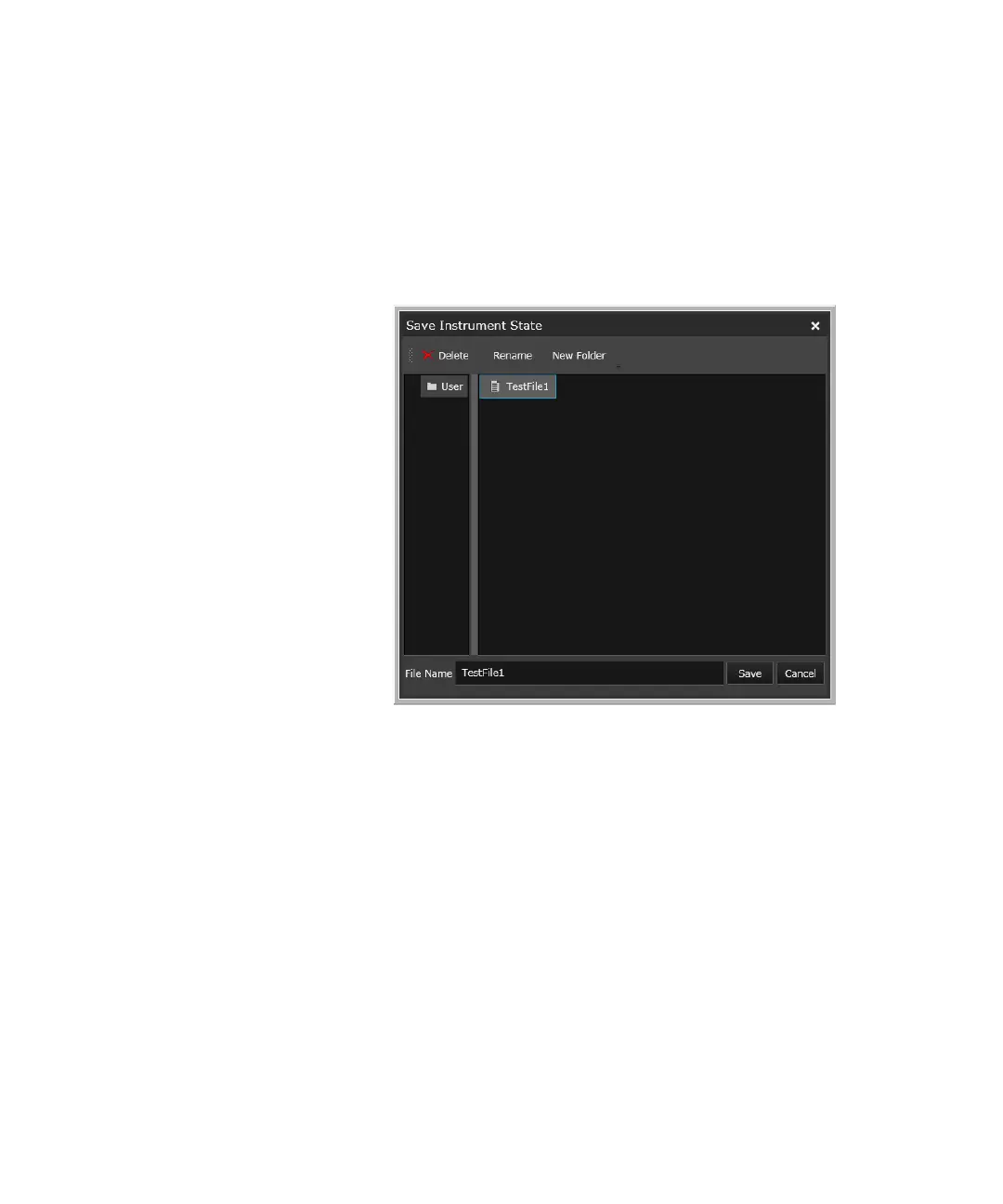

1Go to File menu and then click Save Instrument State.... The Save
Instrument State dialog will appear as shown in the following figure.
2 Enter a file name and click Save. The current settings will be saved
under the filename.
3 To rename a file, select the file and click Rename. The filename will
become editable.
4 To delete a file, select the file and click Delete.
5 To add new folder, select location you want to create your folder and
then click New Folder.
6 To rename a folder, select the folder and click Rename. The folder
name will become editable.
7 To delete a folder, select the folder and click Delete.
