Keysight M8000 Series of BER Test Solutions User Guide 185
User Interface - M8020A Display Views 4
Group View
The Group View allows you to:
• Add/remove ports of a group.
• Set the properties of functional block of a group.
How to Launch Group View
The Group View is automatically launched when you create a group from
the Module View. For details, refer to Creating Groups in the Module View
on page 155.
However, you also launch the Group View from the main GUI. To do so:
•Go to the Menu Bar > System and then select Group View.

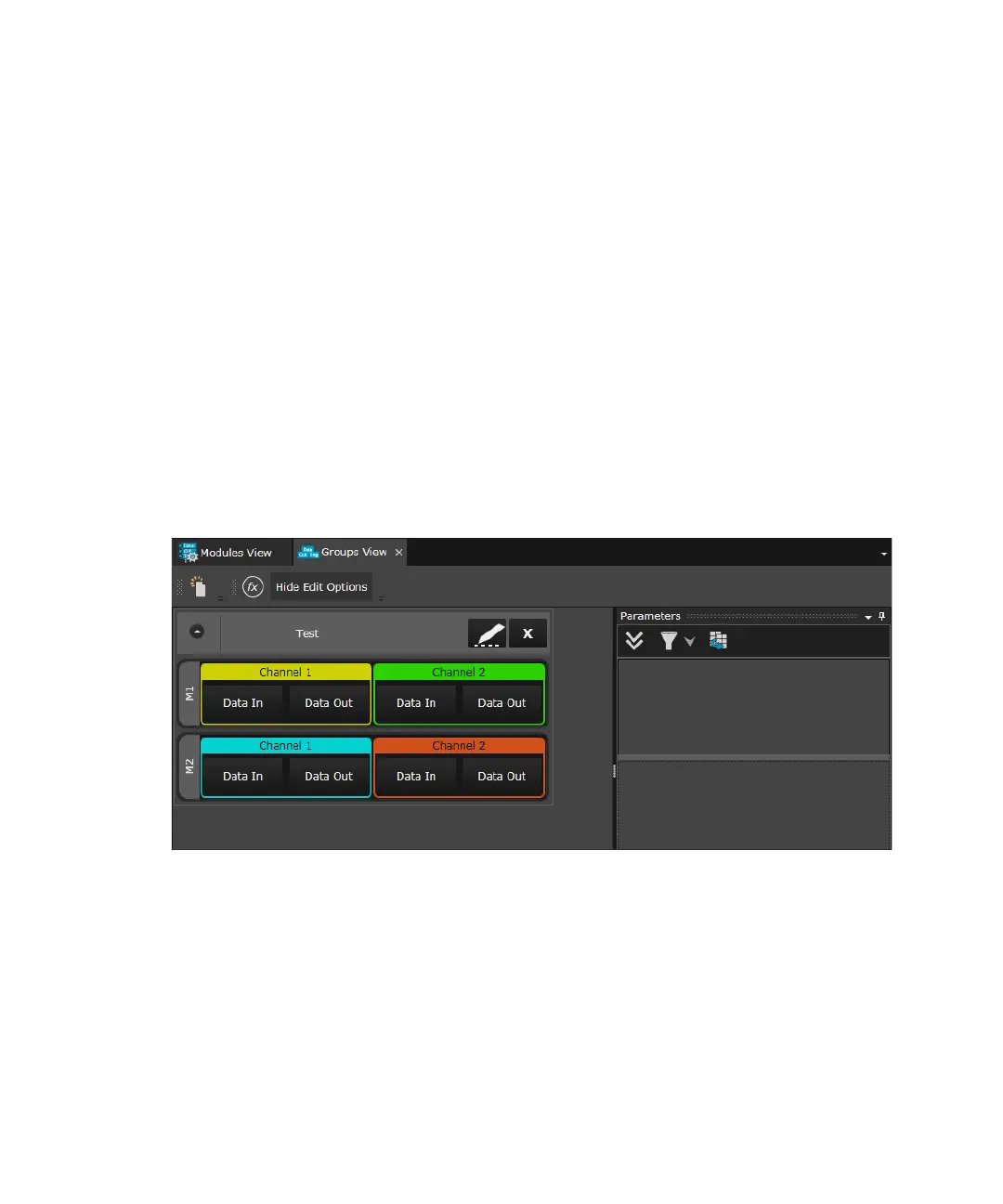

The Group View will appear as shown in the following figure:
The Group View includes the following elements:
•Tool bar
•Group View
