360 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns
How to Launch a Sequence Editor
To launch the Sequence Editor:
•Go to the Menu Bar > Patterns and then select Sequence Editor.

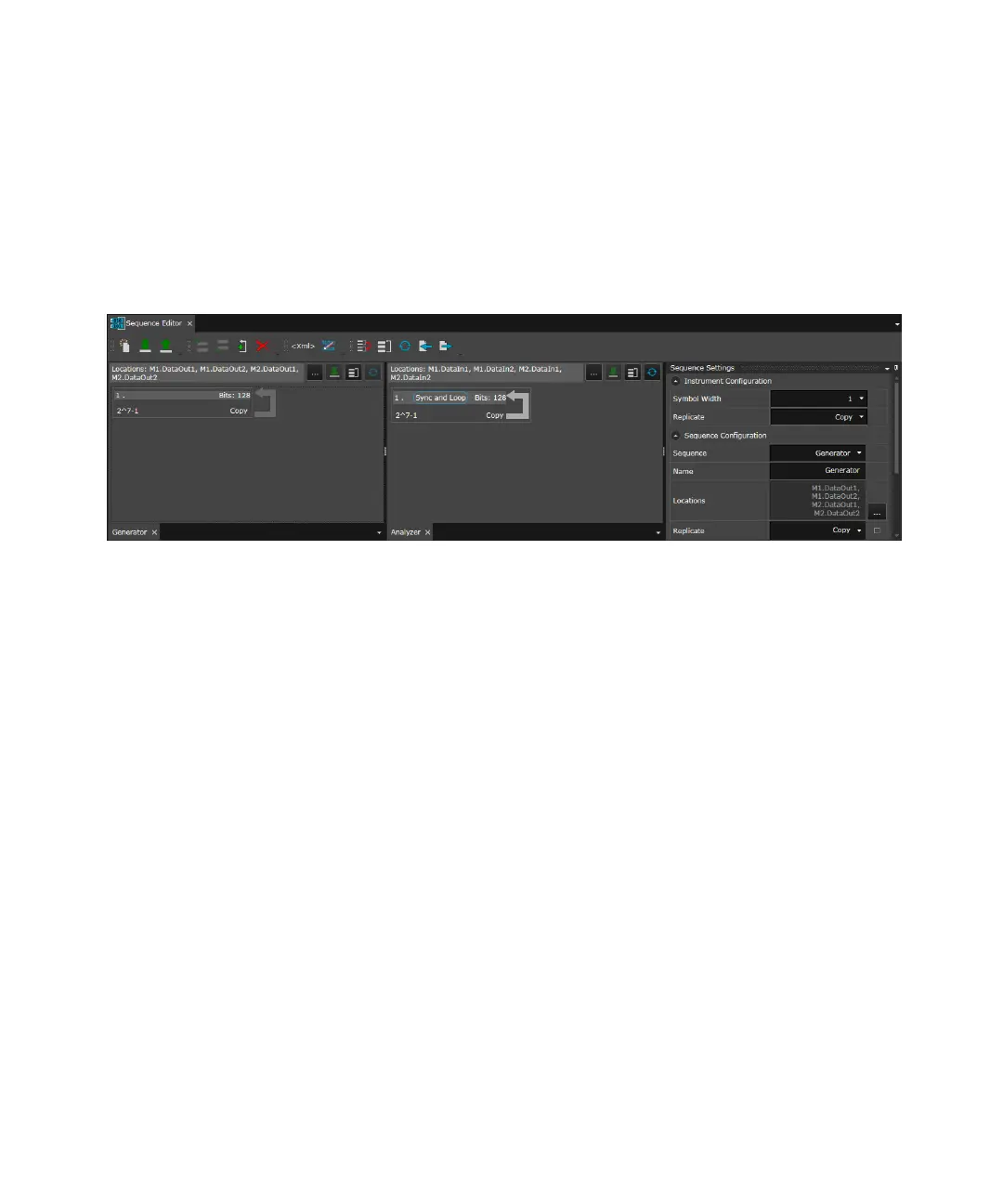

The Sequence Editor will appear as shown in the following figure:
The Sequence Editor user interface includes the following elements:
•Toolbar
• Sequence Control Pane
• Sequence Settings Window
• Pattern Edit Pane
These GUI elements are described in the section that follows.
