414 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns

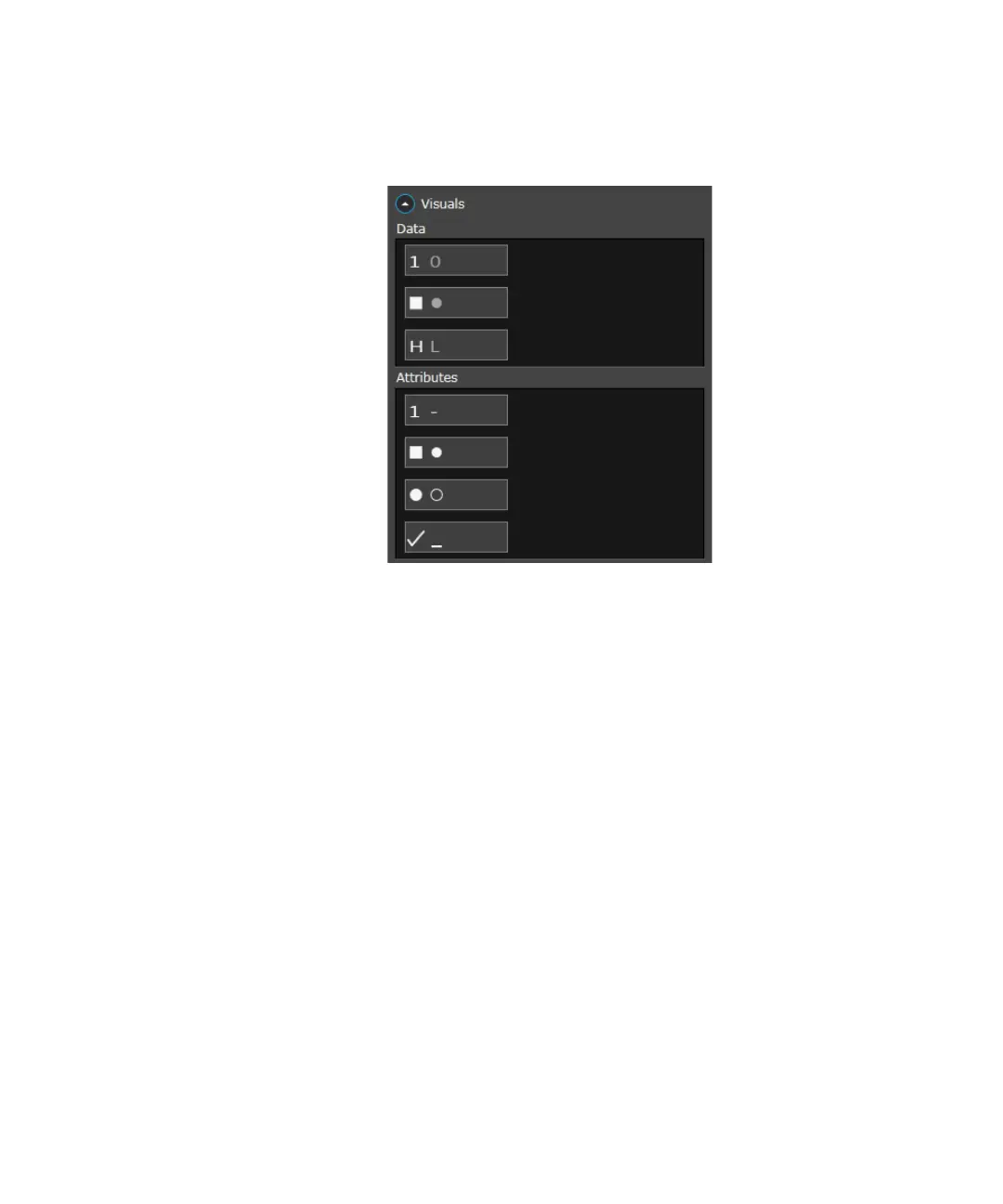

Pattern Edit Pane
The pattern edit pane displays the pattern and also allows you to edit it.
The pattern edit pane shows the symbol and data. You can edit selected
data using the keyboard keys. Remember, the pattern edit pane does not
allow you to enter any wrong data.
The pattern edit pane allows you to import and export patterns. For details
on how to import and export the patterns, refer to Importing Patterns on
page 406 and Exporting Patterns on page 408.
The pattern edit pane also allows you to save the current pattern with
other pattern coding. You can right click on the pattern edit pane and use
the context menu option (Save As) to save the current pattern or save the
selected range of pattern. For details, refer Saving Patterns on page 403.
The pattern edit pane also allows the copy/paste functionality. Once you
select the symbols in a pattern, you can copy them and paste it anywhere
in the pattern. You can perform the copy/paste operations in the following
ways:
• Click on Copy/Paste icons
• Use keyboard shortcuts (Ctrl+C, Ctrl+V)
• Right click and use the context menu options
