Keysight M8000 Series of BER Test Solutions User Guide 213
User Interface - M8020A Display Views 4
System View with AWG(s) Integration
This section describes the block diagram provided by the System View
when AWG module is integrated in M8070A. The System View for AWG
varies on the number of channels available on M8195A or M8196A.

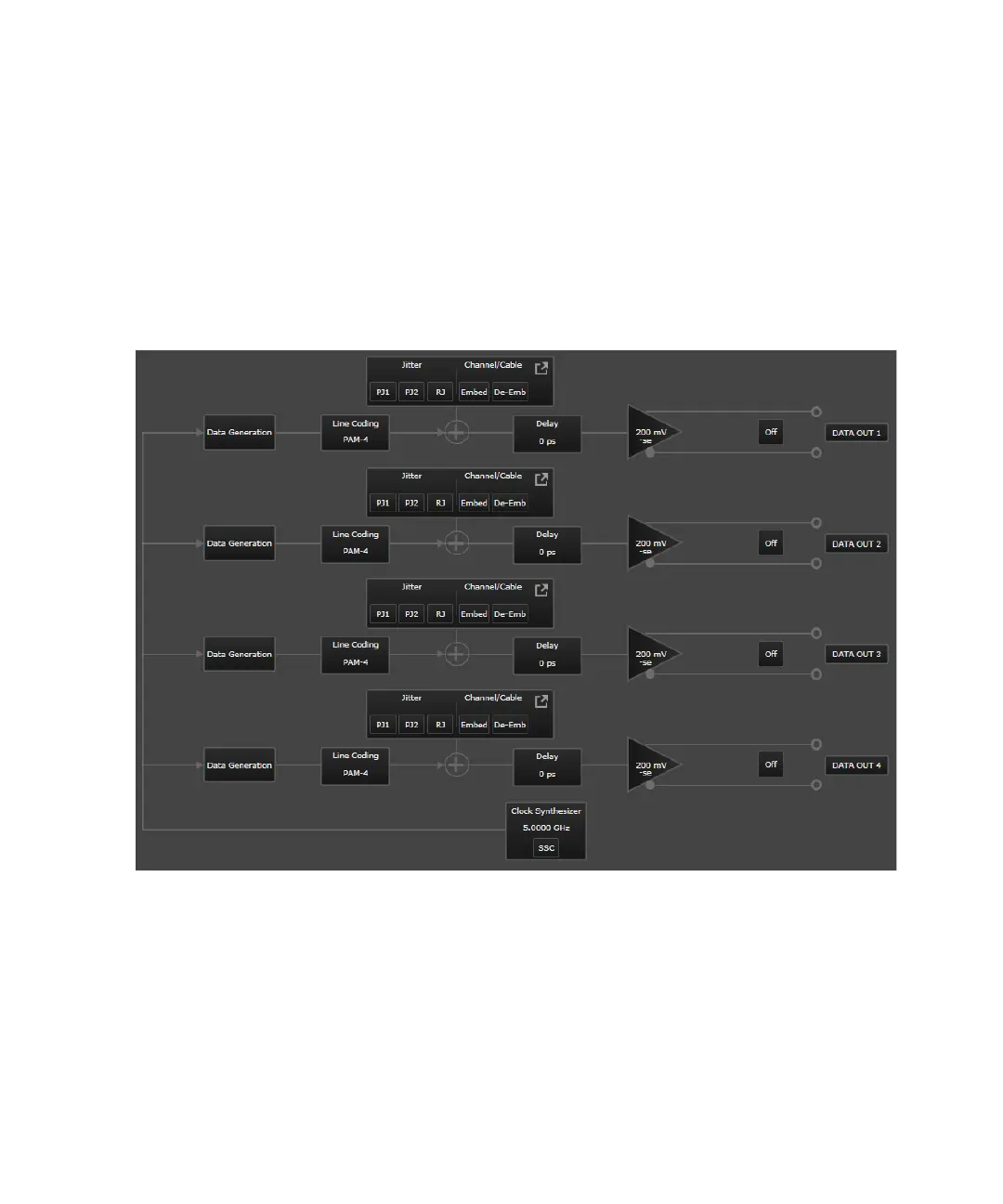

The following figure shows System View of M8195A/M8196A when all
four channels are available.
The System View of AWG shows four Data Out channels in the same
window. The principal parts of the System View are represented by blocks
which are connected by lines/arrows to show the relationship of the
blocks. These blocks are highlighted by blue lines around the block on
mouse focus. On clicking these blocks, the mostly used parameters are
available which can be configured using the on-screen numeric keypad.
However, parameters corresponding to the selected block are displayed in
the Parameters window, on the right. The block may contain feature
