Keysight Technologies M8000 Series User Manual

Keysight M8000 Series of BER Test Solutions User Guide 173
User Interface - M8020A Display Views 4
M8040A System View
The System View displays the block diagram representation of the
currently selected channel of the M8040A modules (M8045A and
M8046A). In addition, it also allows you to interactively modify the settings
for each channel.

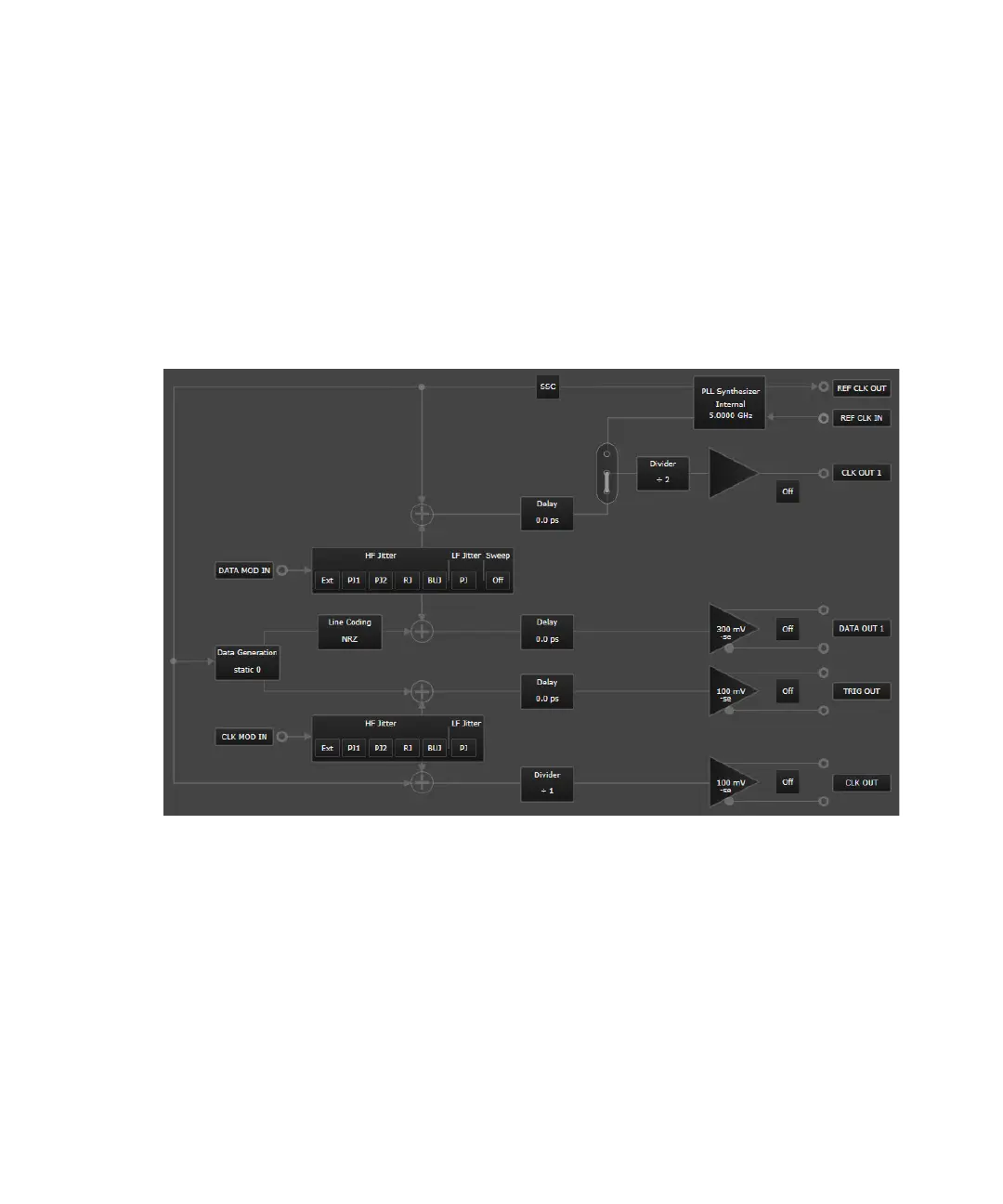

The following figure shows the System View of channel 1 of the M8045A
module (M1):
