4 User Interface - M8020A Display Views
System View
The System View displays the block diagram representation of the
currently selected channel of the M8020A/M8030A. In addition, it also
allows you to interactively modify the settings for each channel.

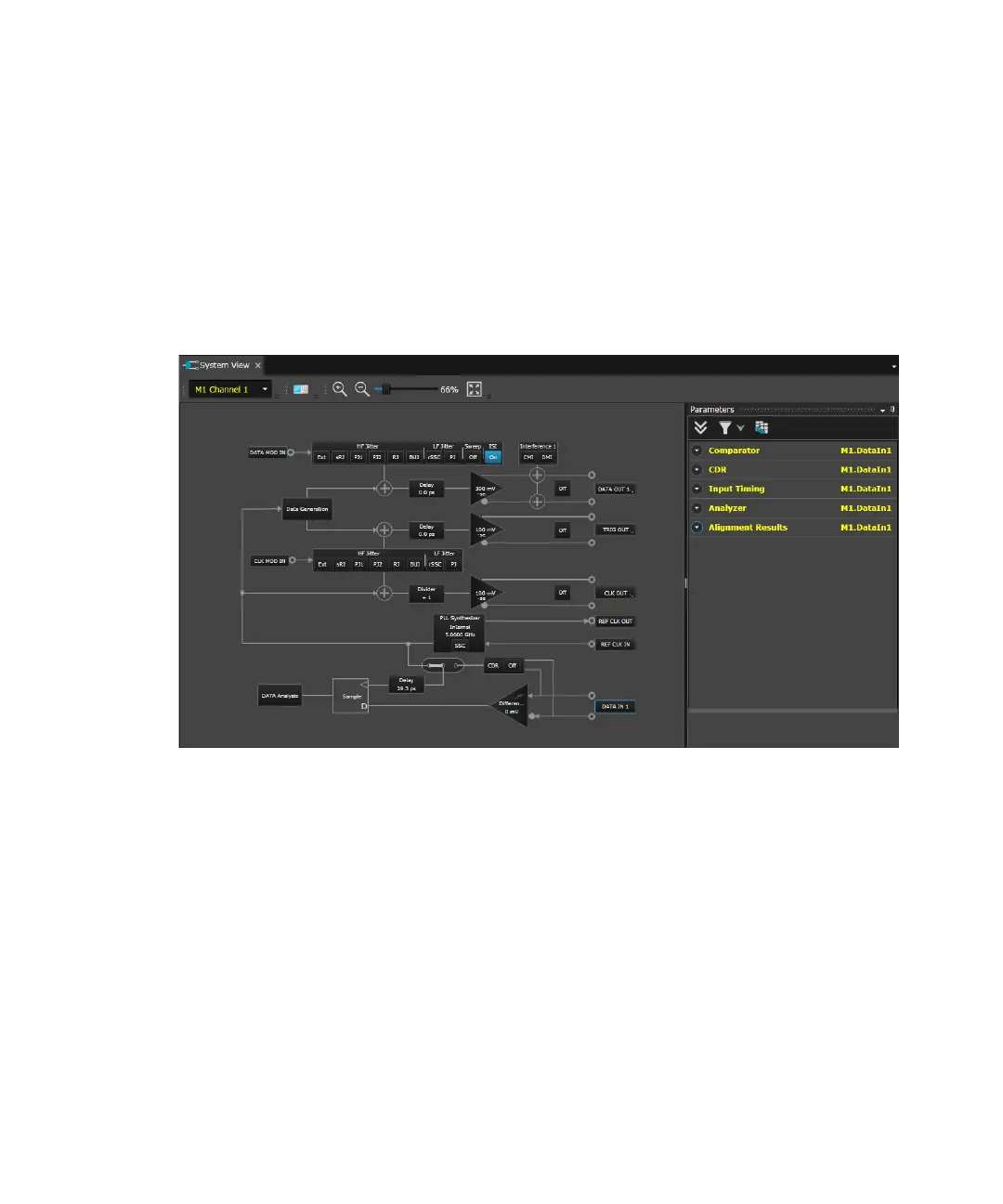

The System View user interface is shown in the following figure.
The principal parts are represented by blocks which are connected by
lines/arrows to show the relationship of the blocks. These blocks are
highlighted by the blue lines around block on mouse focus and the
corresponding parameters are displayed in the Parameters window. The
block may contain feature elements (for example, LF Jitter contain PJ and
rSSC). You can click on the respective button to enable the feature
elements. Once enabled, the feature elements are highlighted in blue
color.
