Equalization in M8062A Data In
The M8062A Data In provides pre-defined equalization presets on
incoming signals for the data rates above 20 Gb/s.
Follow the given steps to perform equalization in the M8062A Data In:
1Go to Menu Bar > Analyzer and then select Data In.
2 Select Input Timing functional block from the Parameters window.

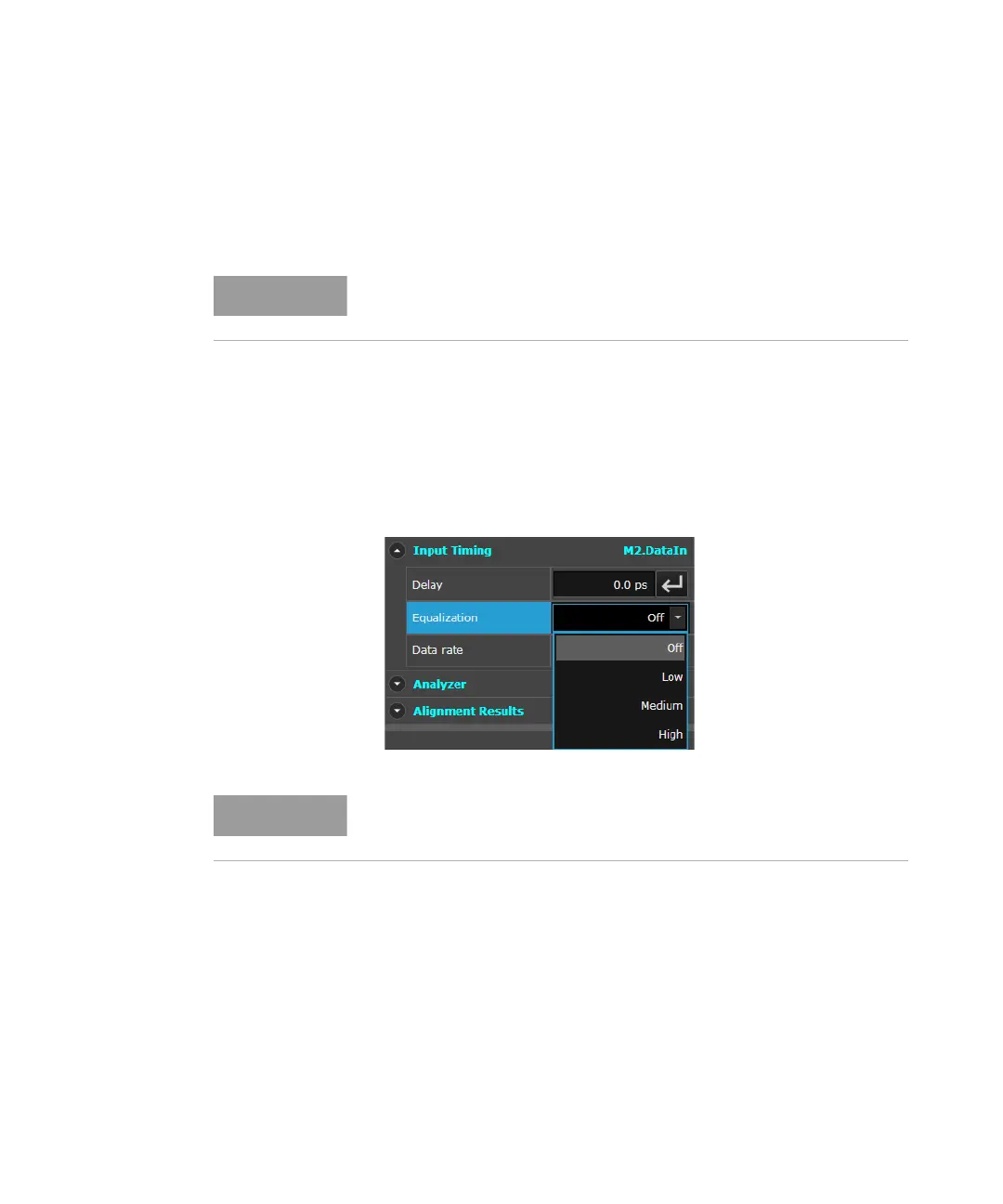

3 Select the Equalization preset form the provided drop-down list. The
available equalization presets are Low, Medium or High.
NOTE
The Equalization option in the M8062A user interface will be enabled for
the data rates above 20 Gb/s.
NOTE
The M8062A-0A3 license is required to enable the equalization feature
in M8062A Data In.
