230 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
FlexDCA and N1076A/77A Documentation
Click on the following links to access the N1076A/77A related documents:
N1076A/77A Data Sheet
http://literature.cdn.keysight.com/litweb/pdf/5992-1620EN.pdf?id=2772
197
N1076A/77A User Guide
http://literature.cdn.keysight.com/litweb/pdf/N1076-90001.pdf?id=2784
631
N1010A FlexDCA Online Help
http://www.keysight.com/main/redirector.jspx?action=ref&cname=EDITO
RIAL&ckey=2038334&lc=ger&cc=DE&nfr=-11143.0.00
Offline Usage
It is possible to run M8070A in an offline configuration for the external
clock recovery. This can be useful to get familiar with the use model or
when preparing remote programs without having the actual hardware
available.
The easiest way of getting the offline configuration is to start with an
online configuration and then simply leaving the cock recovery turned off,
the next time M8070A is being started.
If a clock recovery is not available to prepare the offline configuration, then
this can still be achieved manually.
1 Start N1010 FlexDCA Software.

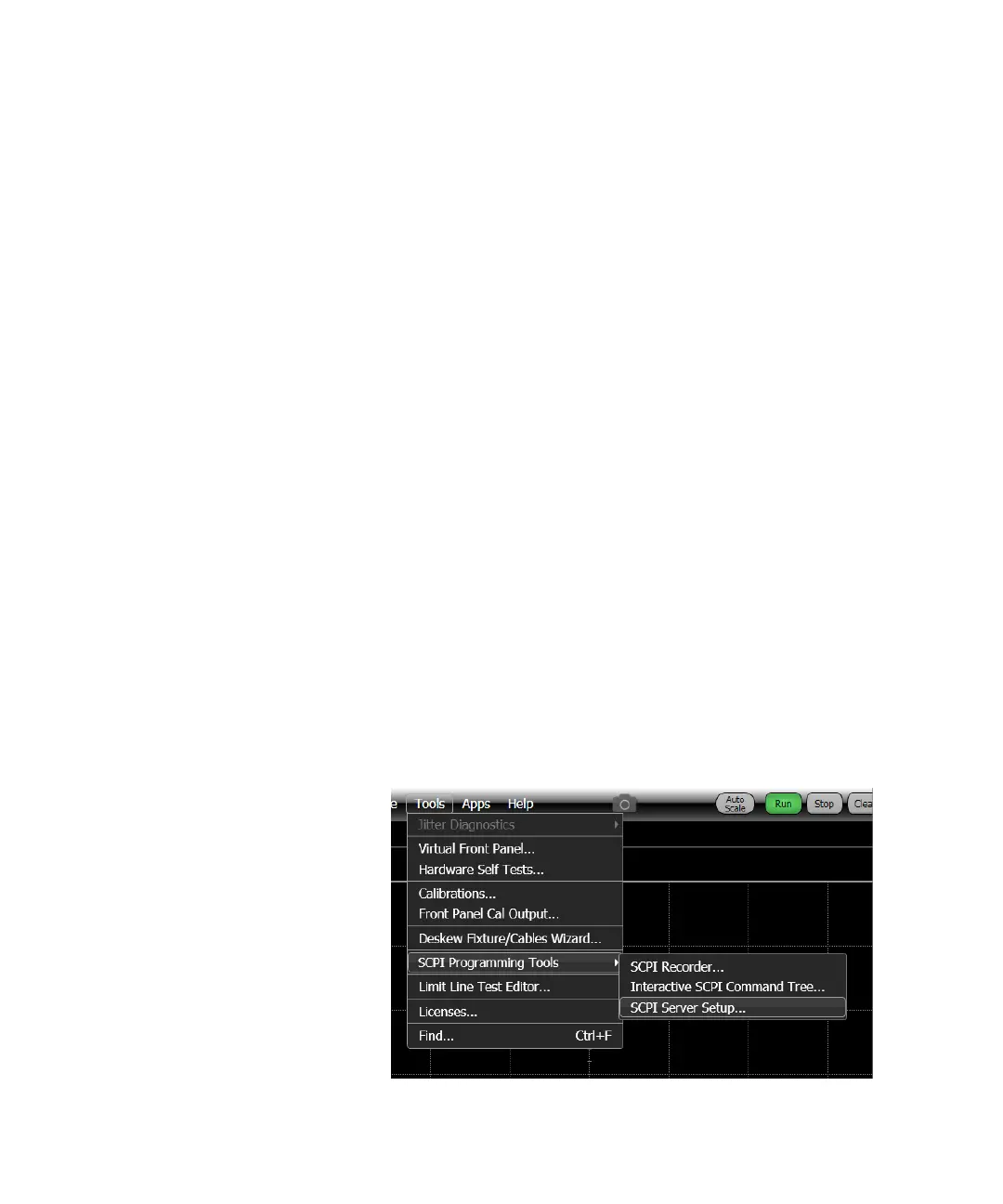

2 In FlexDCA open the Interactive SCPI Command Tree.
