User Interface - M8020A Display Views 4
Selecting Single/Multiple Ports
You can select either single or multiple ports by pressing the toggle
button, available on the top of the main window. It provides the following
modes selection:
Single Selection Mode - allows you to select only one port at a time
from the connected modules.
Multiple Selection Mode - allows you to select multiple ports from
the connected modules.
Parameters Window
The Parameters window displays the functional blocks of the selected
port/port groups. Each functional block has a set of parameters. The
Parameters window also allows you to set the parameters of the selected
port/port groups.
If you try to set a parameter which conflicts with other parameter or in
other words is dependent on other parameter, a Auto Correct
Confirmation dialog appears. For details, see Auto Correction
Confirmation Dialog on page 140.

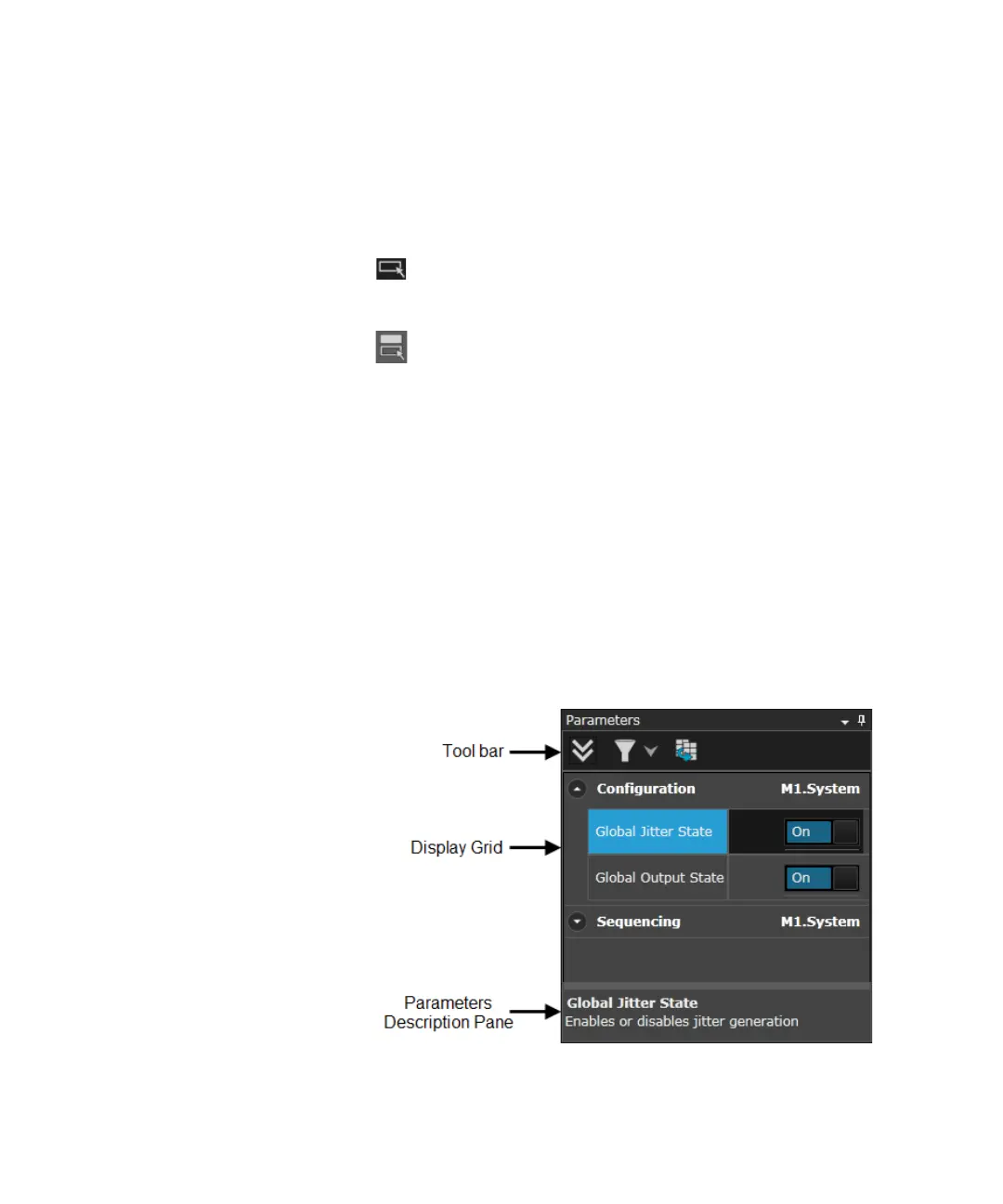

The Parameters window is shown in the following figure:
