432 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns

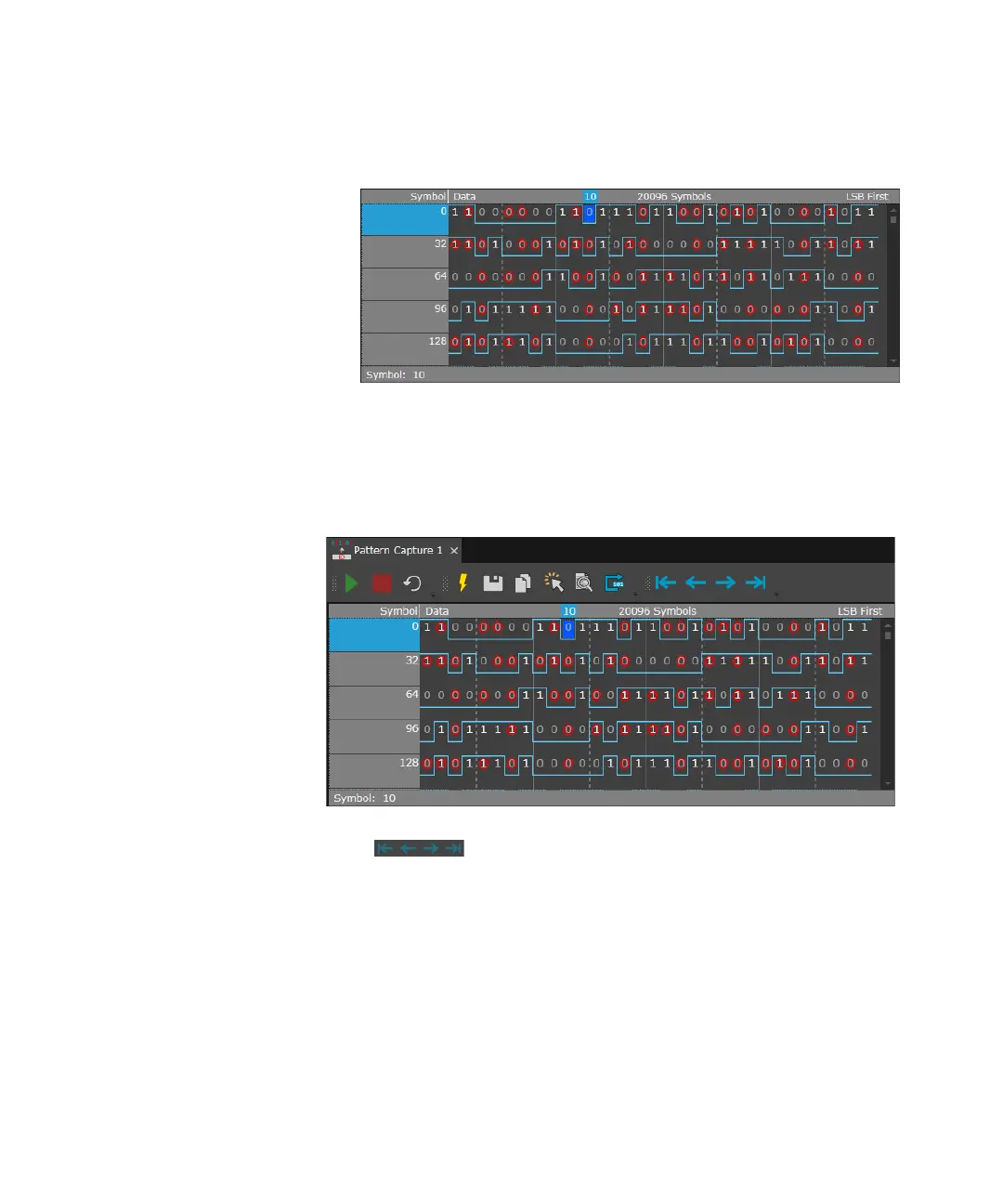

Pattern Capture Pane
The Pattern Capture Pane displays the captured pattern in the binary or
8b/10b symbol coding.
The errored bits in the captured patterns are marked red. You can use the
Error Navigation buttons to jump to next, previous, first or
last error.
Please note that the Pattern Capture pane does now allow to editing
feature. This means you cannot edit the captured pattern. However, if you
want to edit a captured pattern, you have to first save it and then open in
the Pattern Editor. For details on how to edit pattern, refer to Editing a
Pattern on page 417. Using a Pattern Editor, you can also save the results
in different encoding schemes.
