Keysight M8000 Series of BER Test Solutions User Guide 311
Setting up Analyzer 6
M8020A/M8030A/M8040A Analyzer Ports
The M8020A/M8030A/M8040A analyzer’s ports are used for running tests
and for connecting external equipment.

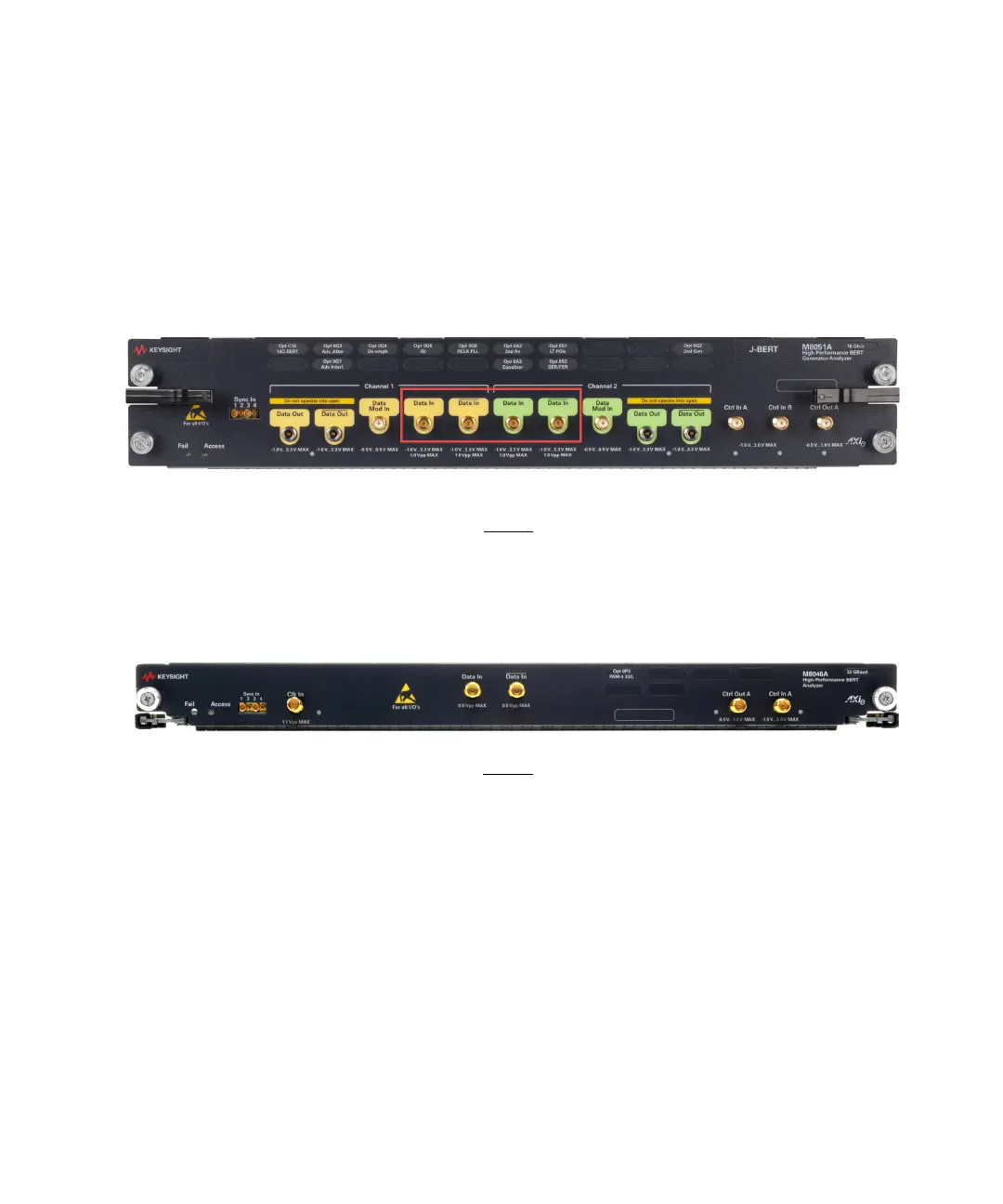

The following figure shows the J-BERT M8041A analyzer’s ports.
The M8041A analyzer’s ports include the following:
• Data In and Data In
This port is connected to the data signal and the inverted data signal.
The following figure shows the M8040A analyzer’s (M8046A) ports.
The M8046A analyzer’s ports include the following:
• Data In and Data In
This port is connected to the data signal and the inverted data signal.
•Clk In
This is a clock input port to sample the incoming data. Supports
full/half and quarter-rate clock. Single ended.
•Ctrl In A
This port can be used as sequence trigger or pattern capture event.
• Ctrl Out A
This port outputs a pulse in case of an error. It generates a pulse or
static high/low if used from sequencer.
