296 Keysight M8000 Series of BER Test Solutions User Guide
5 Setting up Generator
Jitter Setup
The Jitter Setup function is used for composing the total jitter in a defined
and calibrated way.
The M8020A/M8030A/M8040A supports the following types of jitters:
• High Frequency Jitter (HF Jitter)
• Low Frequency Jitter (LF Jitter)
High Frequency Jitter (HF Jitter)
The High Frequency Jitter is a composition of the following types of jitters:
• Periodic Jitter 1
• Periodic Jitter 2
• Bounded Uncorrelated Jitter
• Random Jitter
• Spectrally Distributed Random Jitter
• External Jitter Source (Connected to the Delay Ctrl input)
Low Frequency Jitter (LF Jitter)
The Low Frequency Jitter is a composition of the following types of jitters:
• Residual Spread Spectrum Clock
•Periodic Jitter

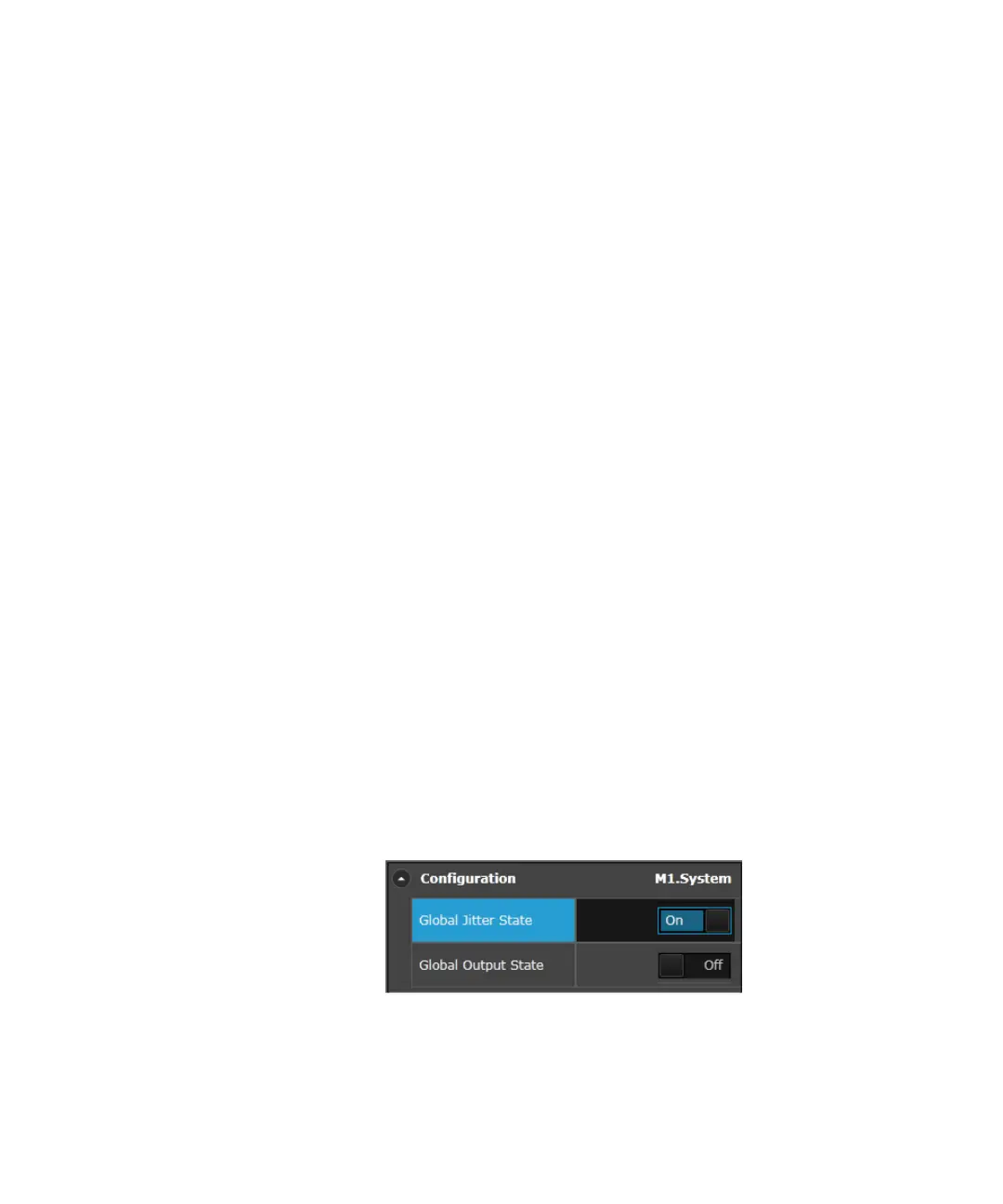

Global Jitter State On/Off Switch
The Jitter On/Off switch allows you to globally enable or disable the jitter
generation.
