Keysight M8000 Series of BER Test Solutions User Guide 433
Setting up Patterns 7
Saving a Captured Pattern
You can save the captured pattern for post processing. To do so;

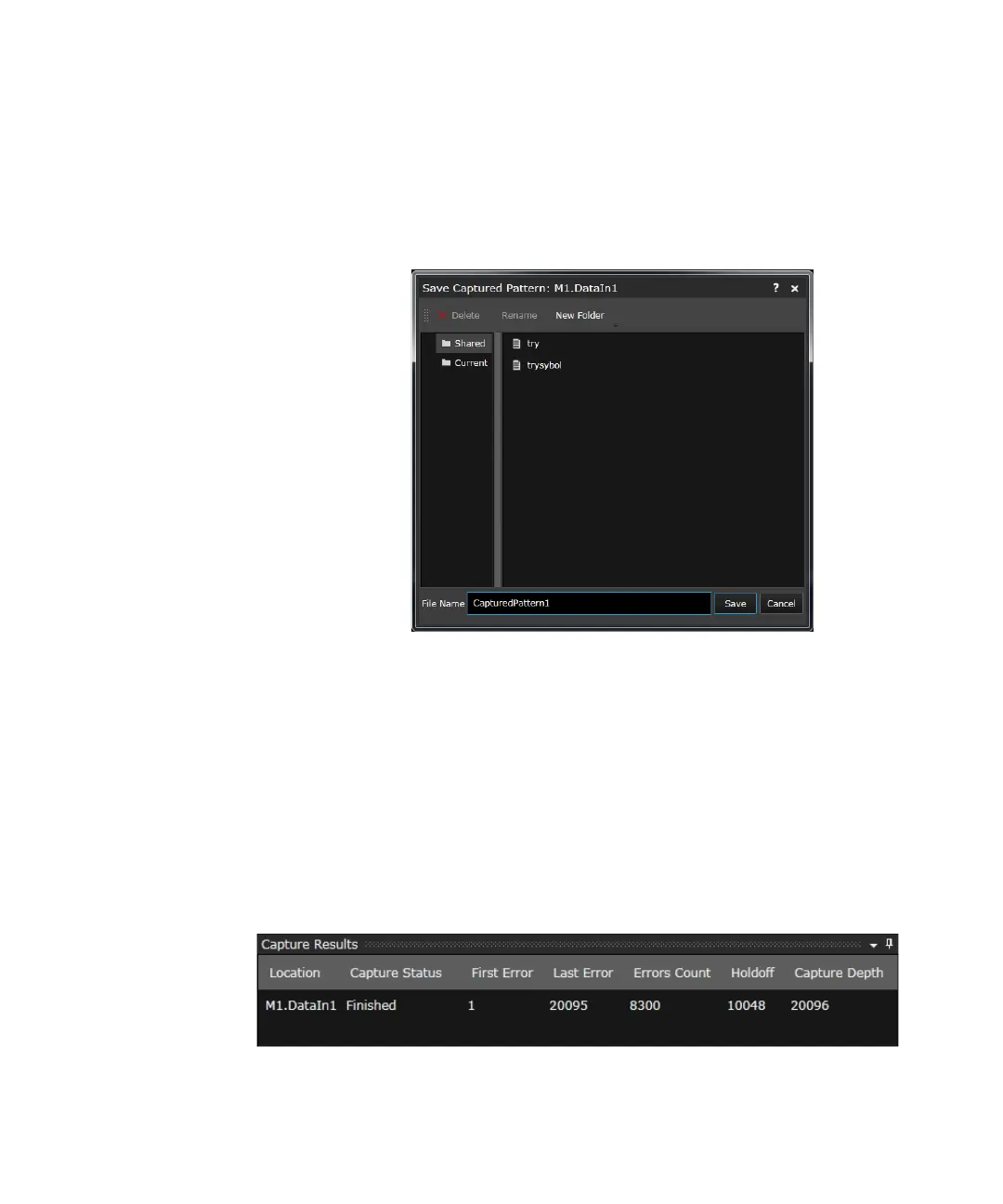

•Click Save icon. This will open a Save Captured Pattern dialog.
• Specify the folder where it will be saved.
• Enter a file name and click Save. The current pattern will be saved
under the filename.
You can open the saved file it in the Sequence Editor and then download it
to module to create a sequences. For details, refer to Sequence Editor on
page 359.
Capture Results Pane
The Capture Results pane displays the results of the patterns captured.
