Keysight M8000 Series of BER Test Solutions User Guide 519
Working with Measurements 8

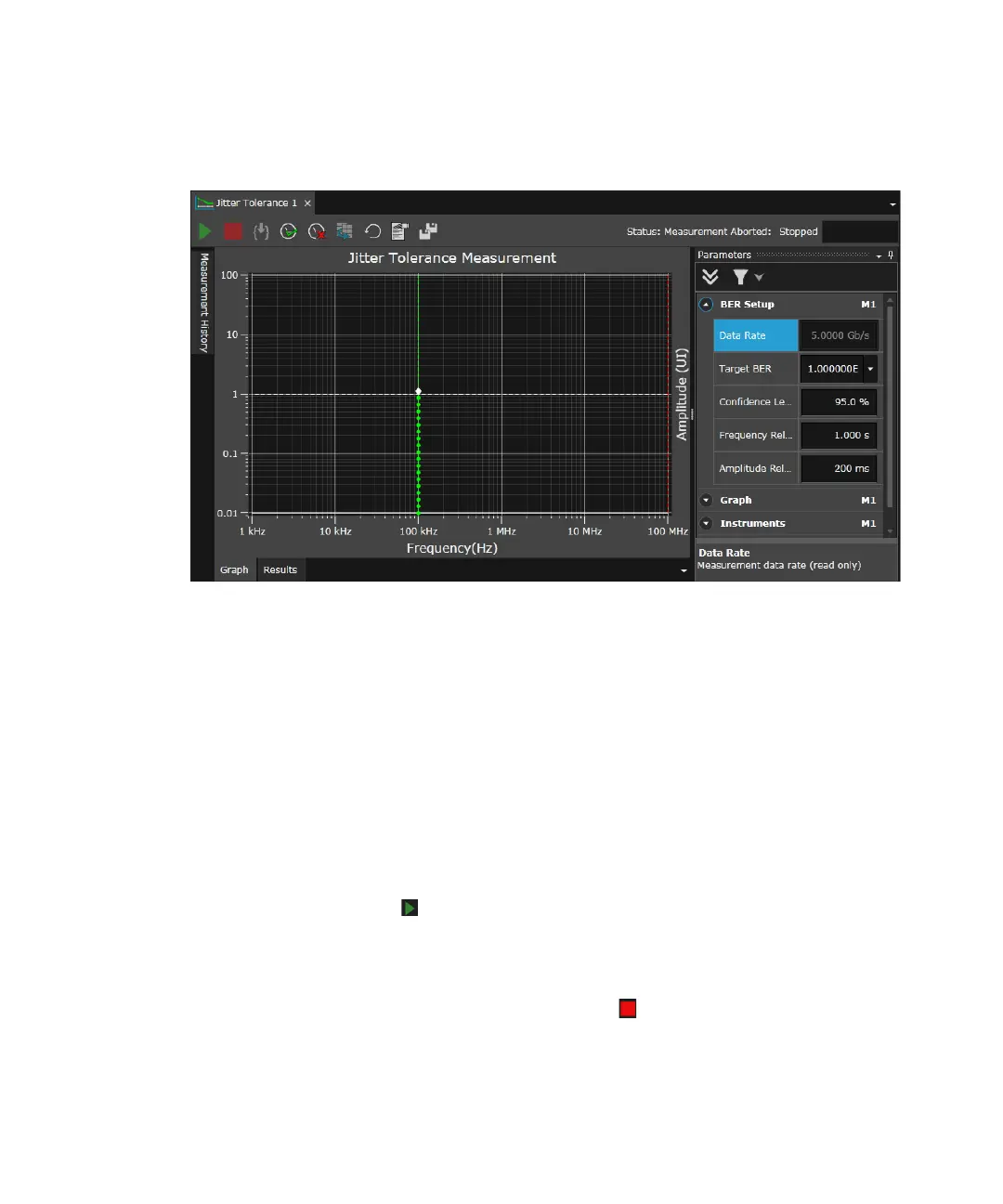

The Jitter Tolerance user interface includes the following GUI elements:
• Toolbar: For details, refer to Toolbar on page 462.
• Status Indicator: For details, refer to Status Indicator on page 463.
• Measurement History Window: For details, refer to Measurement
History Window on page 463.
• Measurement Graph: For details, refer to Measurement Graph on
page 520
• Results Pane: For details, refer to Viewing the Jitter Tolerance Results
on page 521.
How to Run Jitter Tolerance Measurement
Once you have specified the Frequency, BER, and Search criteria, press
the Start Measurement icon to run the measurement. The
measurement status indicator will show the progress.
How to Stop/Abort Jitter Tolerance Measurement
To stop a measurement, click the Stop Measurement icon.
