Keysight M8000 Series of BER Test Solutions User Guide 495
Working with Measurements 8
Output Level Measurement
Overview
The Output Levels measurement allows you to characterize the behavior
of the output levels of a device under test (DUT). The sampling delay is
fixed. The analyzer's decision threshold is automatically swept within a
user-defined range.

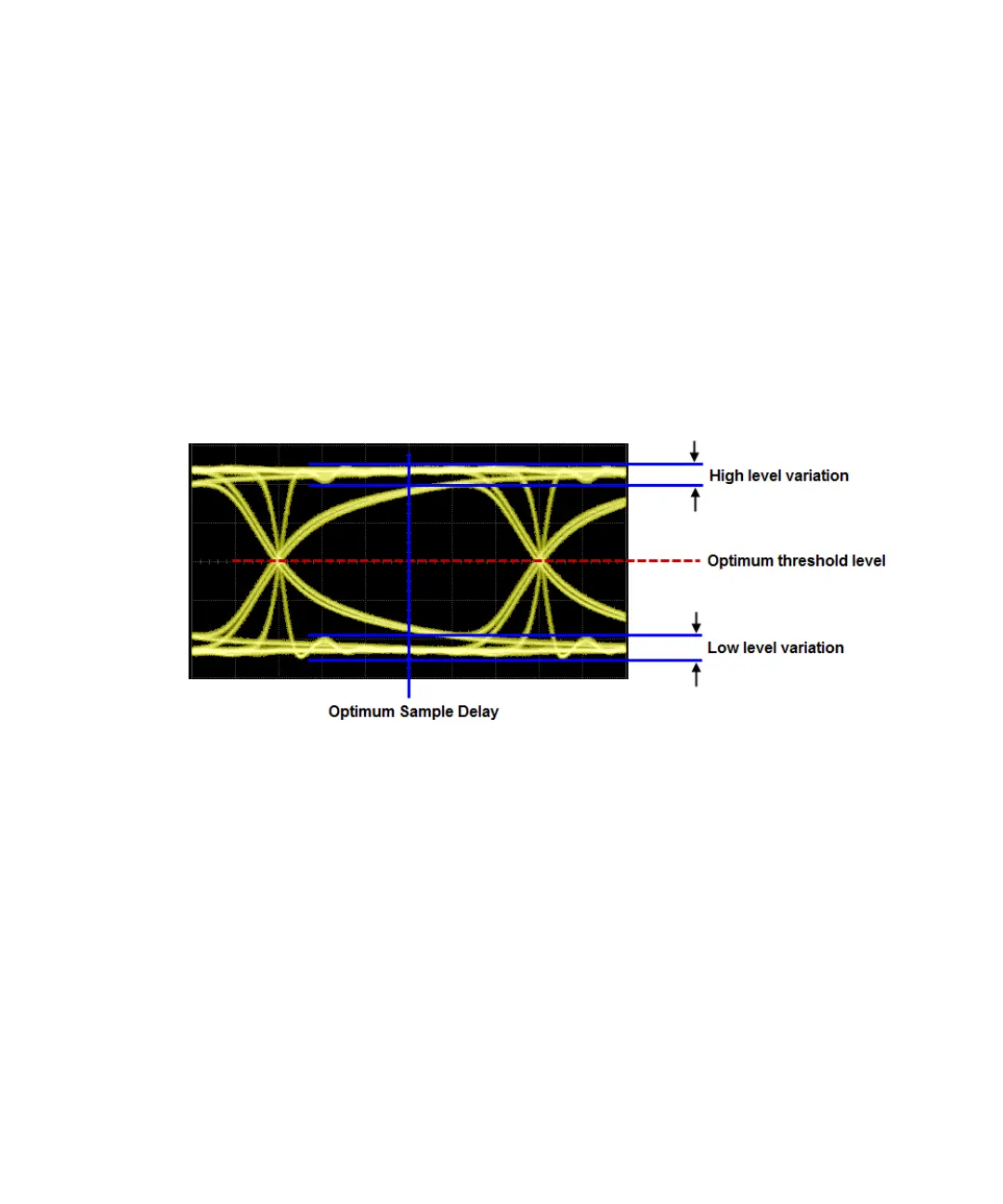

A direct result is the determination of the optimum decision threshold level
for receiving data from the DUT with maximum confidence.
Launching the Output Level Measurement
To launch the Output Level user interface:
•Go the Menu Bar > Measurements and then select Output Level.
The Output Level user interface will appear as shown in the following
figure:
