496 Keysight M8000 Series of BER Test Solutions User Guide
8 Working with Measurements

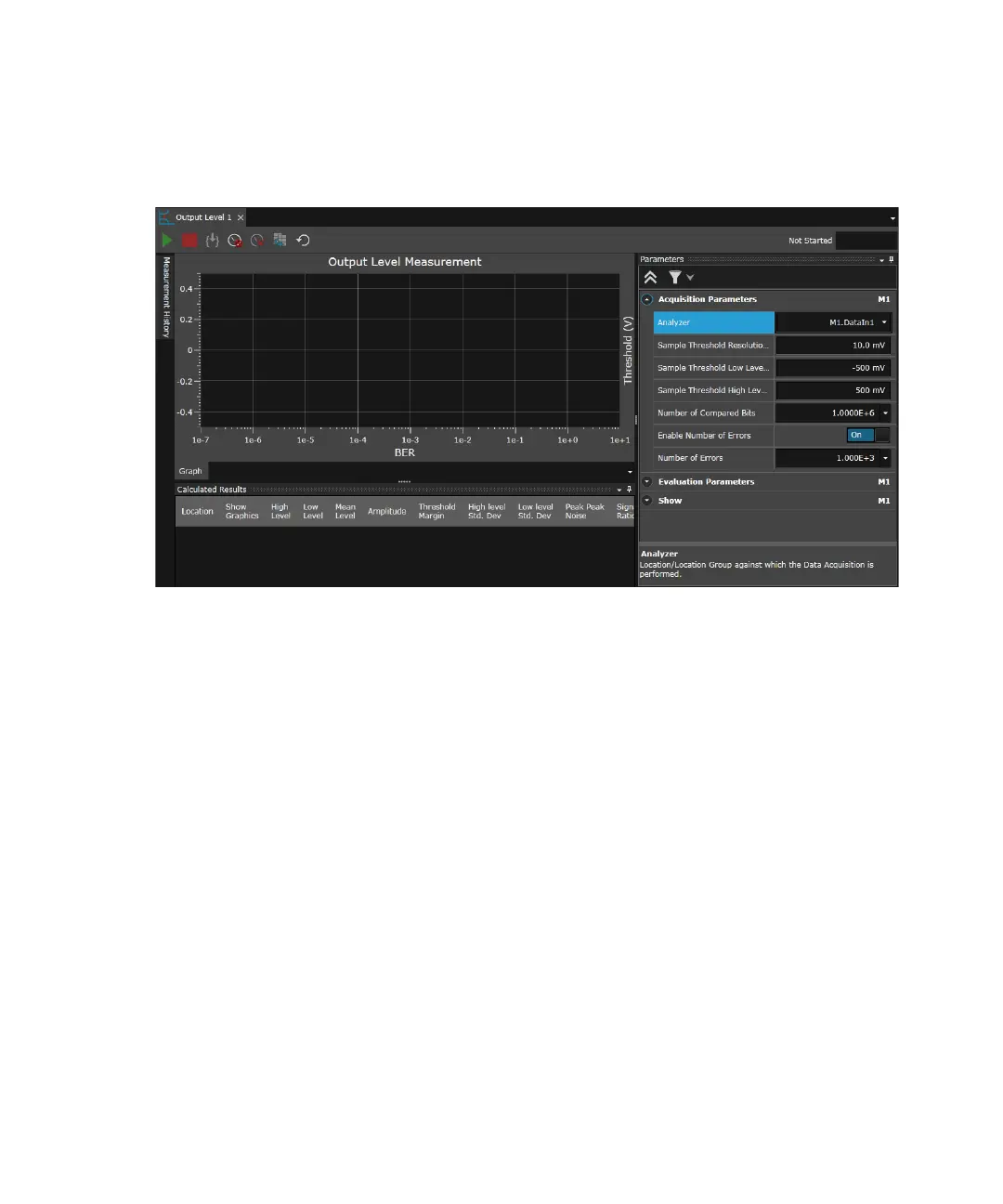

The Output Level user interface includes the following elements:
• Toolbar: For details, refer to Toolbar on page 462
• History Pane: For details, refer to Measurement History Window on
page 463.
• Measurement Graph: For details, refer to Measurement Graph on
page 490
• Parameters Window: For details, refer to Parameters Window on
page 496.
• Calculated Results: For details, refer to Calculated Results on
page 503.
Parameters Window
The Parameters window have the following acquisition, evaluation and
show parameters for output level measurement.
Acquisition Parameters
• Analyzer: Specifies location/location group against which data
acquisition is performed.
