User Interface - M8020A Display Views 4
Simultaneous Injection of CMSI and DMSI Using M819xA AWGs
The channels of M819xA AWG can be coupled to generate common mode
interference (CMI) and differential mode interference (DMI) on an output
signal. CMI/DMI is an extension of existing sinusoidal interference.
Follow the given steps to generate multi-tone CMI/DMI on the output
signals:

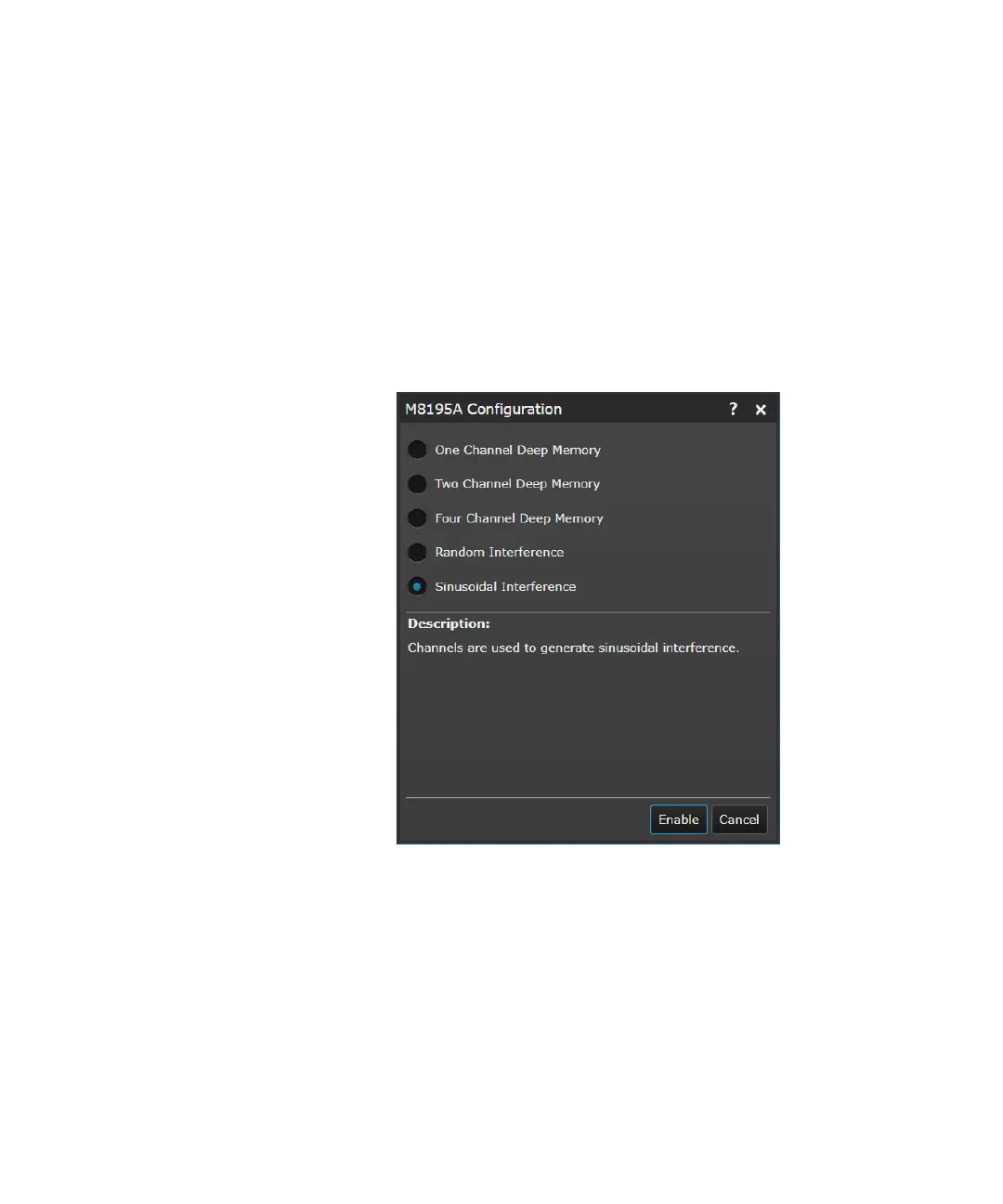

1 In the M819xA Configuration dialog, select Sinusoidal Interference
and then click Enable.
For more information on Configuration dialog, see M819xA
Configuration on page 204.
2 Set the parameters to generate multi-tone CMI/DMI. For details on
parameters, see M819xA AWG CMSI and DMSI Parameters on
page 210.
