User Interface - M8020A Display Views 4
System View with M8062A Integration
This section describes the block diagrams provided by the System View
when M8062A is integrated with other modules of M8020A.
M8062A Configuration
The following steps describe the procedure for M8062A configuration:
• Launch the M8070A software.
•If the Modules View is not already opened, go to Menu Bar > System
and then click Module View.

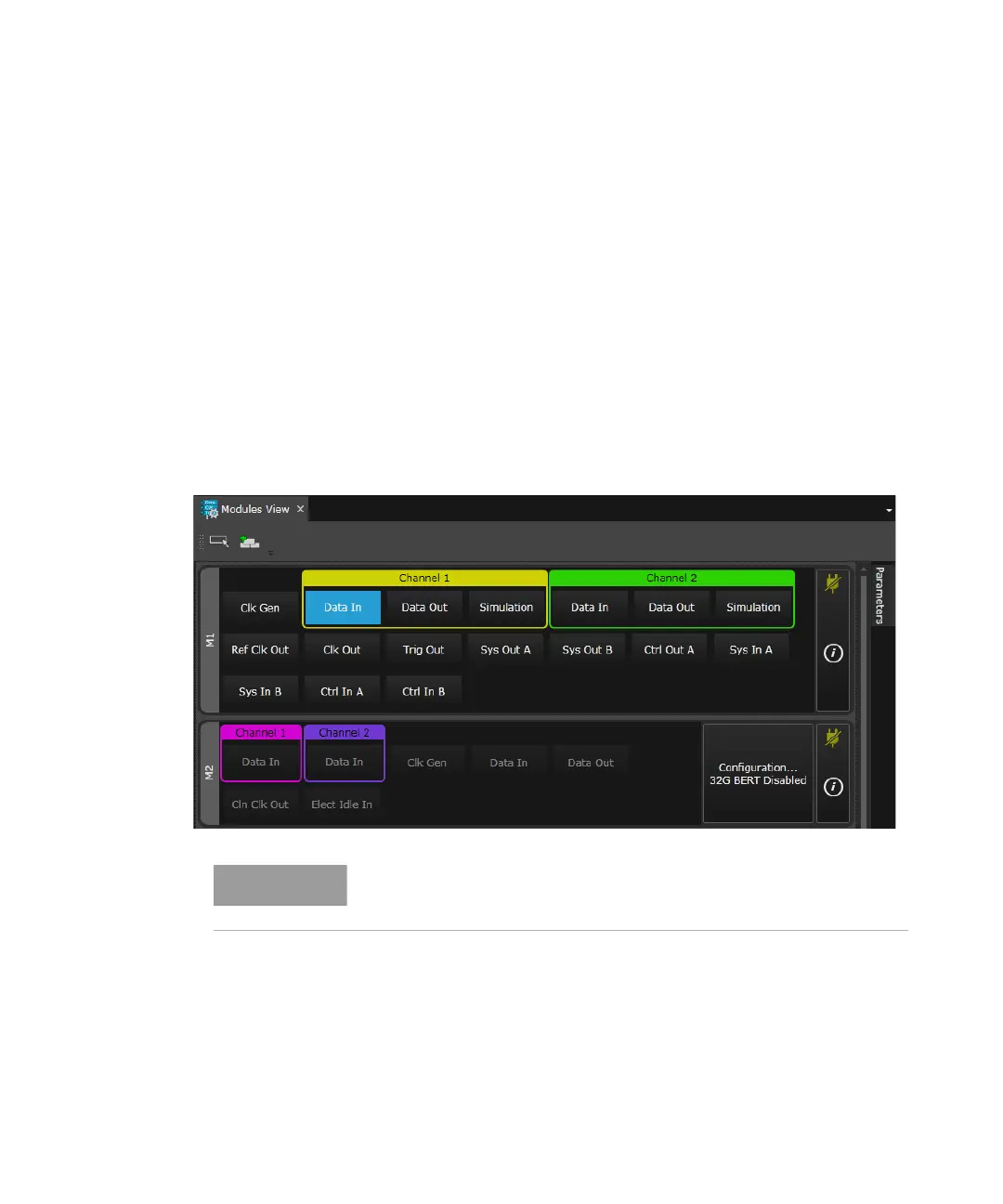

• Locate the M8062A module. The following figure shows an example of
Module View when an M8062A (M2) and an M8041A (M1) are installed in
the M8020A system:
•Click the Configuration... button present on the M8062A module.
The M8062A module cannot be used standalone. It must be used in
combination with an M8041A module.
