User Interface - M8020A Display Views 4
Setup View
The Setup View shows the block diagram of the pattern generator and
error detector to provide a simple overview of the most important
instrument settings at a glance.
How to Access the Setup View
The Setup View can be accessed on clicking the Setup View tab, once the
M8070A software is launched. It can also be accessed through Menu Bar.
Go to Menu Bar and then click System > Setup View. Please note that the
Setup View user interface is different for each system, depending upon

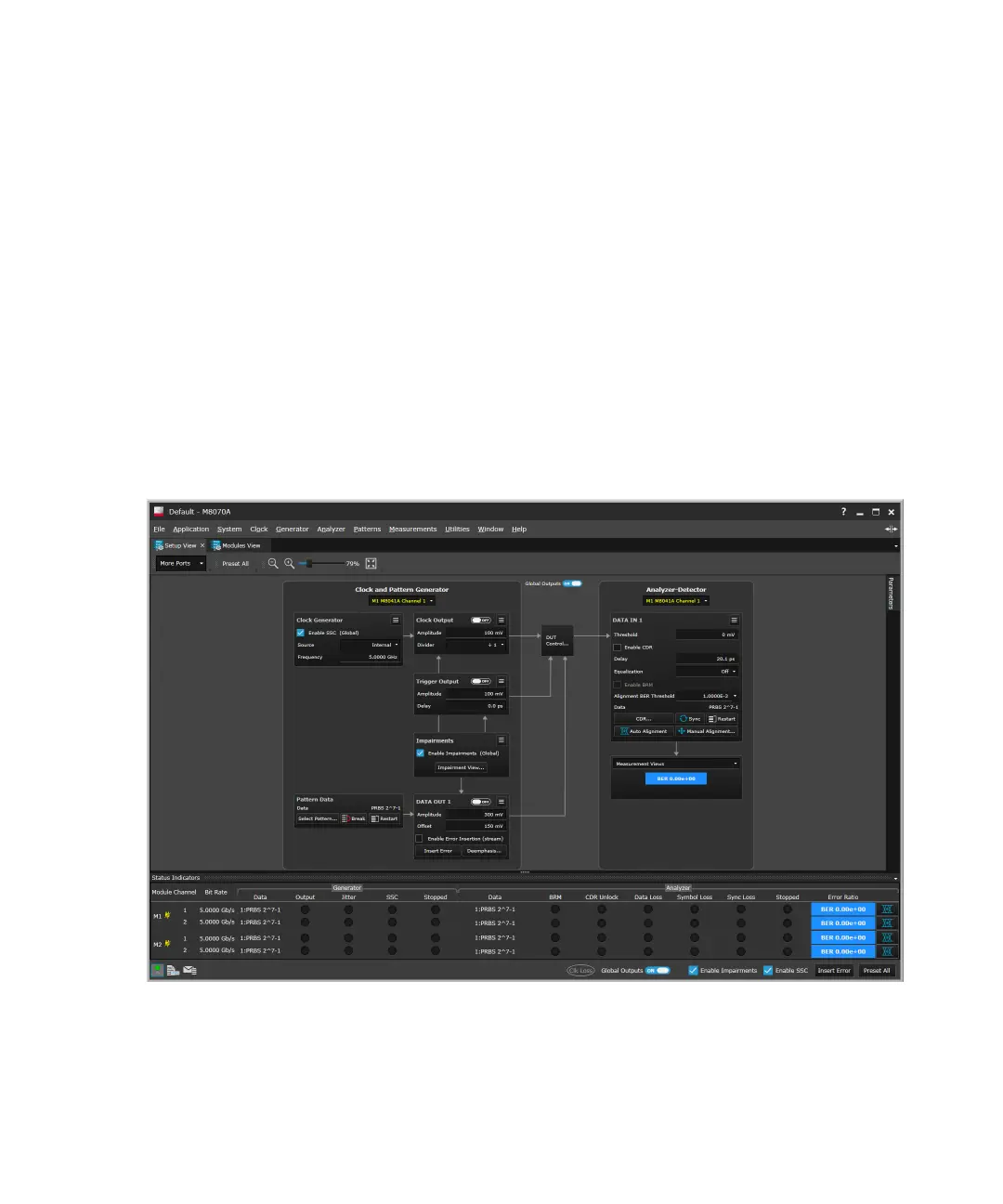

the connected modules. The following figure shows the Setup View for
M8020A system (M8041A and M8051A):
Similarly, you can access the Setup View for M8020A/M8030A/M8040A
system which can include M8041A, M8051A, M8061A, M8062A, M8045A,
M8046A, M8195A, M8196A, clock recovery and real-time oscilloscope that
can be controlled by M8070A.
