4 User Interface - M8020A Display Views
Understanding the System View

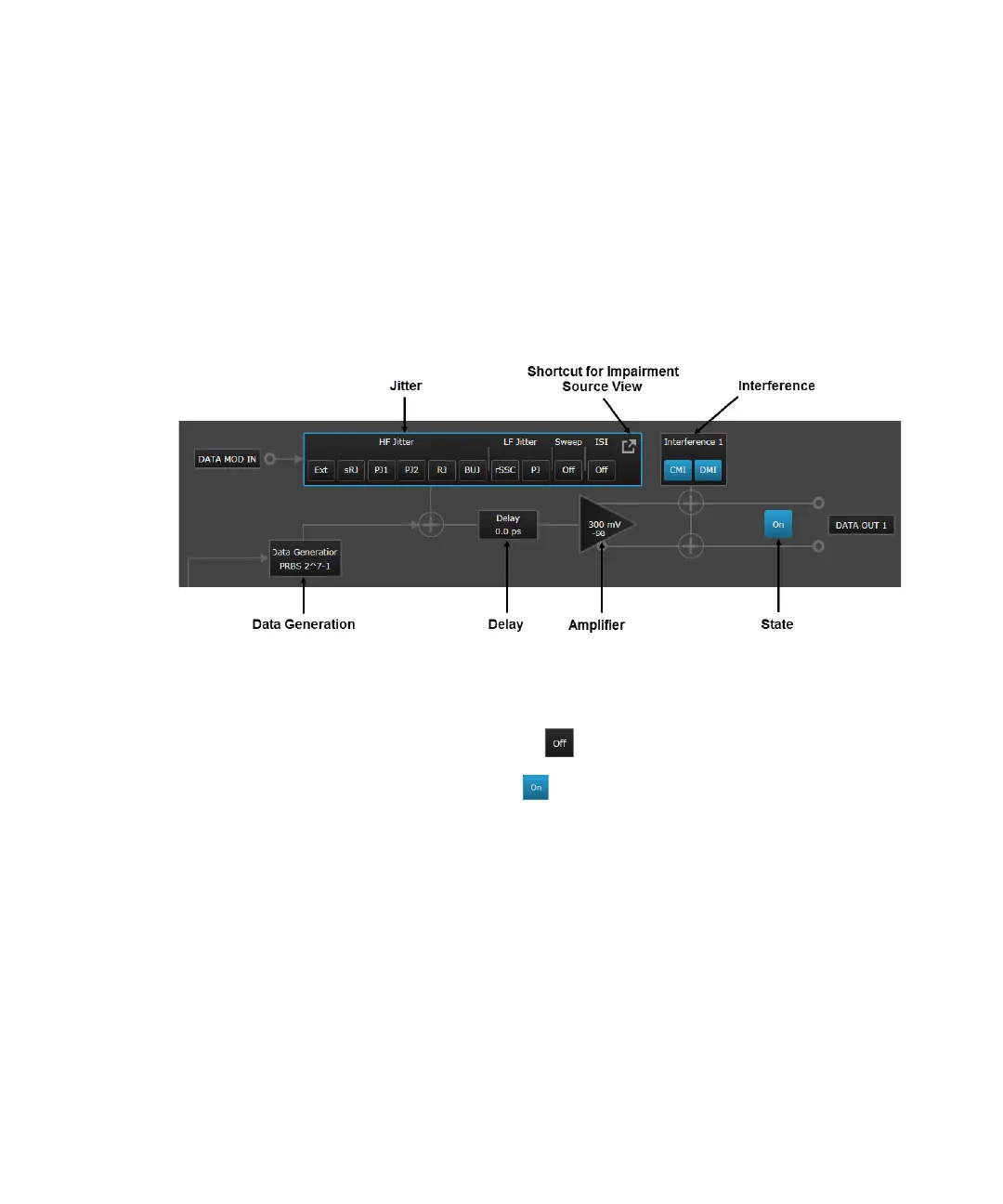

To understand the System View, let's divide it into the following sections:
Generator
The following section of the System View represents the generator
function:
It allows you to apply settings on the Data Out port or location (data
generator).
It includes the following blocks:
• State - Click on the button to enable the outputs of Data Out for
the selected channel. Once the outputs are enabled, the button
changes to “ON” . If you press the button again, it will turn the state
“OFF”.
• Jitter - Use this block to enable the jitter source of High Frequency
Jitter, Low Frequency and Sweep. For more details on jitter, refer to
Jitter Setup on page 296.
• Intersymbol Interference - Use this option to enable/disable ISI
feature.
• Shortcut for Impairment Setup View - Use this shortcut to access the
Impairment Setup View. For more details, refer to Impairment Setup
View on page 175.
• Interference - Use this block to enable the interference (CMI or DMI).
For details refer to Interference on page 294.
