312 Keysight M8000 Series of BER Test Solutions User Guide
6 Setting up Analyzer
Data In Port Termination
To ensure a valid setup and to protect the devices from damage, proper
termination must be specified for both Data In connections. You can
specify the termination by entering the termination voltage in the
respective field.
Why Can Wrong Terminations Damage Your Device?
Choosing wrong terminations may cause your device to output voltage
levels that are not as expected. It may also cause excessive current or
current flow in the wrong direction, which can damage your device.

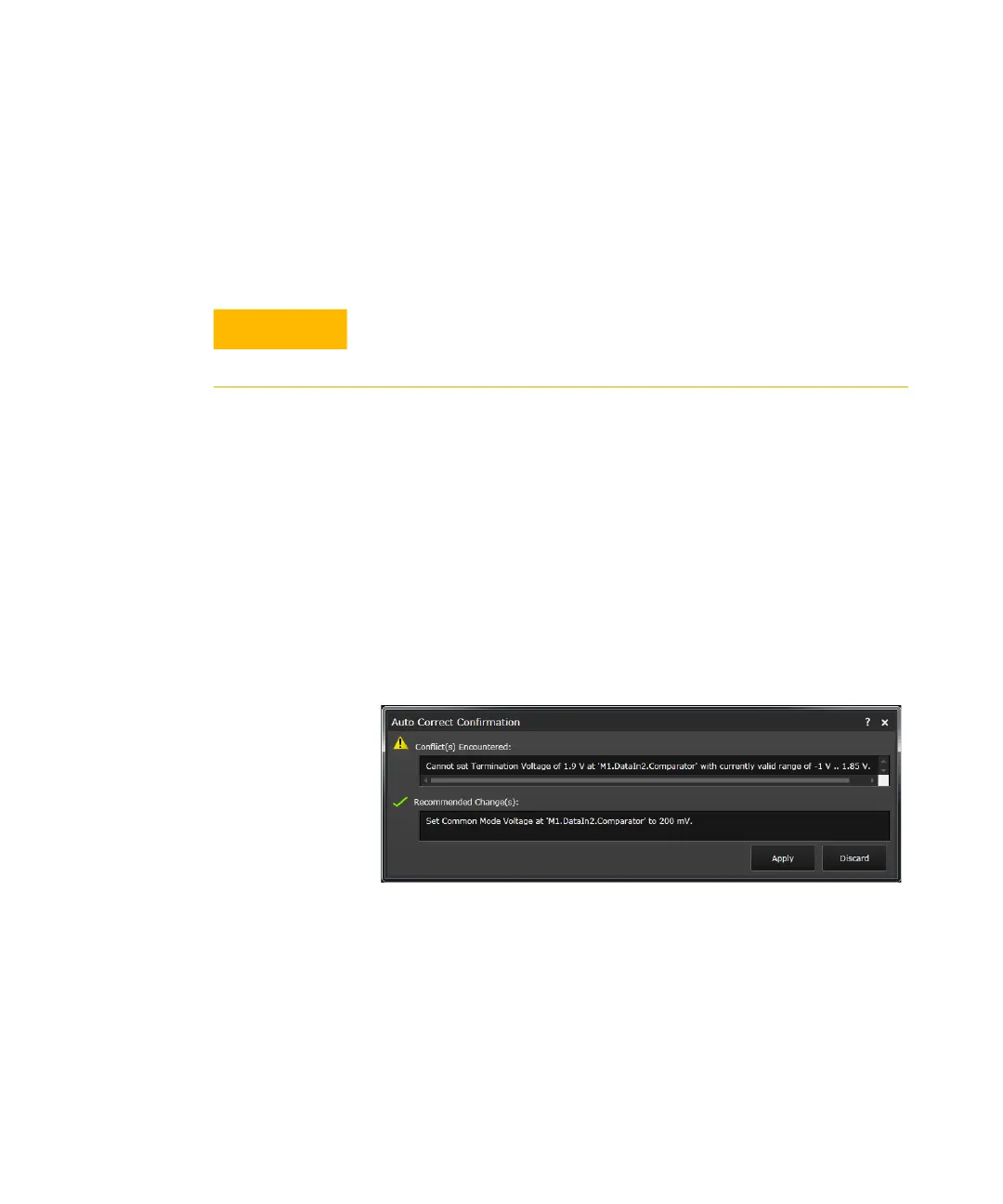

If you adjust the termination voltage, and try to enter value(s) which are
outside of the currently allowed window, the Auto Correction Confirmation
message box will pop up with respective apply and discard options as
shown in the following figure:
Selecting the wrong termination may damage your device.
