Keysight M8000 Series of BER Test Solutions User Guide 487
Working with Measurements 8
Launching the Output Timing Measurement
To launch the Output Timing user interface:
•Go the Menu Bar > Measurements and then select Output Timing.

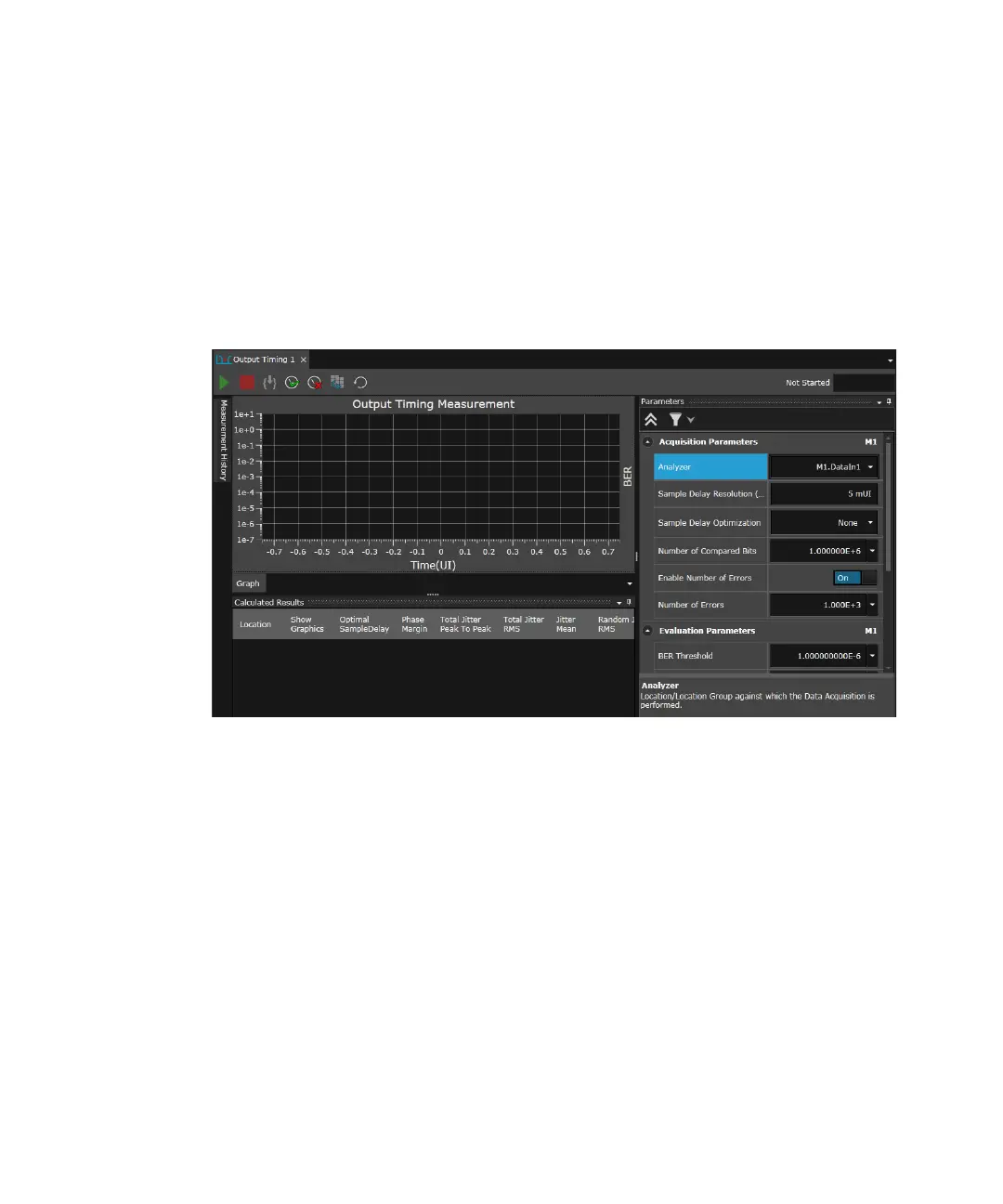

The Output Timing user interface will appear as shown in the following
figure:
The Output Timing user interface includes the following elements:
• Toolbar: For details, refer to Toolbar on page 462
• History Pane: For details, refer to Measurement History Window on
page 463.
• Measurement Graph: For details, refer to Measurement Graph on
page 490
• Parameters Window: For details, refer to Parameters Pane on
page 488.
• Calculated Results: For details, refer to Calculated Results on
page 491.
